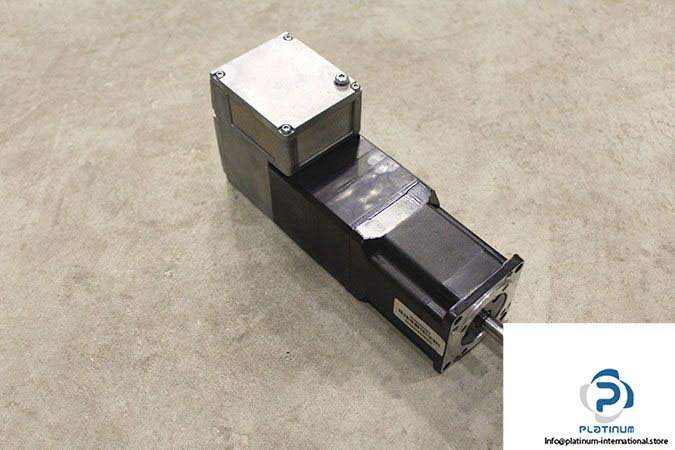

Schneider ILA2E572PB2A0 Integrated Drive ILA With Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Servo Motors

Model: ILA2E572PB2A0

Part No.: IFAN62/3ETCISDS/5DM-B54/O-001RPP4



Peak Stall Torque [Nm]: 1.62

Continuous Stall Torque [Nm]: 0.78

Supply Voltage [V]: 48

Max Current [A]: 6.4

Nominal Speed [rpm]: 3400

Nominal Torque [Nm]: 0.63

Number of Poles: 6

Length [mm]: 207.8

Flange Size [mm]: 57

Shaft Diameter [mm]: 9

Shaft Length [mm]: 20

Ambient Air Temperature [°C]: 40

Thermal Class: B

Weight [kg]: 1.85
