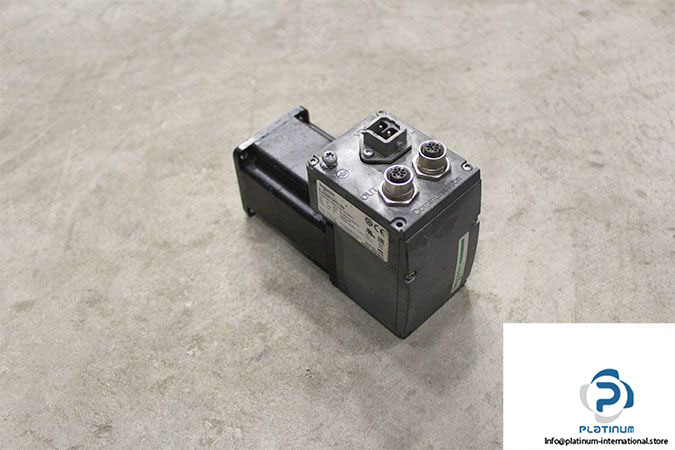

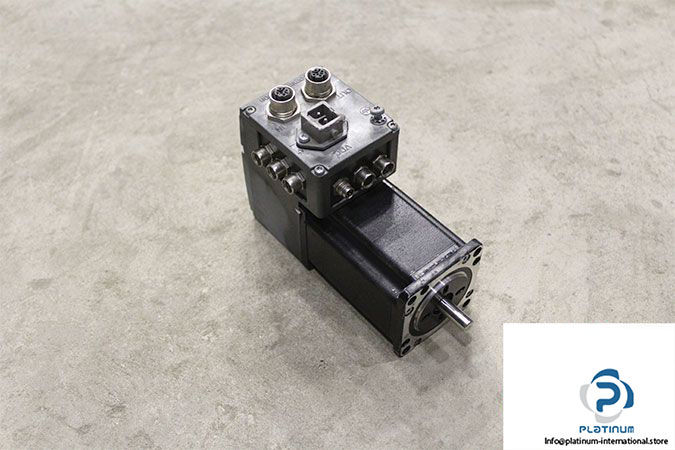

Schneider ILS2E573PC1A0 Integrated Drive ILS With Stepper Motor

Manufacturer: Schneider Electric, Elau

Type: Stepper Motors

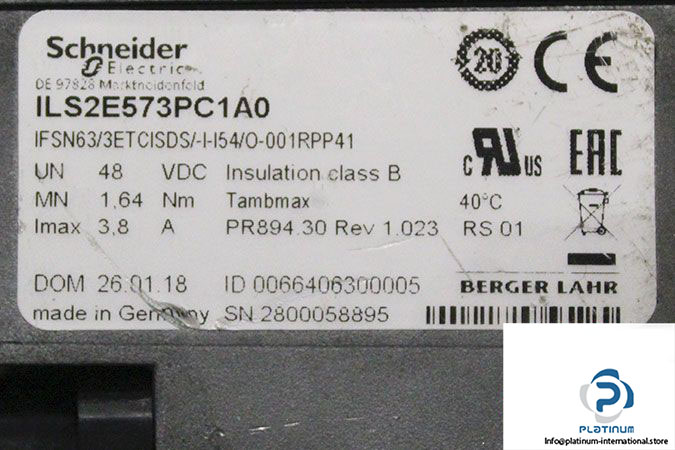

Model: ILS2E573PC1A0

Part No.: IFSN63/3ETCISDS/-I-I54/O-001RPP41

Peak Stall Torque [Nm]: 1.5

Continuous Stall Torque [Nm]: 1.5

Nominal Torque [Nm]: 1.64

Holding Torque [Nm]: 1.5

Max Current [A]: 3.8

Supply Voltage [VDC]: 48

Nominal Speed [rpm]: 600

Number of Poles: 6

Length [mm]: 138.9

Flange Size [mm]: 57

Shaft Diameter [mm]: 8

Shaft Length [mm]: 21

Ambient Temperature [°C]: 40

Thermal Class: B

Weight [kg]: 1.92
