Schneider Electric VIA1003C11F0000 Servo Motor

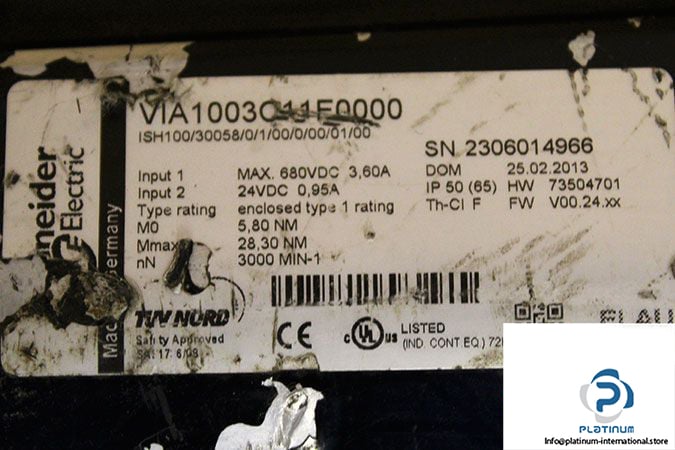

Manufacturer: ELAU – SCHNEIDER ELECTRIC

Type: SERVO MOTOR

Model: ISH100/30058/0/1/00/0/00/01/00

Art. No: VIA1003C11F0000

Input 1

Max. Voltage: 680 V DC

Max. Current (^Imax): 3.60 A

Input 2

Max. Voltage: 24 V DC

Max. Current (^Imax): 0.95 A



Type Rating: Enclosed Type 1 Rating

Normal Speed: 3000 Revolution Per Minute (rpm)

Max. Torque: 28.30 Nm

Nominal Torque: 5.80 Nm

Flange Size: 100 mm

Insulation Class: F

Protection Class: IP50 (65)

Weight: 8.30 kg
