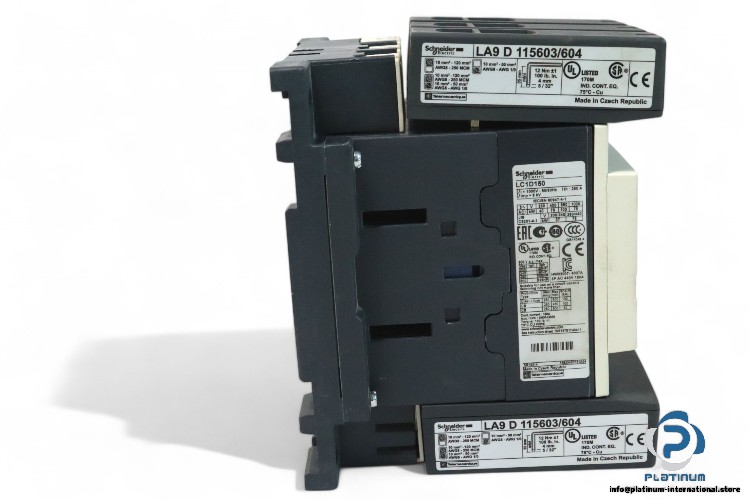

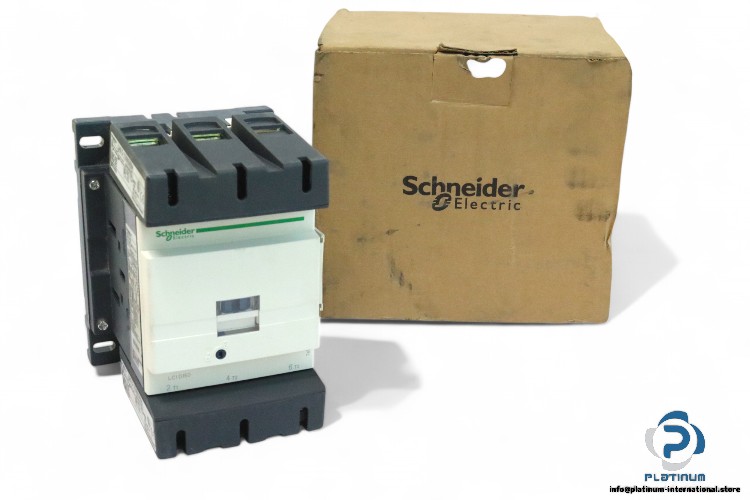

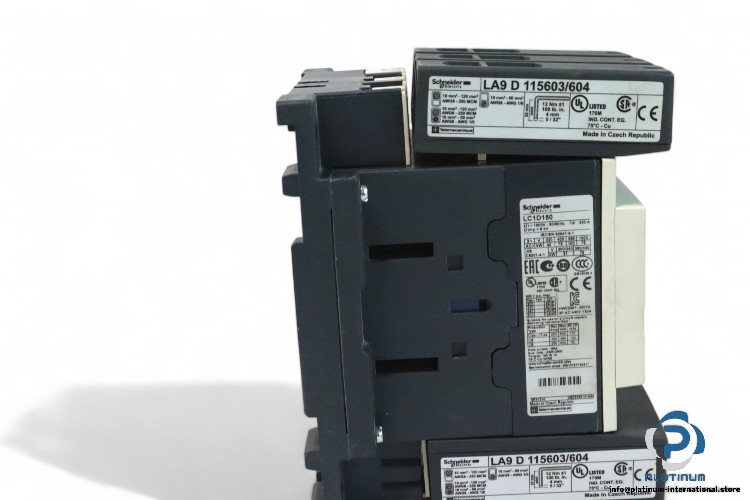

Schneider LC1 D150M7 Contactor

Manufacturer: SCHNEIDER
Type: CONTACTOR

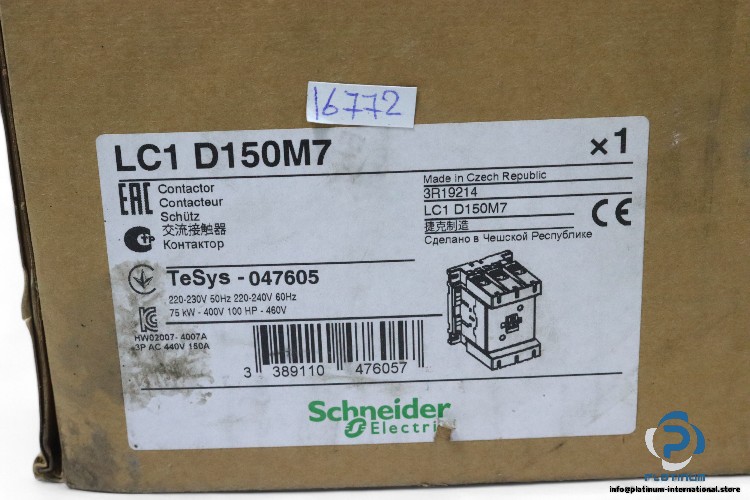

Model: LC1 D150M7

Contactor application: Motor control Resistive load
rated operational voltage (Ue):
Power circuit: 1000 V AC 25…400 Hz
Power circuit: 300 V DC
Control Circuit Voltage (Uc): 220 V AC 50/60 Hz
Pole contact composition: 3 NO
thermal Current (Ith): 200 A (at 60 °C) for power circuit
Pollution degree: 3
Rated Impulse Withstand Voltage (Uimp): 8 Kv
Auxiliary contact composition: 1 NO + 1 NC
Signalling circuit frequency: 25…400 Hz
Poles description: 3P
Insulation resistance: 10 MOhm for signalling circuit
Dimensions (H x W x D): 158 x 120 x 136 mm
