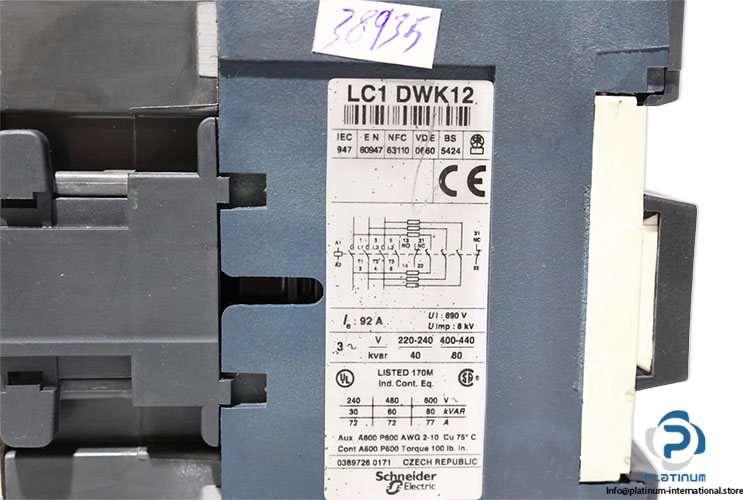

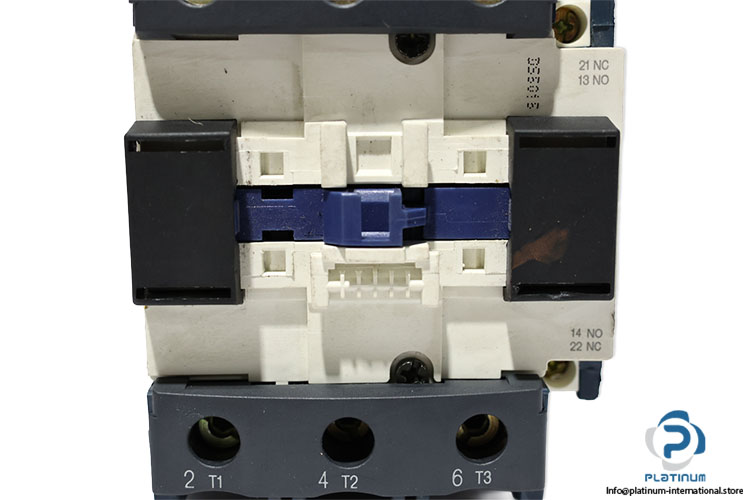

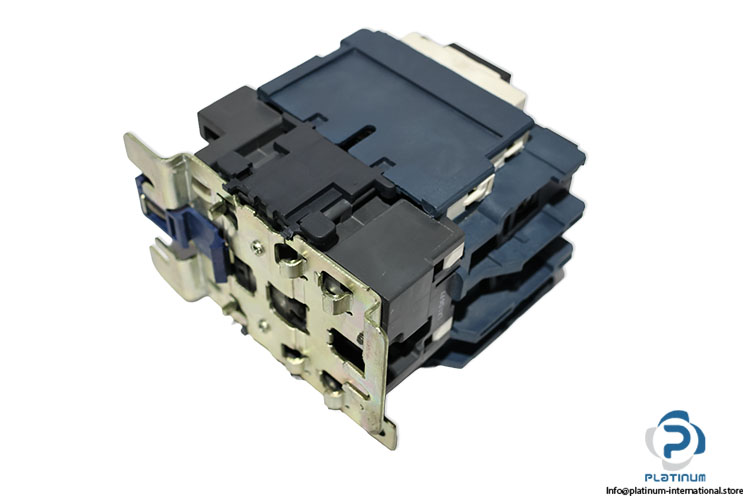

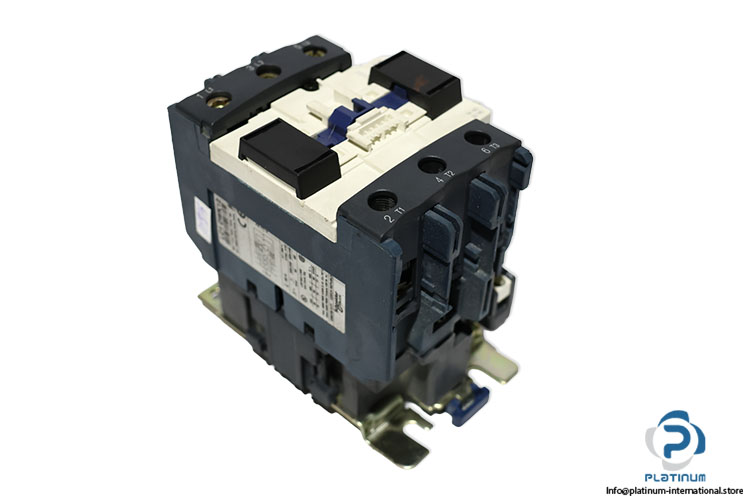

Schneider LC1 DWK12 Contactor
New
In stock1 unitReady to ship
Capacitor Contactor The Schneider LC1DWK12 is a TeSys Deca capacitor contactor with 3 NO power poles and 110 V AC control voltage, designed for reliable industrial switching and control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

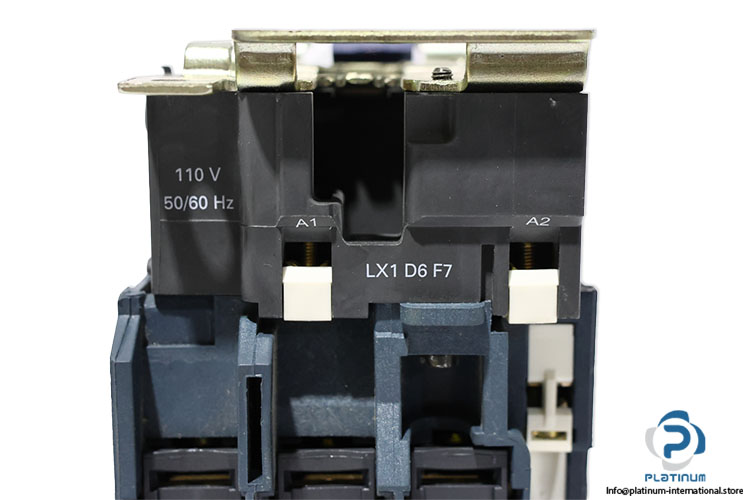

| Coil Model | LX1 D6 F7 |
| Range | TeSys |
| Range of product | TeSys Deca |
| Product or Component Type | Contactor |
| Device short name | LC1 DWK |
| power pole contact composition | 3 NO |
| Poles description | 3P |
| Control circuit voltage | 110 V AC, 50/60 Hz |
| Auxiliary contact composition | 1 NO + 2 NC instantaneous |
| Rated insulation voltage (Ui) | 690 V AC, 50/60 Hz |
| Rated impulse withstand voltage (Uimp) | 8 KV |
| Operating Temperature | -5 … +60 °C |
| Degree of Protection | IP20 |
| Dimensions | 180 x 154 x 85 mm |
| Standard | EN/IEC 60947-1,EN/IEC 60947-4-1,UL 60947-4-1,CSA C22.2 No 60947-4-1 |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100700 |
| Weight | 1,48 |
