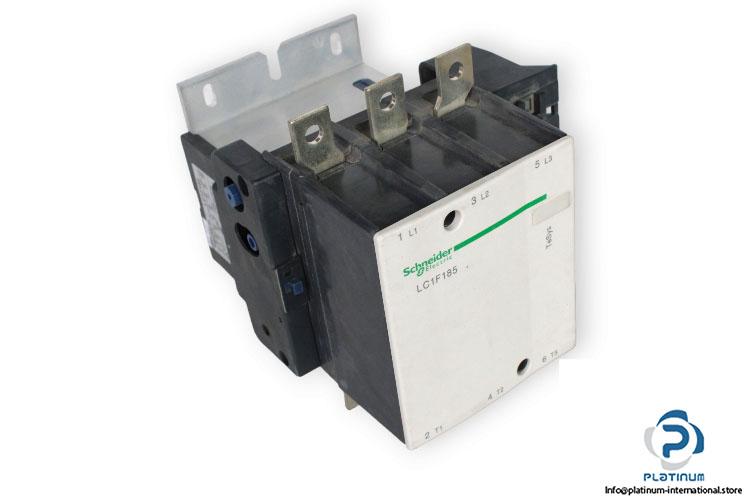

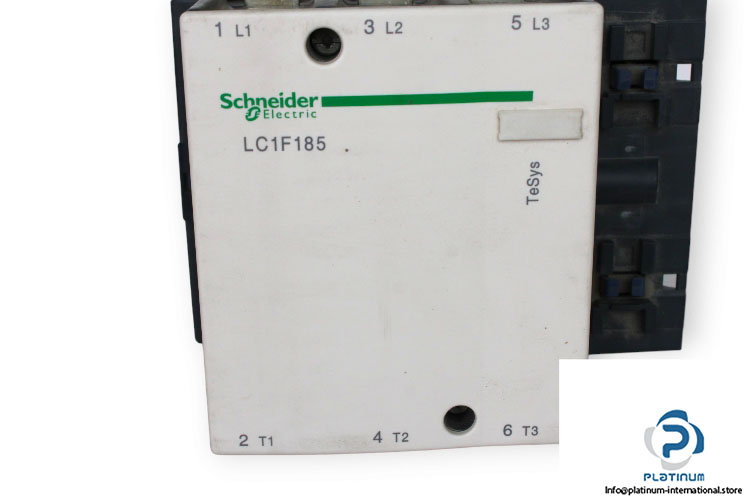

Schneider LC1F185 Contactor Body Without Coil
New
In stock1 unitReady to ship
Contactor Body Without Coil SCHNEIDER TELEMECANIQUE LC1F185 3-pole power contactor from the TeSys F range, rated for 275 A operation, 90 kW motor control, and supplied with an LX1FG380 contactor coil for industrial automation and power distribution applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Range | TeSys |
| Product name | TeSys F |
| No. of Poles | 3 |
| Rated Operation voltage Ue | 690 V AC 50/60 Hz, 460 V DC |
| Rated operational current @ 440 V | 275 A |
| Rated insulation voltage | 1000 V |
| Motor Power | 90 kW at 400 V AC 50/60 Hz (AC-3) |
| Rated impulse withstand voltage [Uimp] | 8 KV |
| Ambient air temperature for operation | –5 … 55°C |
| Mounting Support | Plate |
| Standards | IEC 60947-4-1/EN 60947-1/JIS C8201-4-1/EN 60947-4-1 |
| Height | 6.9 in (174 mm) |
| Width | 6.6 in (168.5 mm) |
| Depth | 7.1 in (181 mm) |
| Attached with | SCHNEIDER LX1FG380 contactor coil |
| [Uc] control circuit voltage | 380...400 V AC 50 Hz/460...480 V AC 60 Hz |
| Stock key | CON003 |
| Condition | New |
| SKU | 1020118 |
| Weight | 4,4 |
