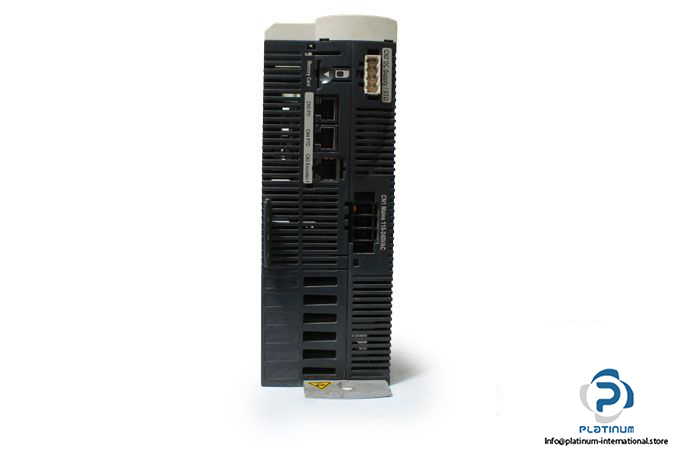

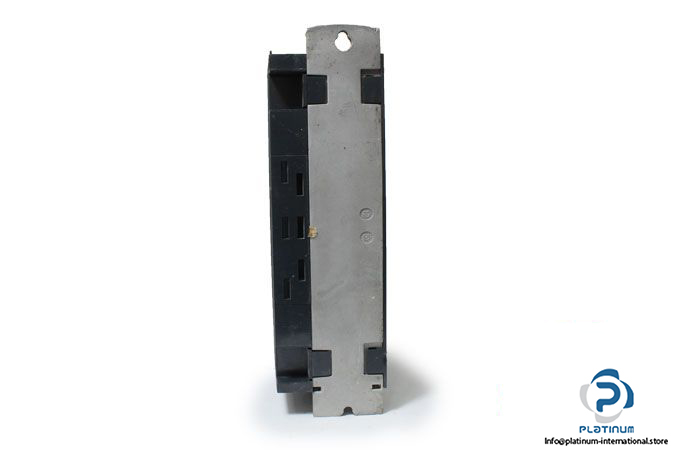

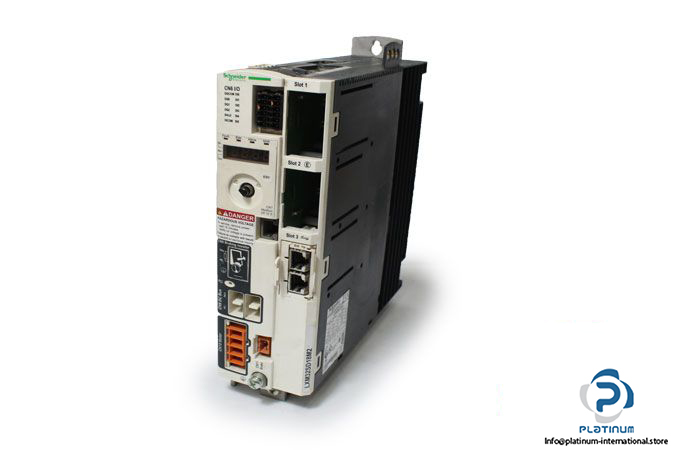

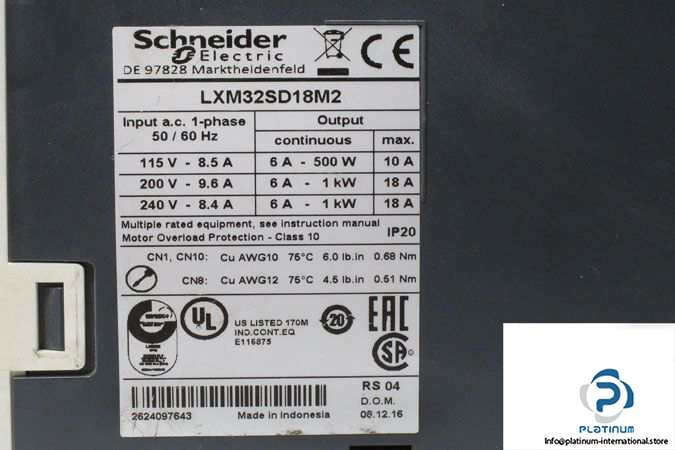

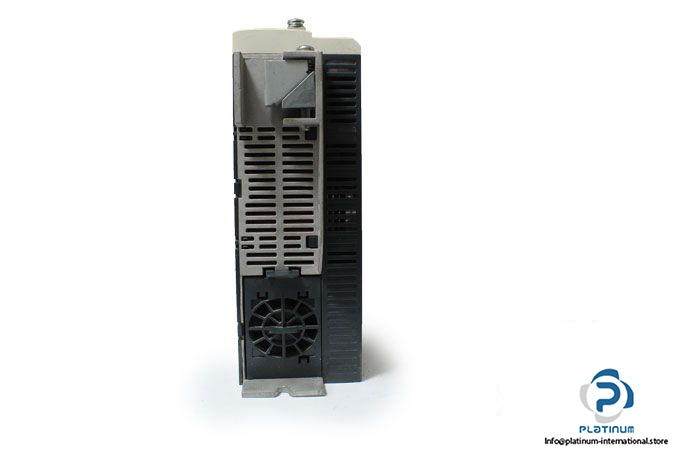

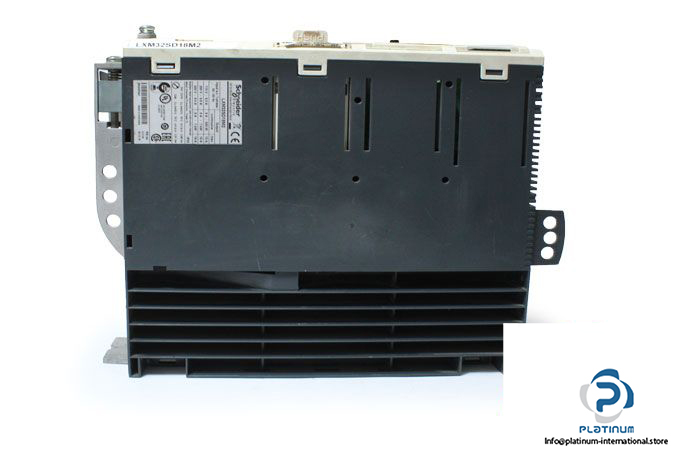

Schneider LXM32SD18M2 Motion Servo Drive

Manufacturer: SCHNEIDER

Type: MOTION SERVO DRIVE

Model: LXM32SD18M2

Rated Supply Voltage: 100 … 120 V / 200 … 240 V

Supply Voltage Limits: 85 … 132 V / 170 … 264 V

Switching Frequency: 8 kHz

Maximum Continuous Power: 0.5 KW at 115 V

Tightening Torque: PA/+, PBI, PBe: 0.5 N.m

Maximum Leakage Current: 30 mA

Electrical Isolation: Between power and control

Dimensions: 270 X 68 X 237 mm

Ambient Temperature: 0 … 50 °C

Protection Class: IP20

Weight: 1.9 Kg
