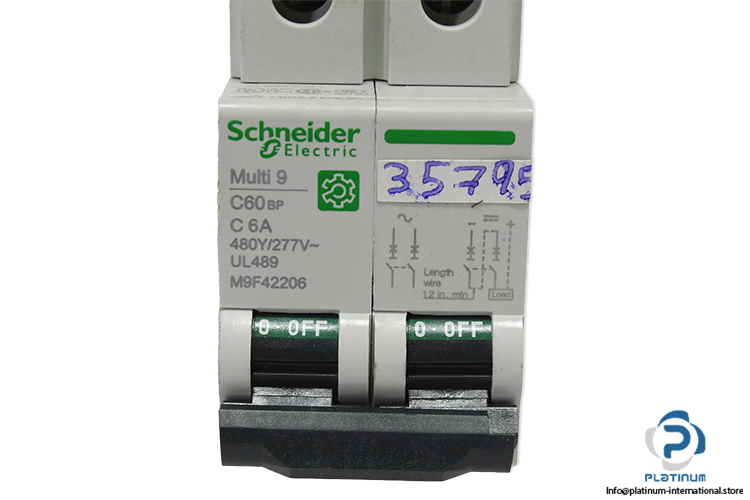

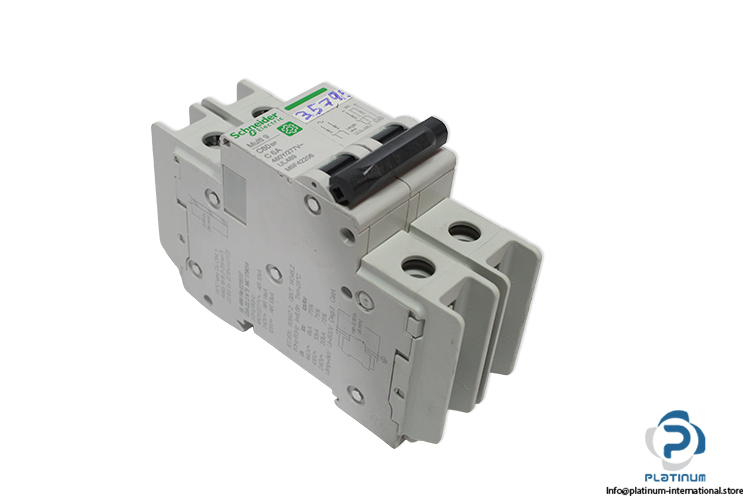

Schneider M9F42206 Miniature Circuit Breaker
Miniature Circuit Breaker
Schneider Electric Multi9 C60 M9F42206 2P miniature circuit breaker with thermal-magnetic trip, C curve, and high breaking capacity up to 20 kA for distribution systems.Schneider Electric M9F42206 Miniature Circuit Breaker
The Schneider Electric M9F42206 is a Multi9 C60 miniature circuit breaker designed for distribution applications. It features thermal-magnetic trip technology, high breaking capacity, and reliable ON/OFF indication, ensuring safe and efficient circuit protection in industrial and commercial electrical systems.
Manufacturer: Schneider Electric
Type: Miniature Circuit Breaker
Model: M9F42206

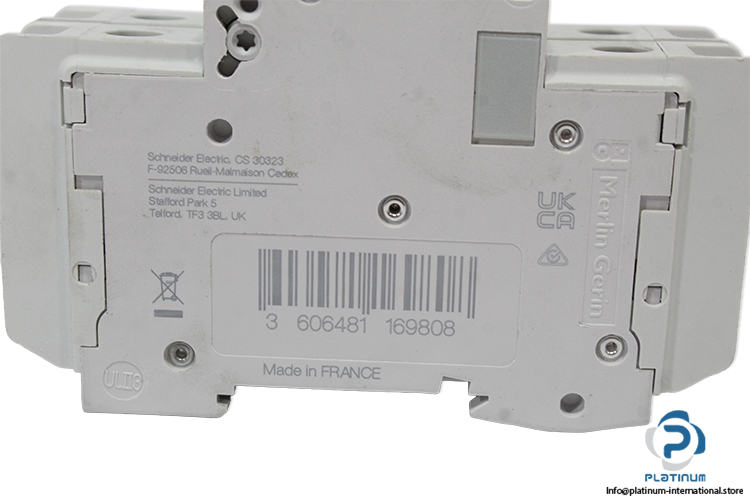

SN: 3 606481169808
Product Details
Range: Multi9
Product Name: Multi9 C60
Product or Component Type: Miniature Circuit-Breaker
Device Short Name: C60BP
Device Application: Distribution
Poles Description: 2P
Number of Protected Poles: 2
Trip Unit Technology: Thermal-Magnetic
Curve Code: C
Breaking Capacity:
6 kA Icu 440 V AC EN/IEC 60947-2
10 kA Icu 415 V AC EN/IEC 60947-2
20 kA Icu 240 V AC EN/IEC 60947-2

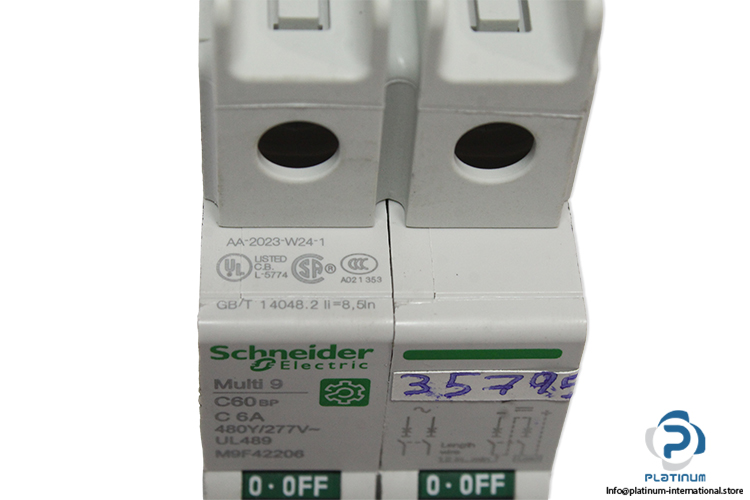

Standards:
EN/IEC 60947-2
GB 14048.2
UL 489
CSA C22.2 No 5
Product Certifications:
IEC
CCC
CSA
UL
Rated Operational Voltage [Ue]:
240 V AC 50/60 Hz
415 V AC 50/60 Hz
440 V AC 50/60 Hz
| Control Type | Toggle |
| Local Signalling | ON/OFF Indication |
| Mounting Mode | Clip-On |
| Mounting Support | DIN Rail |
| 9 mm Pitches | 4 |
| Height | 4.06 in (103 mm) |
| Width | 1.4 in (36 mm) |
| Depth | 2.8 in (72 mm) |
| Ambient Air Temperature For Operation | -30 / 70 °C |
