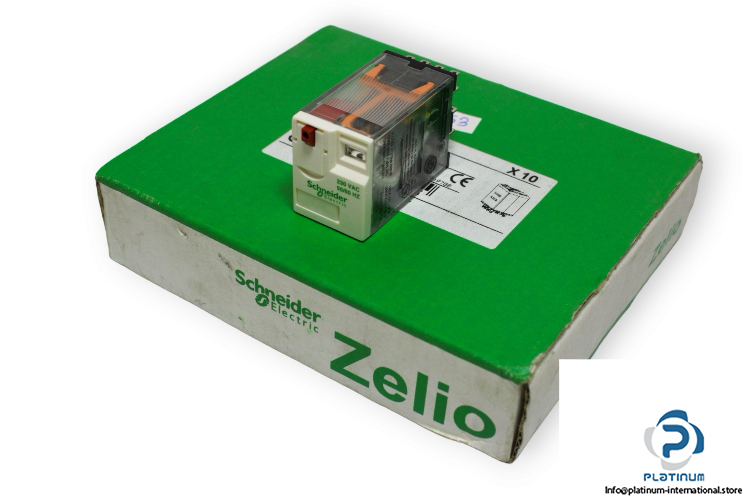

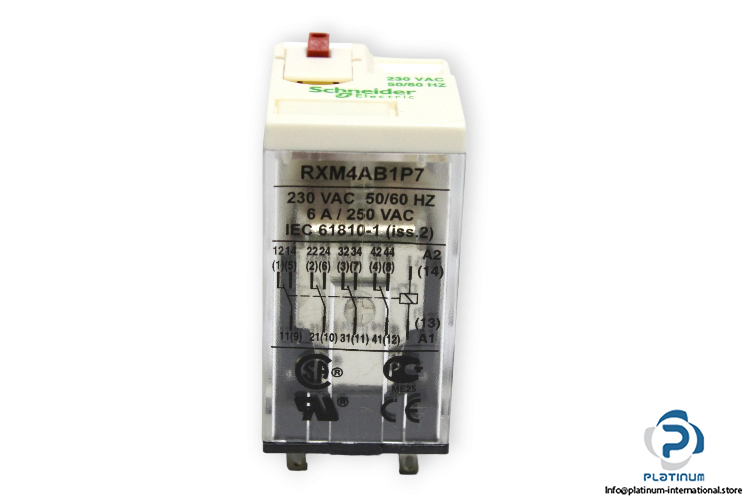

Schneider RXM4AB1P7 Miniature Plug IN Relay

Manufacturer: Schneider

Type: Miniature Plug in Relay

Model: RXM4AB1P7

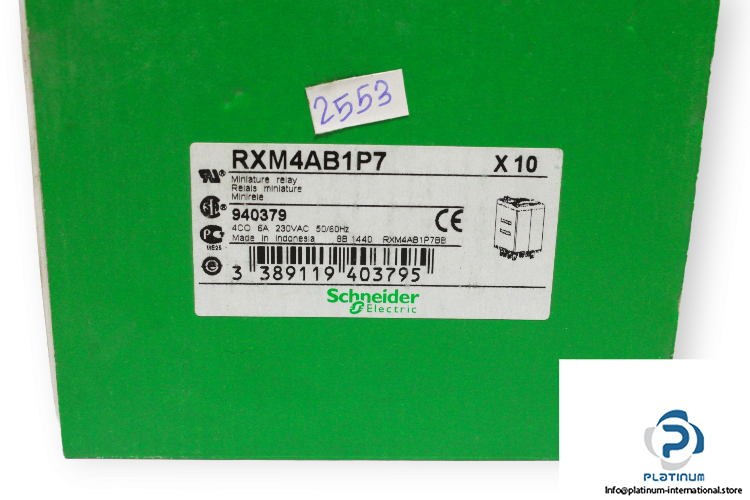

Part No: 940379

Control circuit voltage Uc: 230 V AC 50/60 Hz

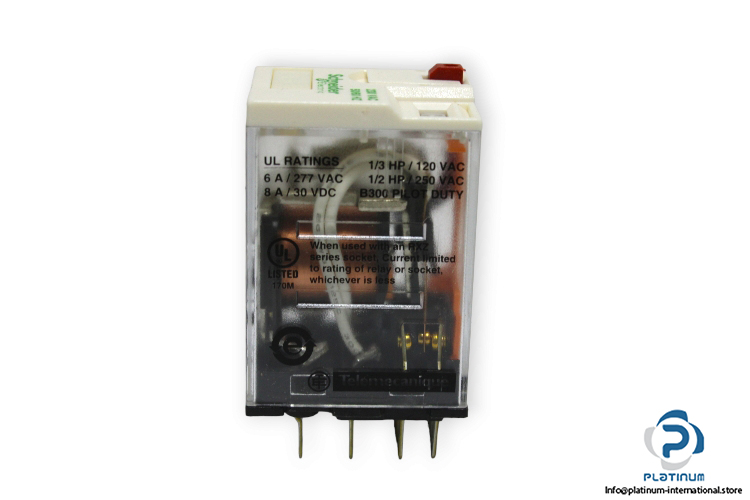

Rated operational current Ie: 6 A at 250 V (AC) NO conforming to IEC, 6 A at 277 V (AC) conforming to UL, 8 A at 28 V (DC) conforming to UL

Power in HP: 1/3 HP 120 VAC, ½ HP 277 VAC

Contacts type and composition: 4 Changeover contacts (Single pole double through)

Contacts material: AgNi

Operating Temperature: -40 … +55 °C

Degree of protection: IP40

Dimensions: 27 x 21 x 53.7 mm
