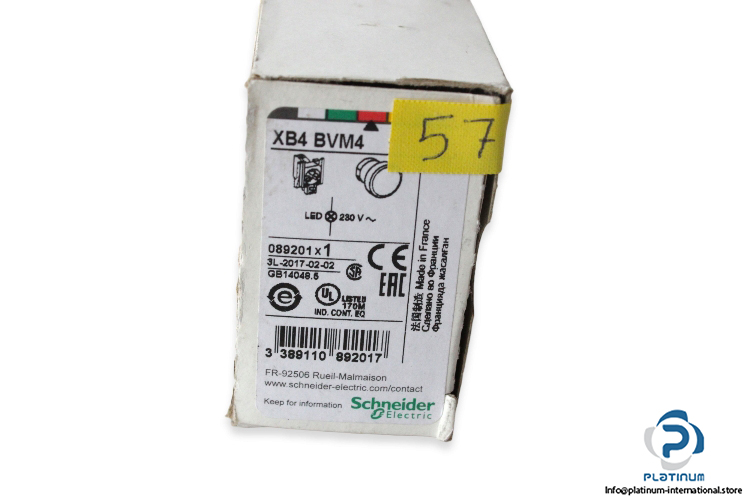

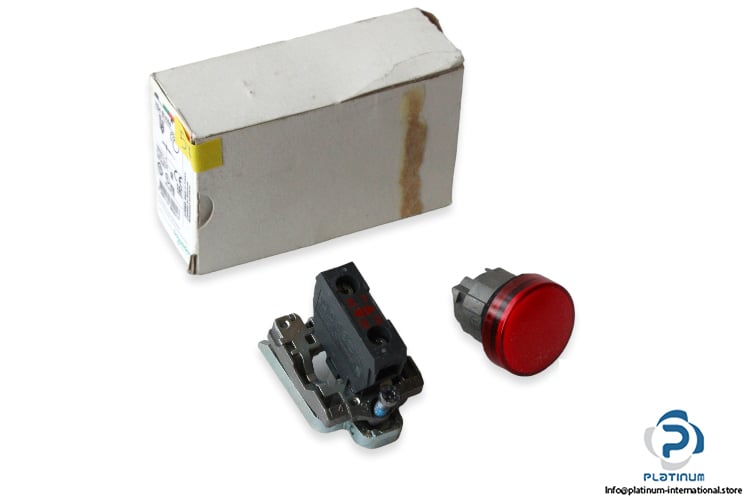

Schneider XB4 BVM4 Pilot Light

Manufacturer: SCHNEIDER

Type: Pilot Light

Device short name: XB4

Model: XB4 BVM4



Bezel material: Chromium plated metal

Fixing collar material: Zamak

Mounting diameter: 22 mm

Head type: Standard

Shape of signaling unit head: Round

Cap/operator or lens color: Red

light source: Universal LED

Bulb base: Integral LED

light source color: Red

[Us] rated supply voltage: 230…240 V AC 50/60 Hz

Supply voltage limits: 195…264 V AC

[Ui] rated insulation voltage: 250 V

Ambient Temperature: -40…70 °C

Connections – terminals: Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
