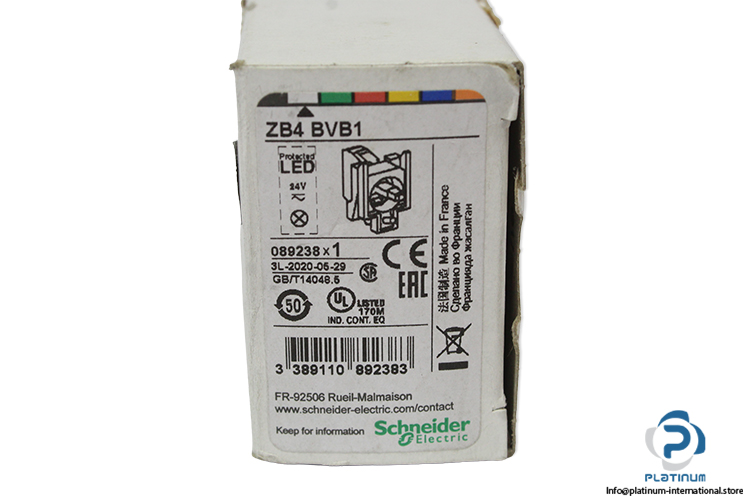

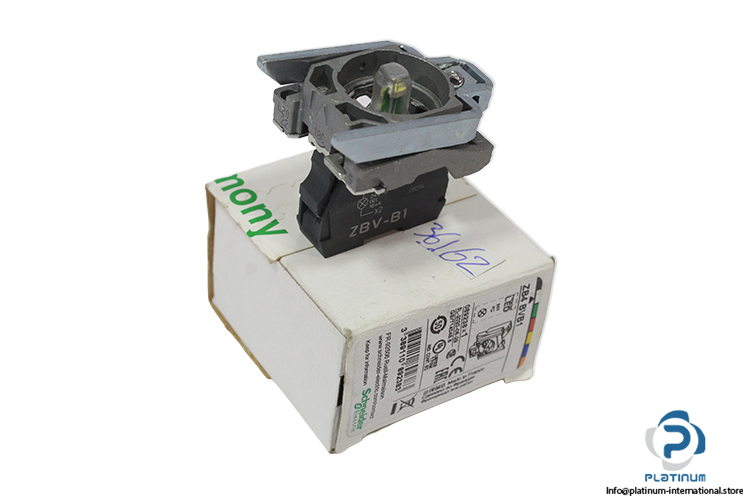

Schneider ZB4 BVB1 Complete Body/Light Block Assembly

In stock1 unitReady to ship

Complete Body/Light Block Assembly

SCHNEIDER ZB4BVB1 Harmony XB4 complete body and light block assembly with universal white LED, 24 V AC/DC supply, screw clamp terminals, and Zamak fixing collar.

Manufacturer
SCHNEIDER
SKU
1095706
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.089238
SN3389110892383
Range of productHarmony XB4
Product or component typeComplete body/light block assembly
Device short nameZB4
Fixing collar materialZamak
Connections – terminalsScrew clamp terminals, <= 2 x 1.5 mm² with cable end,Screw clamp terminals, >= 1 x 0.22 mm² without cable end
Light sourceUniversal LED
Light source colourWhite
[Us] rated supply voltage24 V AC/DC at 50/60 Hz
CAD overall width30 mm
CAD overall height47 mm
CAD overall depth37 mm
Terminals description ISO n°1(X1-X2)PL
Tightening torque0.8…1.2 N.m conforming to IEC 60947-1
Cross compatible with Philips no 1screwdriver
Slotted compatible with flat Ø5.5 mm screwdriver
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage6 kV
Supply voltage limits19.2…30 V DC/21.6…26.4 V AC
Ambient air temperature for operation-40…70 °C
StandardsIEC 60947-1/JIS C8201-5-1/IEC 60947-5-1/UL 508/CSA/C22.2 No 14/IEC 60947-5-5/IEC 60947-5-4/JIS C8201-1

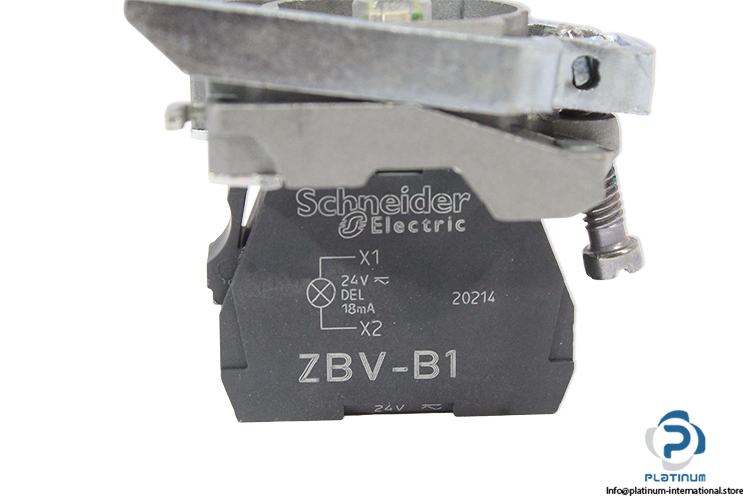

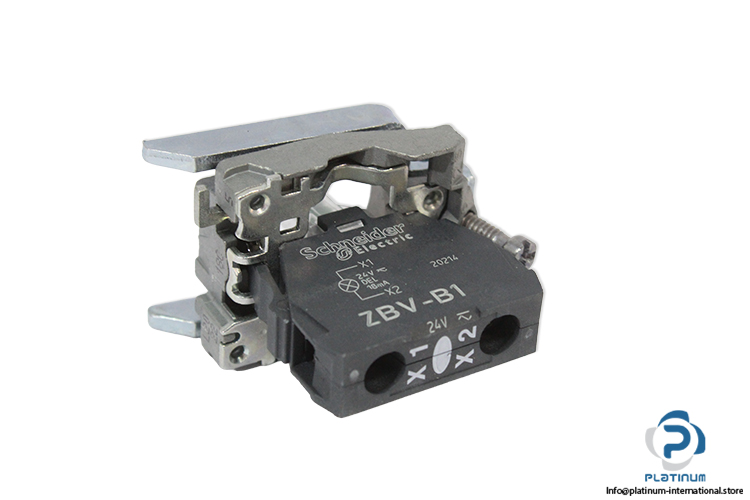

ATTACHED WITHSCHNEIDER ZBV-B1 LIGHT MODULE
ConditionNew
Stock KeyJO-004
