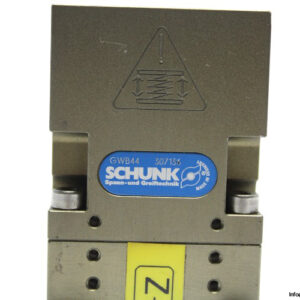

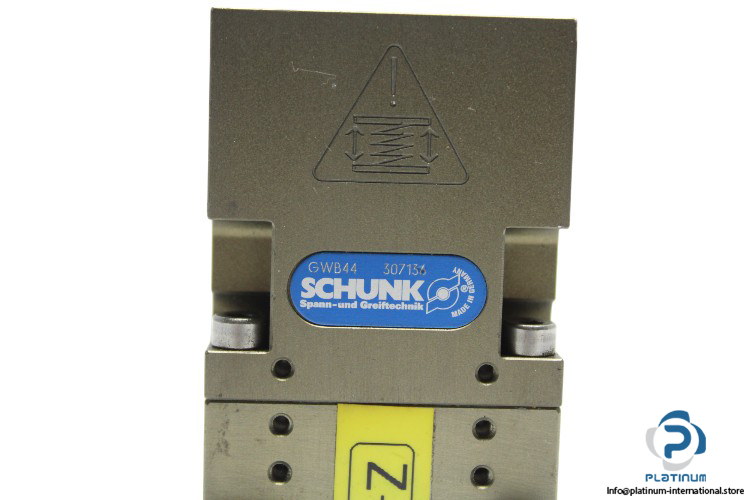

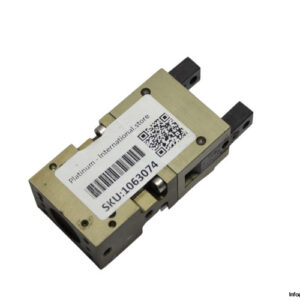

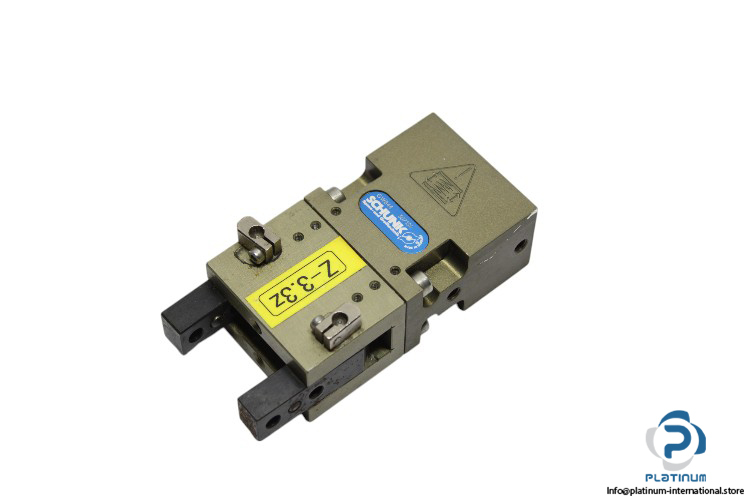

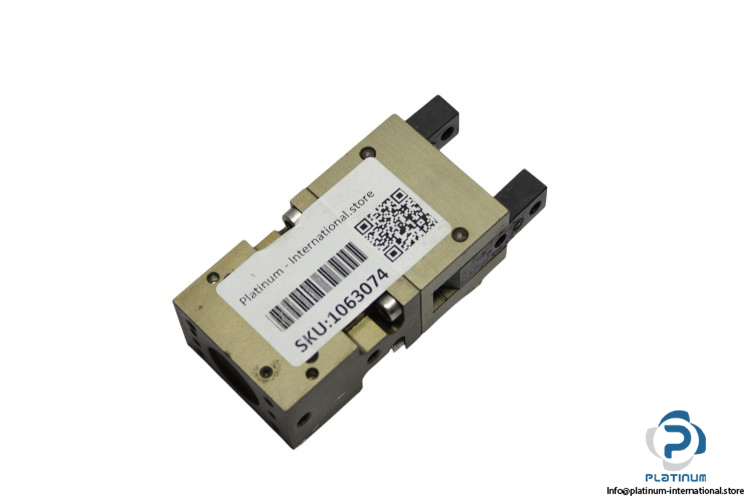

Schunk GWB44 Angular Gripper
The Schunk GWB44 Angular Gripper is a precision-engineered gripping solution designed for industrial automation and handling applications. Featuring a robust design with a controlled opening and closing mechanism, it ensures secure and efficient handling of workpieces.
Manufacturer: Schunk
Type: ANGULAR GRIPPER
Model: GWB44
Part No.: 307136
This angular gripper is optimized for precision and efficiency, making it an excellent choice for automated gripping tasks requiring fast and controlled motion.
| Opening Angle per Jaw | 90° |
| Opening Angle per Jaw up to | 2° |
| Closing Moment | 8.19 Nm |
| Closing Moment Ensured by Spring | 1.8 Nm |
| Recommended Workpiece Weight | 0.9 Kg |
| Air Consumption per Double Stroke | 16 cm³ |
| Nominal Pressure | 6 bar |
| Minimum Pressure | 4 bar |
| Closing Time | 0.4 s |
| Opening Time | 0.5 s |
| Max. Permitted Finger Length | 50 mm |
| Connection | 5 mm |
