Schunk PGS 100 Pneumatic Clamping Force Block
Used
In stock2 unitsReady to ship
Pneumatic Clamping Force Block
SCHUNK Pneumatic Clamping Force Block PGS 100 offers a 180° swivel angle, 15 Nm torque, and 4-way pneumatic energy transfer. It operates at 3-8 bar pressure with a passage bore diameter of 15 mm and a protection class of IP64, ideal for various industrial applications.1001515525004-WayAxialbearingBlockClampiClampingEnergyForceIndustrialLoadNNmPGSPneumaticradialSchunkSystemTransfer
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

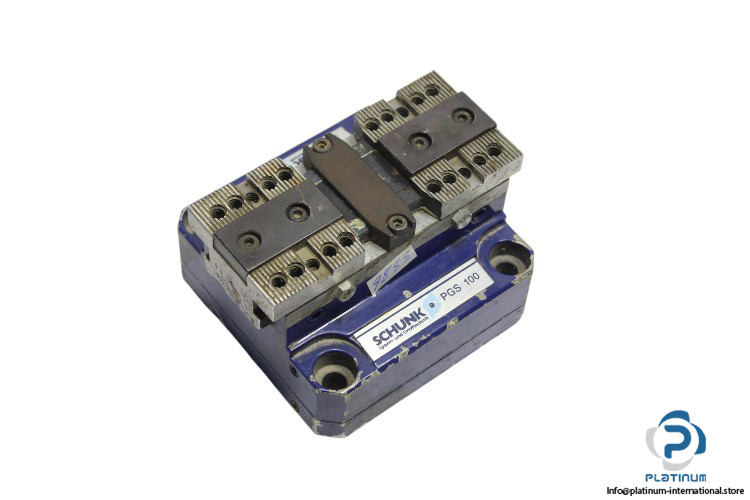

SCHUNK Pneumatic Clamping Force Block PGS 100
The SCHUNK Pneumatic Clamping Force Block PGS 100 is designed for high-performance clamping in industrial applications. With its robust design, this clamping force block offers efficient operation, featuring a 180° swivel angle and a 4-way pneumatic energy transfer for precision and reliability in various working conditions.
Manufacturer: SCHUNK

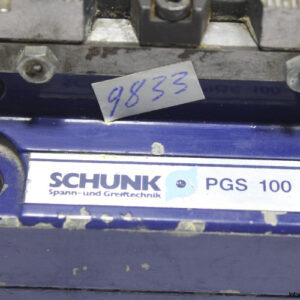

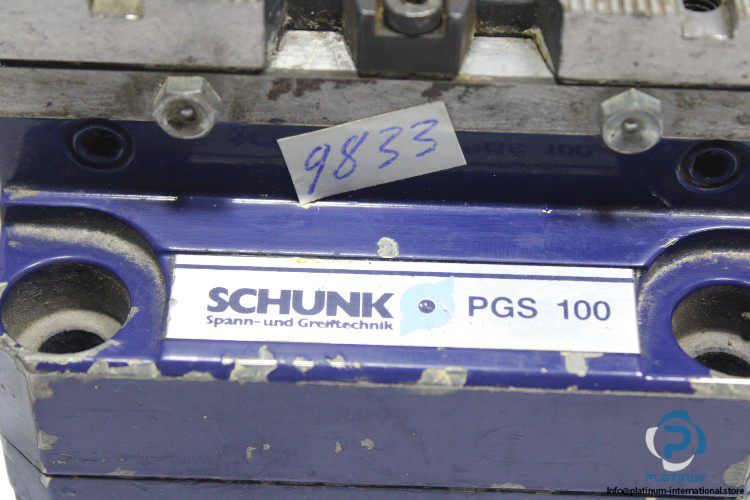

Model: PGS 100

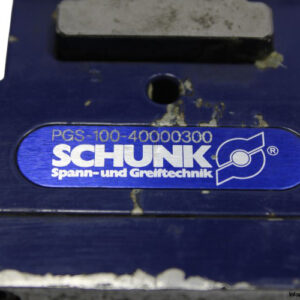

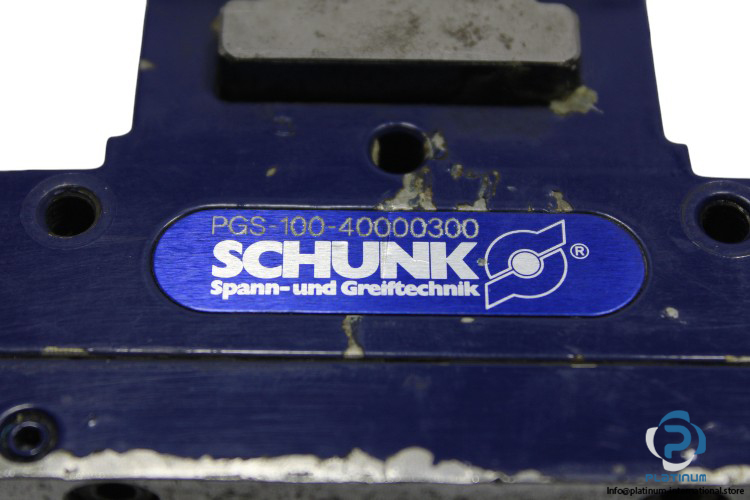

Part No.: PGS-100-40000300
Technical Specifications
- Swivel Angle: 180°
- Torque: 15 Nm
- Pneumatic Energy Transfer: 4-Way
- Operating Pressure: 3 / 8 bar
- Passage Bore Diameter: 15 mm
- Axial Bearing Load: 2500 N
- Radial Bearing Load: 155 N
- Air Volume Per Cycle: 206 cm3
- Connection: 6 mm
- Protection Class: IP64
- Operating Temperature: 5 / 80 °C
- Dimensions: 100 x 51.5 x 174 mm
