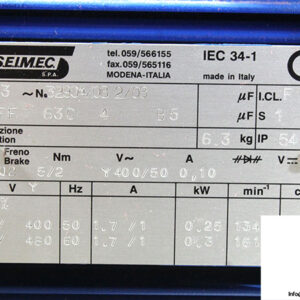

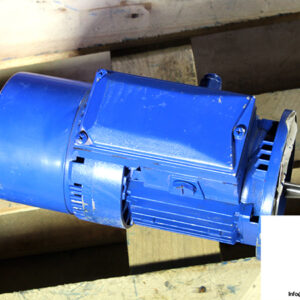

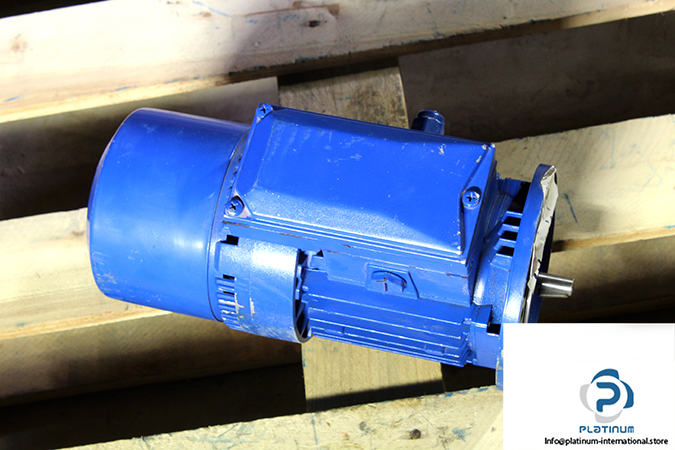

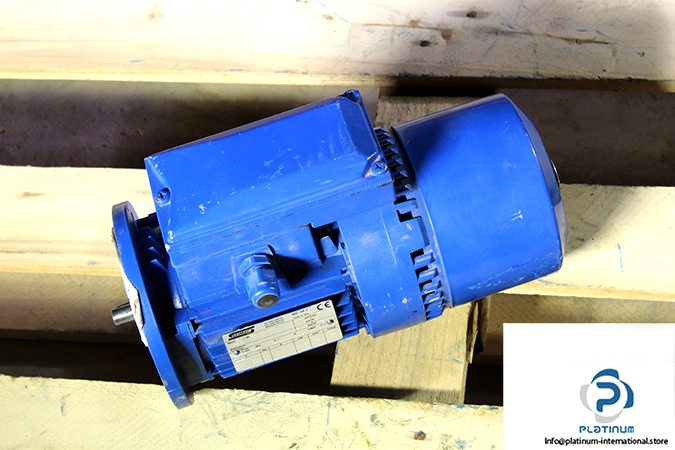

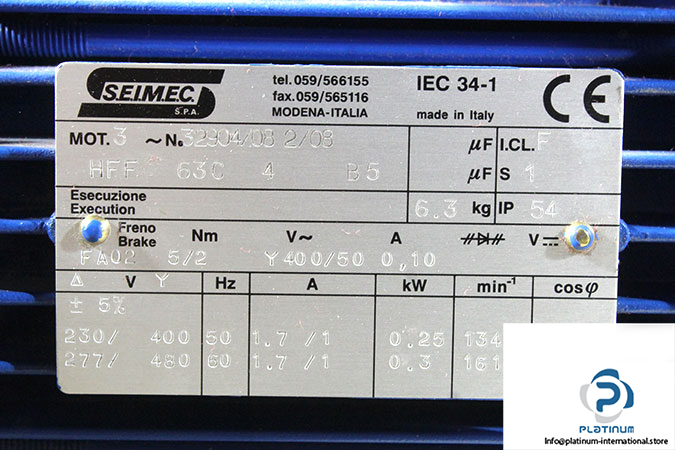

Seimec HFF 63C 4 B5 Brake Motor

Manufacturer: Seimec
Type: Brake Motors
Model: HFF63C4B5

Motor Speed [r/min]: 1340/1610
Motor Power [kW]: 0.25/0.3
Rated Voltage [V]: 230/277 Delta
Rated Voltage [V]: 400/480 Star
Nominal Current [A]: 1.7/1.0 Delta/Star
Motor Frequency [Hz]: 50/60
Cos Phi: 0.64
Thermal Class: F
Duty: S1
Protection Class [IP]: 54
Mounting Position [MI]: B5
Brake Model: FA02
Brake Torque [Nm]: 5/2
Brake Voltage [V]: 400/50
Brake Current [A]: 0.1
Weight [kg]: 7,8
