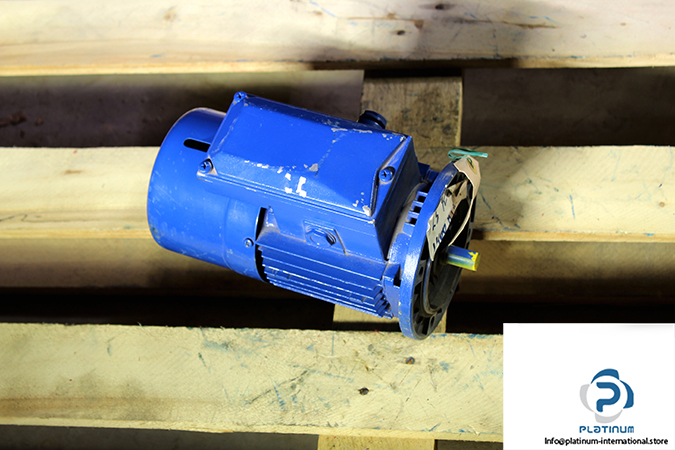

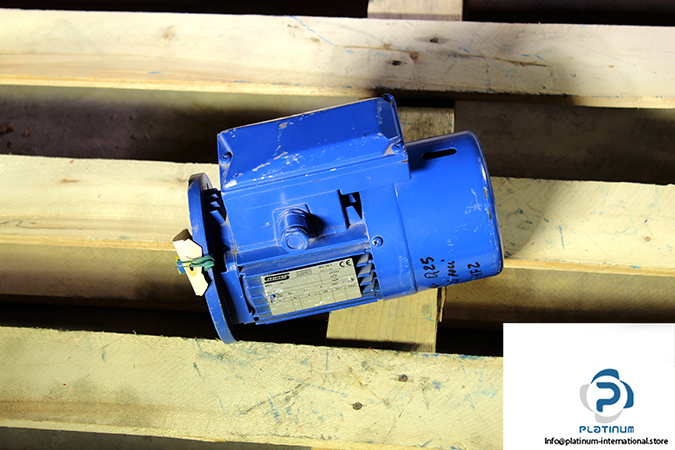

Seimec HFZ 63C 4 B5 Brake Motor
Manufacturer: Seimec
Type: Brake Motors

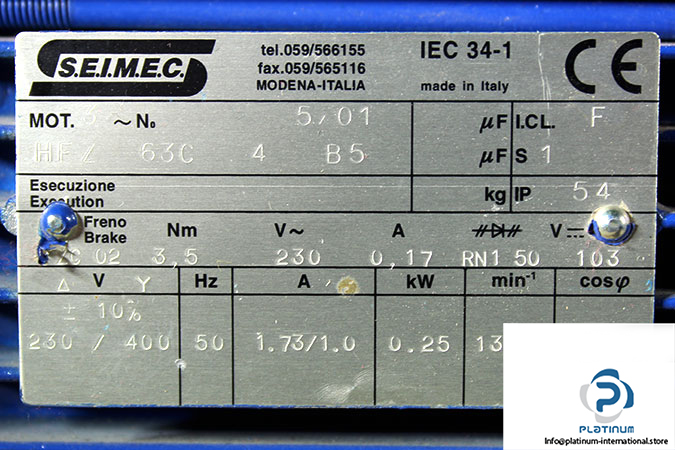

Model: HFZ63C4B5
Motor Speed [r/min]: 1335
Motor Power [kW]: 0.25
Rated Voltage [V]: 230/400
Nominal Current [A]: 1.73/1.0
Motor Frequency [Hz]: 50
Cos Phi: 0.62
Thermal Class: F
Duty: S1
Protection Class [IP]: 54
Mounting Position [MI]: B5
Brake Model: ZC02
Brake Torque [Nm]: 3.5
Brake Voltage [V]: 230
Brake Current [A]: 0.17
Weight [kg]: 7,0
