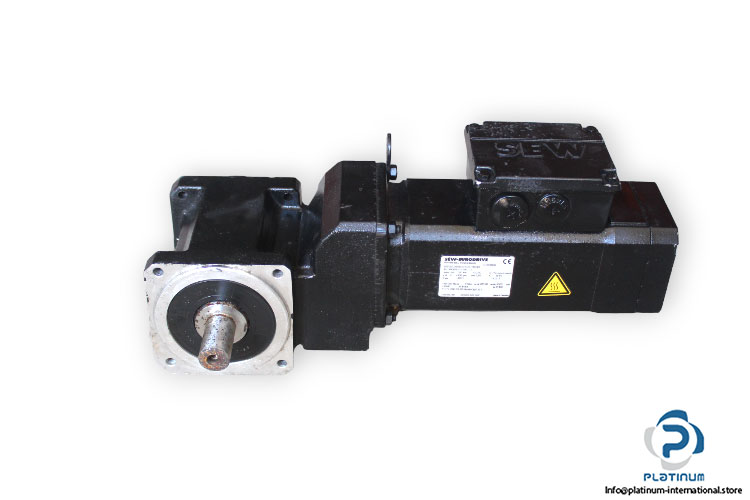

SEW BSF202 DS56L/TF/RH1M/KK Planetary Servo Gear

Manufacturer: SEW

Type: Planetary Servo Gear

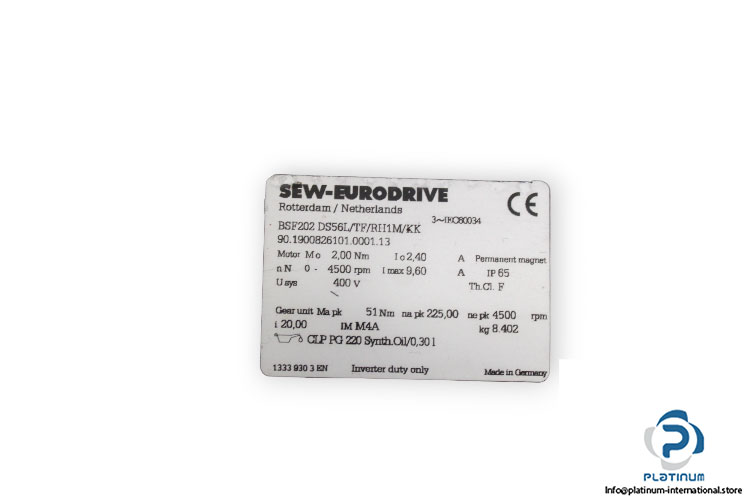

Model: BSF202 DS56L/TF/RH1M/KK

Part Nr.: 90.1900826101.0001.13

Speed [r/min]: 4500 / 225

Total Ratio [i]: 20.00 / Finite

Lubricant/Volume [l]: CLP PG 220/0,30

Input Speed [rpm]: 4500

Output Speed [min^-1]: 225.00

Output Torque [Nm]: 51

Output Shaft End [mm]: 25×35

Flange: Centering Shoulder 90mm, Hole Circle Through Holes 109mm

Rated Speed [rpm]: 4500

Standstill Torque [Nm]: 2.00

Max. Limit Torque [Nm]: 7.6

Standstill Current [A]: 2.4

Max. Current [A]: 9.6

Cyclic Duration Factor: S1

Motor Voltage [V]: 400

Max. Permitted Frequency [Hz]: 225

Thermal Class/Enclosure [IP]: F/65
