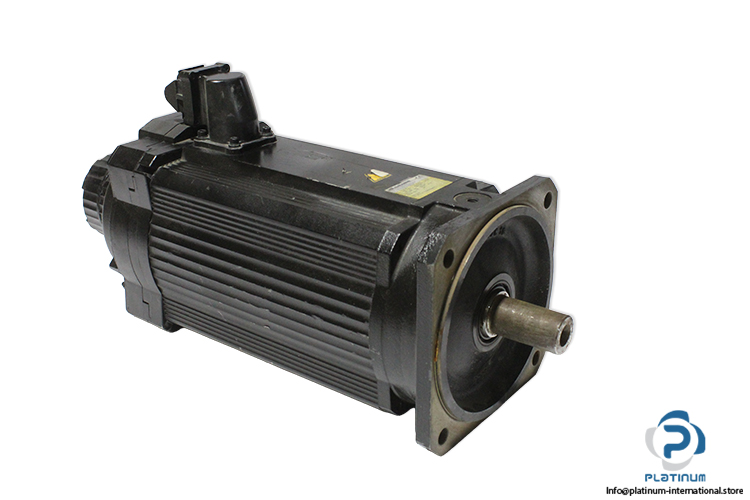

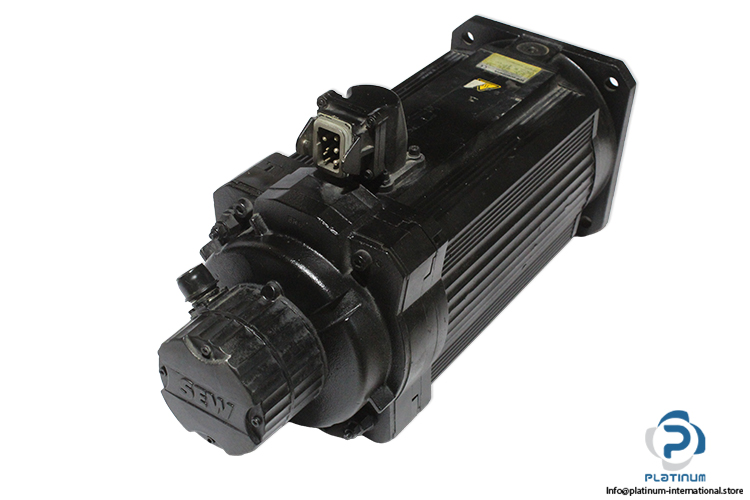

SEW CFM112L/BR/TF/VR/AS1H/SB50 Synchronous Servo Motor
Used
In stock1 unitReady to ship
Synchronous Servo Motor
SEW CFM112L/BR/TF/VR/AS1H/SB50 servo motor with 400 V 3-phase supply, 65 Nm rated torque, 2000 r/min rated speed, IP65 protection, and integrated 24 V DC brake.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SEW CFM112L/BR/TF/VR/AS1H/SB50 Synchronous Servo Motor
The SEW CFM112L/BR/TF/VR/AS1H/SB50 synchronous servo motor is engineered for high-performance motion control applications requiring precise torque delivery, stable speed regulation, and reliable braking performance.

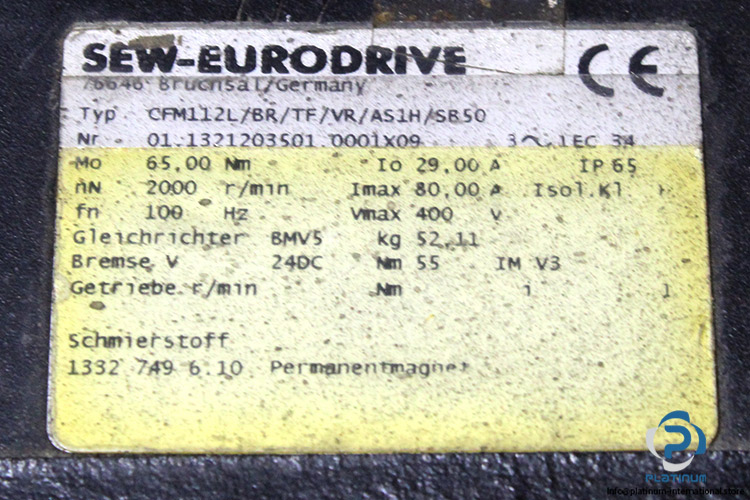

Manufacturer: SEW
Type: Synchronous Servo Motor
Model: CFM112L/BR/TF/VR/AS1H/SB50
Serial No.: 01.1321203501.0001X09
Recommended for precision automation systems, CNC machinery, robotics, and high-dynamic motion control applications requiring reliable torque and integrated braking functionality.
| Maximum Voltage (Vmax) | 400 V “ 3 Phase |
| Rated Current (Io) | 29 A |
| Maximum Current (Imax) | 80 A |
| Frequency (fn) | 100 Hz |
| Rated Torque (Mo) | 65 Nm |
| Rated Speed (nN) | 2000 r/min |
| Protection Class | IP65 |
| Insulation Class | F |
| Mounting Position | IM V3 |
| Brake Voltage | 24 V DC |
| Brake Torque | 55 Nm |
| Rectifier | BMV5 |
| Lubrication Code | 1332 749 6.10 |
| Connection Type | Connector (Multi-pin) “ Used for encoder signals to servo controller |
More From SEW
Used
SEW

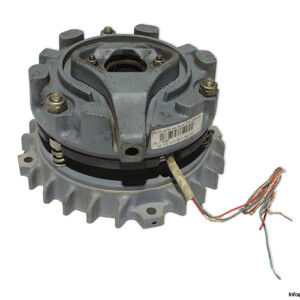

SEW BMG8 HF 400V 55NM Motor Brake With Motor Base
