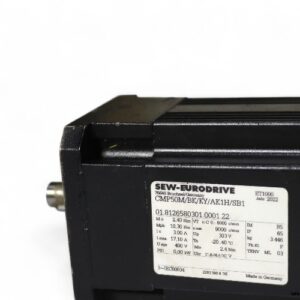

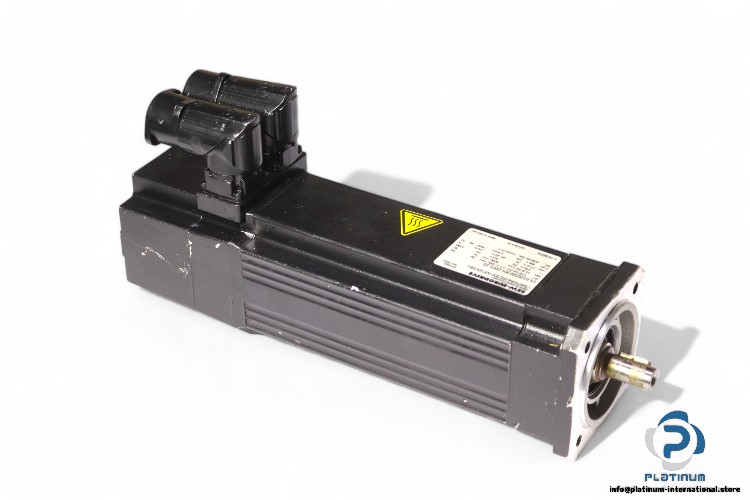

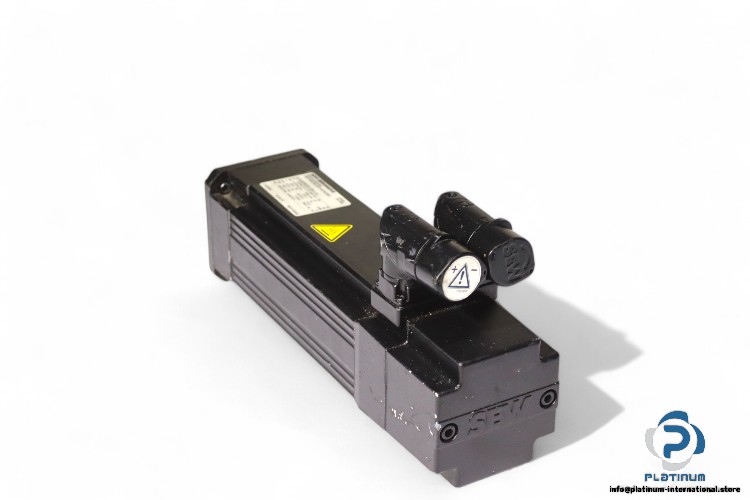

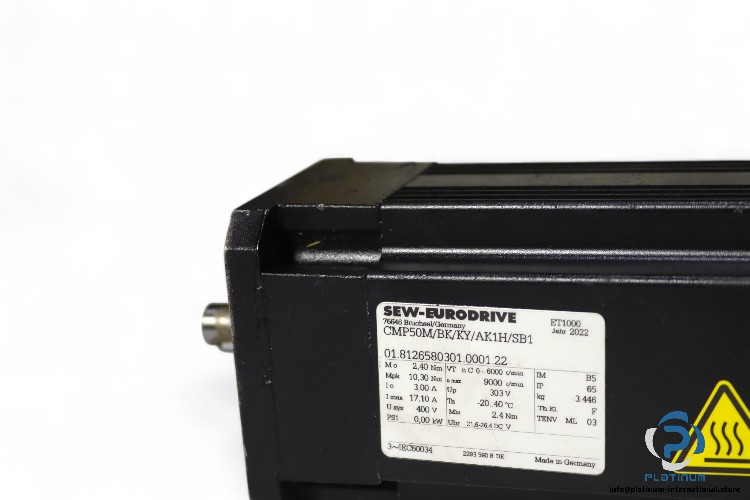

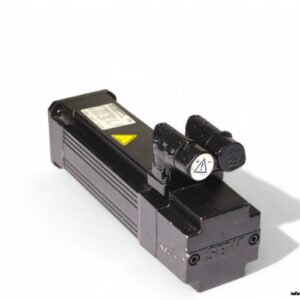

SEW CMP50M/BK/KY/AK1H/SB1 Servo Motor

Manufacturer: SEW
Type: Servo Motor
Model: CMP50M/BK/KY/AK1H/SB1
Part No.: 01.8126580301.0001.22

Stall Torque [Nm]: 2,40
Peak Torque [Nm]: 10,30
Stall Current [A]: 3
Max. Current [A]: 17,10
Motor Voltage [V]: 400
Max. Speed: 9000 RPM
Rated Speed: 6000 RPM
Mounting Position: B5
Thermal Class/Enclosure [IP]: F/65
Brake voltage [V]/-torque [Nm]: 24 DC / 2.4
Output shaft end [mm] 11X23
Flange [mm]: 60mm Centering 75mm Hole circle 73mm Square flange
