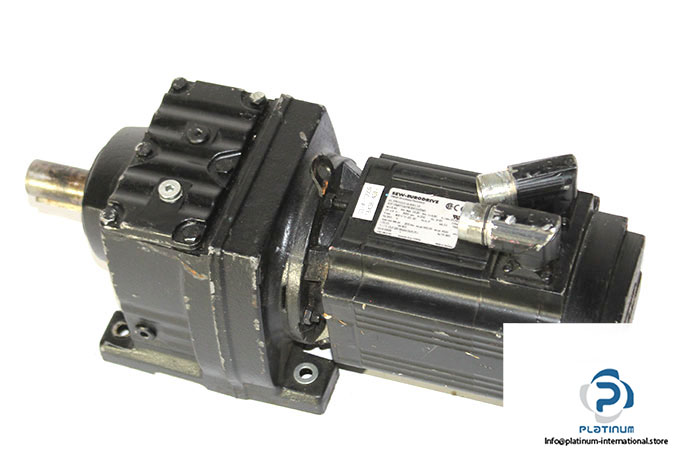

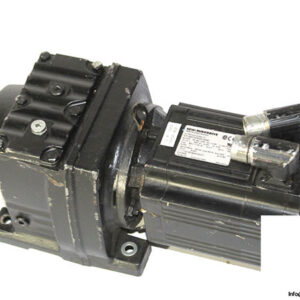

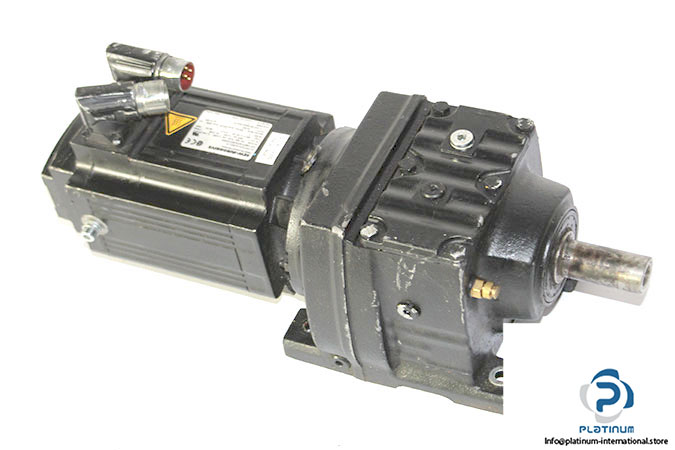

SEW-Eurodrive R37 CMP71S/PK/EK1H/SM1 AC Servo Motor Gear

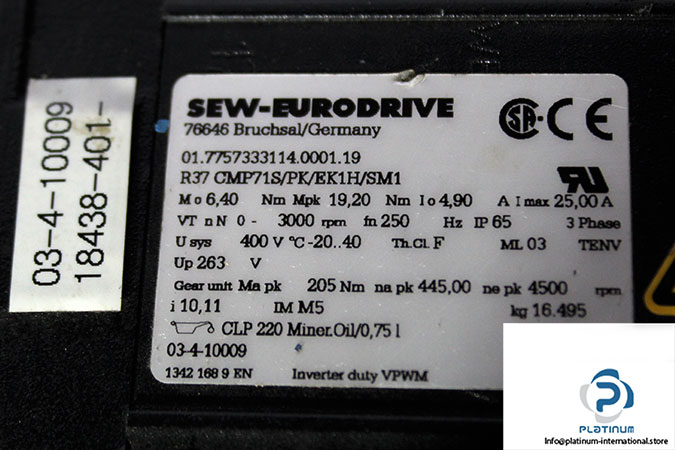

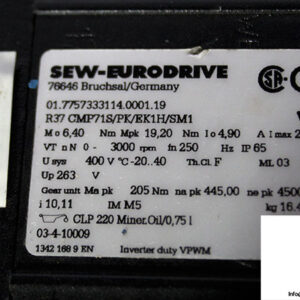

Manufacturer: SEW-EURODRIVE
Type: AC SERVO MOTOR GEAR
Model: R37CMP71SPKEK1HSM1
ID Product: 01.7757333114.0001.19

Rated Voltage(V): 400
Maximum Current (A): 25
Rated Current (A): 4.9
Rated Torque (Nm): 6.4
Maximum Torque (Nm): 19.2
Frequency (HZ): 250
Input Speed Range (RPM): 0- 3000
Maximum permitted Frequency (HZ): 250
Duty: S1

SEW R37 GEARBOX

Manufactured: SEW-EURODRIVE
Model: R37
Type: Helical Gear Box

Ratio (i): 10.11
Maximum Output Torque (Nm): 205
Maximum Output Speed (RPM): 445
Oil: CLP 220 Miner. Oil/0.75 l
