SEW EG7S OG 83 S SN 1024 Sine Encoder
Used
Available on request
950,00$
SINE ENCODER “ SEW EURODRIVE EG7S
Precision sine encoder with 1024 resolution, IP66 protection, and explosion-proof design. Ideal for DR160-225 motors with sin/cos output and 14 mm bore shaft fit.1024730CosDR160-225EG7SEncoderEurodriveExplosionHighIndustrialIP66motorMRNOG83ProofResolutionsSewSinsineSN1024SpeedVDC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

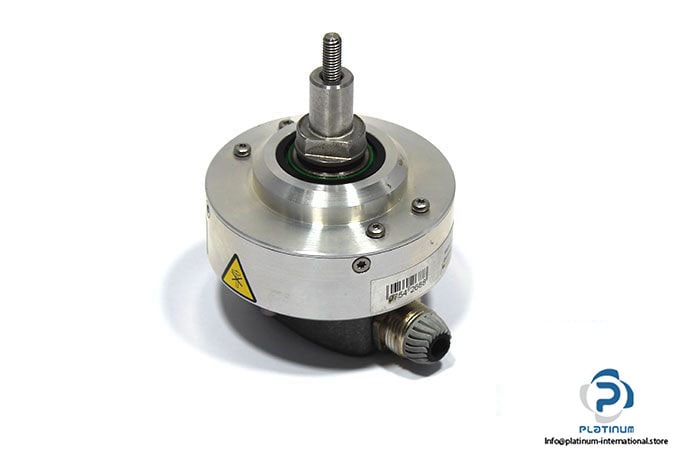

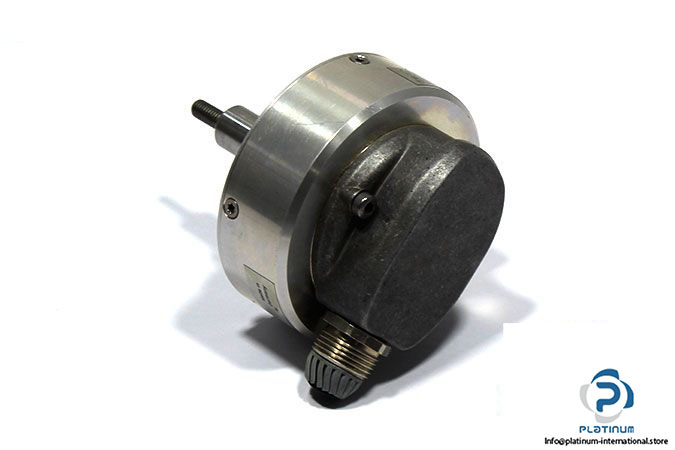

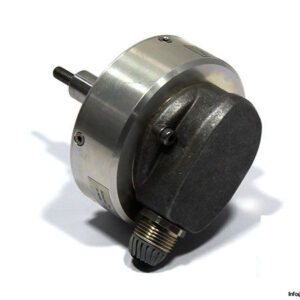

SEW EURODRIVE EG7S SINE ENCODER
The Sew Eurodrive EG7S Sine Encoder is engineered for high-performance feedback in industrial motor applications. Offering precise resolution and robust construction, it is designed to operate reliably even in harsh conditions. Ideal for motors in the DR160-225 series, this encoder ensures seamless integration and maximum signal accuracy.

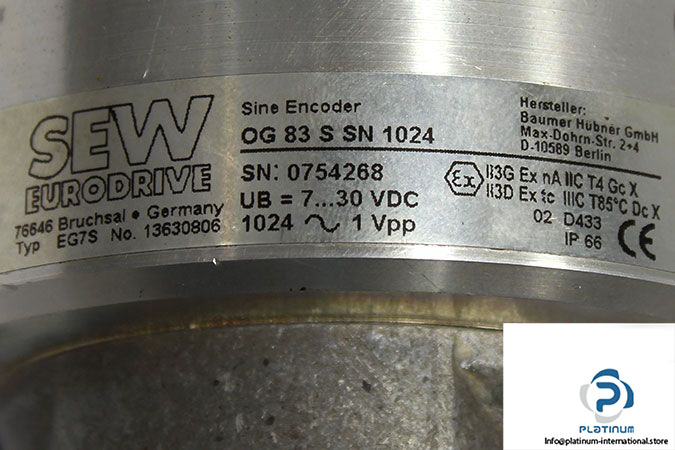

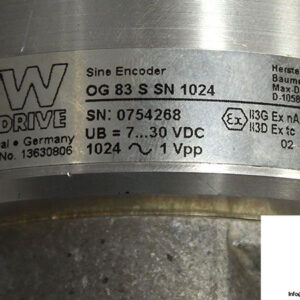

Manufacturer: Sew Eurodrive
Type: Sine Encoder
Model: EG7S
MRN: OG83 S SN1024
Part No.: 13630806
Serial No.: 0754268
Compatible Motor: DR160-225
| Supply Voltage | 7 / 30 VDC |
| Max. Current Consumption | 140 mA |
| Output Current Per Track | 10 mA |
| Max. Speed | 6000 min-1 |
| Max. Pulse Frequency | 150 kHz |
| Phase Angle | 90° ± 3° |
| Data Memory | 1920 bytes |
| Signal Output | Sin/Cos |
| Motor Shaft Type | 14 mm Bore with M6 End Thread |
| Resolution | 1024 |
| Explosion Proof | EX |
| Protection Class | IP66 |
