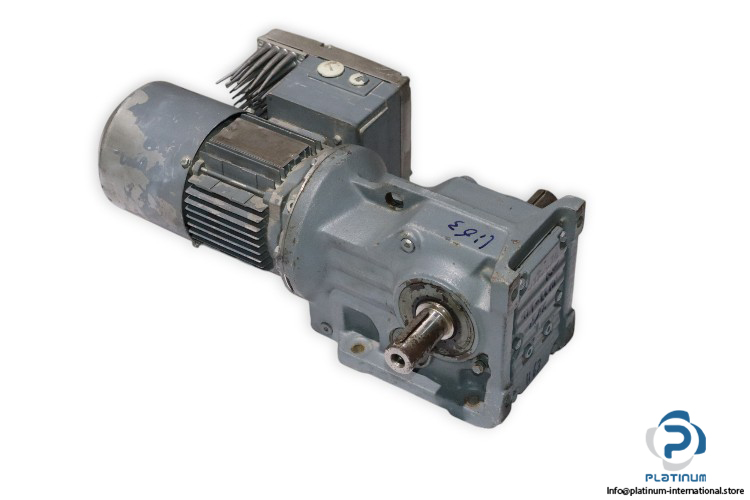

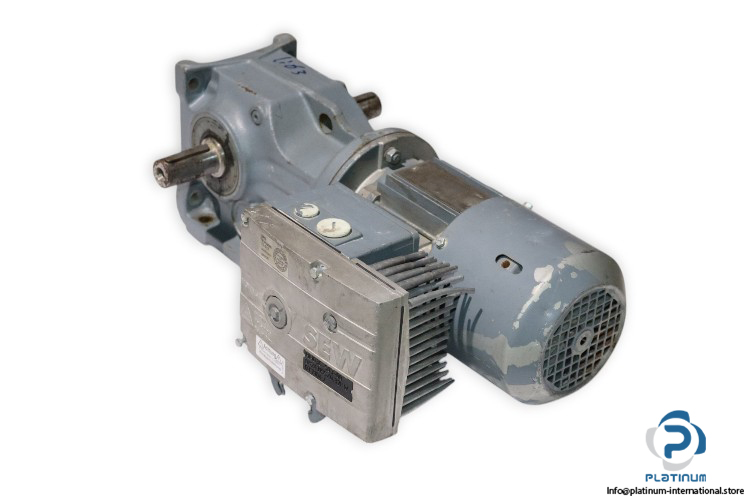

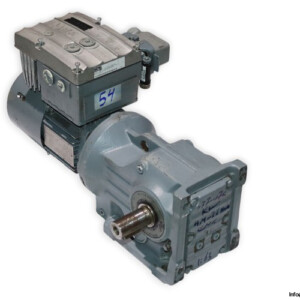

SEW K47 DT71D4/BMG/HR/MM03/RE1A/AMA6/AVR1/AX Helical-Bevel Gearmotor

SEW K47 DT71D4/BMG/HR/MM03/RE1A/AMA6/AVR1/AX BEVEL HELICAL-GEARMOTOR

The SEW K47 DT71D4/BMG/HR/MM03/RE1A/AMA6/AVR1/AX Bevel Helical-Gearmotor provides efficient and precise power transmission. Featuring a wide range of input/output speeds, this gearmotor is ideal for heavy-duty industrial applications. The motor and gear unit are designed for optimal performance, with high torque, low noise, and long-lasting reliability.

Manufacturer: SEW

Type: Bevel Helical-gearmotor

Model: K47 DT71D4/BMG/HR/MM03/RE1A/AMA6/AVR1/AX

Part No: 01.1278050501.0002×09

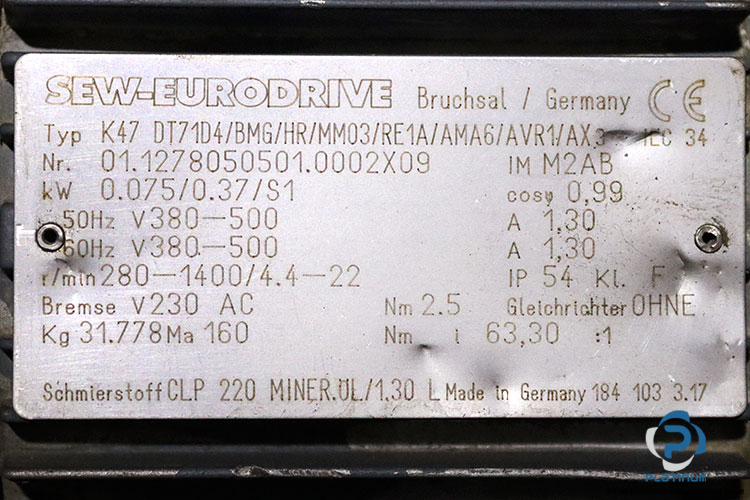

Technical Specifications

• Gear Unit: K47
• Speed 50Hz [r/min]: 280 – 1400
• Output Speed [r/min]: 4.4 – 22
• Total Ratio: 63.30 / finite
• No. of Teeth Nom./Denominator: 101277/1600
• Output Torque [Nm]: 160
• Service Factor SEW-FB: 2.50
• Mounting Position: M2AB
• Lubricant / Volume [l]: CLP 220 Miner.Oil / 1.30
• Output Shaft End: 30x60mm lg.
• Design: Foot-mounted version
• Motor Power [kW]: 0.075 / 0.37
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor S1-S10: S1
• Multi Range-Voltage 50Hz [V]: 380-500
• Multi Range-Voltage 60Hz [V]: 380-500
• MM Rated Main Current [A]: 1.30
• MM Rated O/P Current [A]: 1.60
• Thermal Class [°C] / Enclosure [IP]: (F) / 54
• Brake Voltage [V] / Torque [Nm]: 230 AC / 2.5

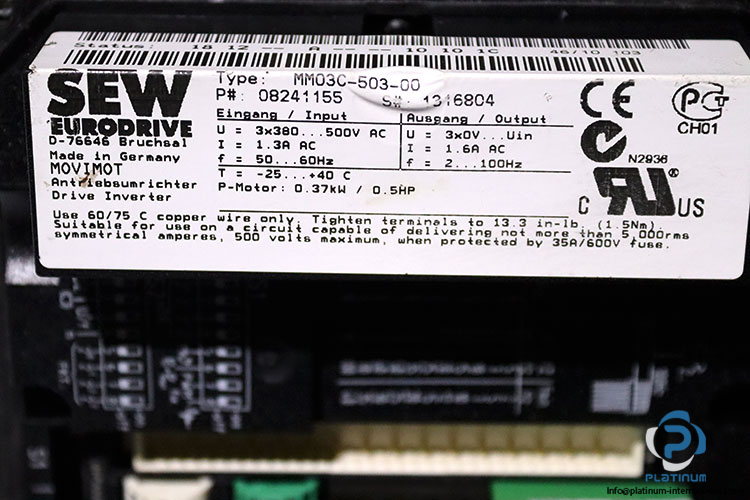

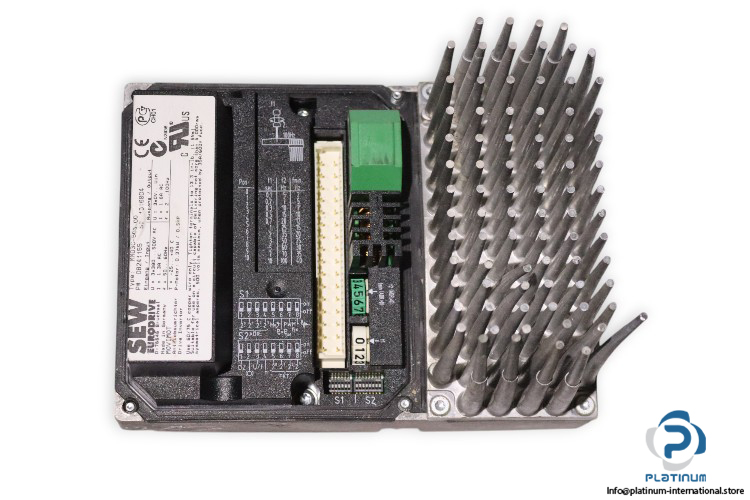

• Attached with: SEW MM03C-503-00 MOVIMOT Inverter Drive

Input

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.3 A
• Frequency: 50 / 60 Hz

Output

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 2 to 100 Hz
