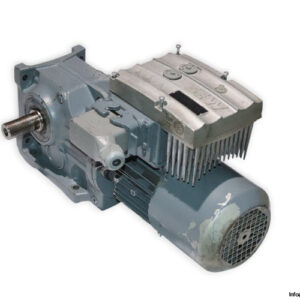

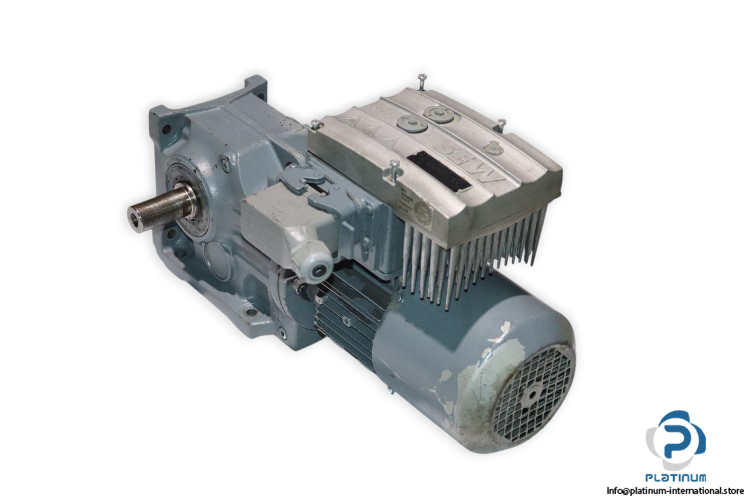

SEW K47 DT71D4/BMG/HR/MM03/RE1A/AMA6/AVR1/AX Helical- Bevel Gearmotor

SEW K47 DT71D4/BMG/HR/MM03/RE1A/AMA6/AVR1/AX HELICAL-BEVEL GEARMOTOR

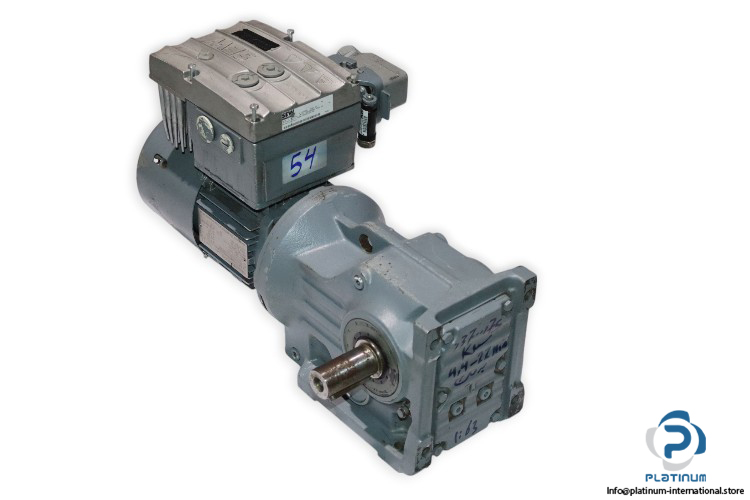

The SEW K47 DT71D4/BMG/HR/MM03/RE1A/AMA6/AVR1/AX Helical-Bevel Gearmotor offers efficient power transmission with a total ratio of 63.30, output torque of 160 Nm, and adjustable input speeds of 280 – 1400 r/min. With a variety of mounting positions and attached with a MOVIMOT inverter drive, this gearmotor is built for reliable industrial use.

Manufacturer: SEW

Type: HELICAL-BEVEL GEARMOTOR

Model: K47 DT71D4/BMG/HR/MM03/RE1A/AMA6/AVR1/AX

Part No: 01.1278050501.0004X09

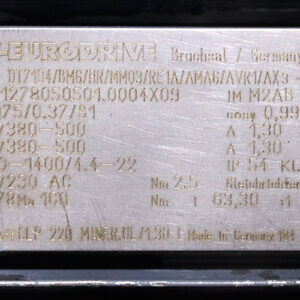

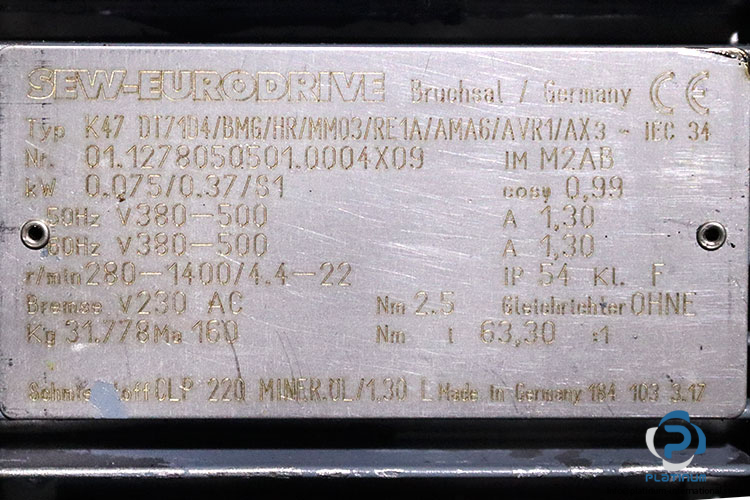

Technical Specifications

• Gear unit: K47
• Input speed [r/min]: 280 – 1400
• Output speed [r/min]: 4.4 – 22
• Total ratio: 63.30
• No. of teeth nom./denominator: 101277/1600
• Mounting position: M2AB
• Output torque [Nm]: 160
• Service factor SEW-FB: 2.50
• Lubricant / -volume [l]: CLP 220 Miner.Oil / 1.30
• Output shaft end: 30x60mm lg.
• Design: Foot-mounted version
• Motor power [kW]: 0.075 / 0.37
• Motor frequency [Hz]: 50
• Cyclic duration factor S1-S10: S1
• Multi range-voltage 50Hz [V]: 380-500
• MM rated main current [A]: 1.30
• Multi range-voltage 60Hz [V]: 380-500
• MM rated O/P current [A]: 1.60
• Thermal cl. [°C] / Enclosure [IP]: F / 54
• Brake voltage [V] / -torque [Nm]: 230 AC / 2.5

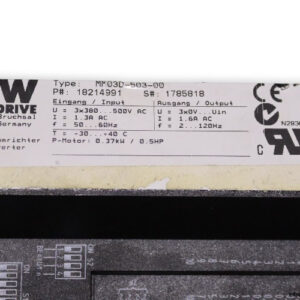

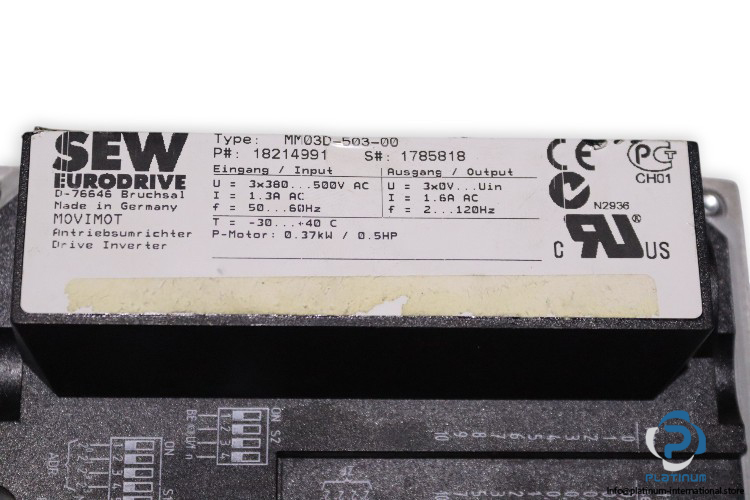

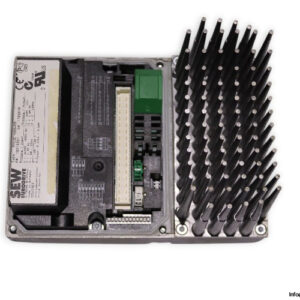

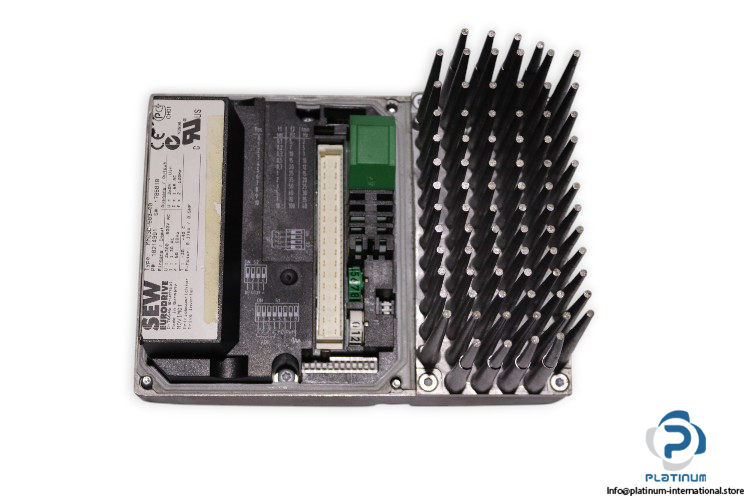

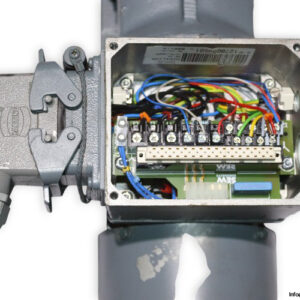

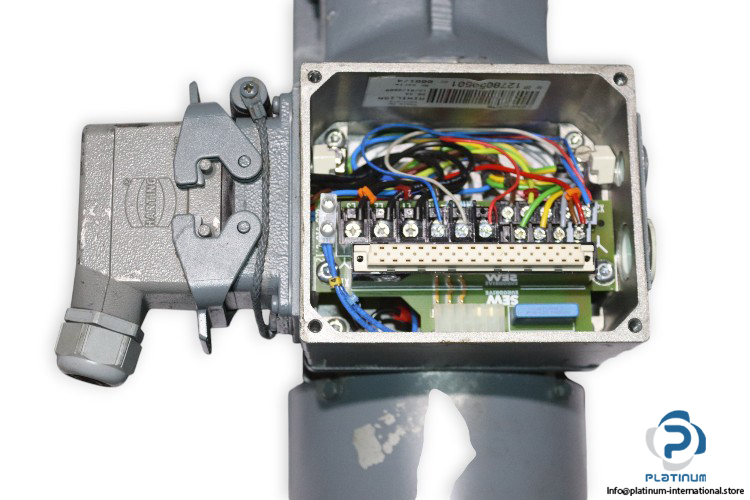

Attached with: SEW MM03D-503-00 MOVIMOT INVERTER DRIVE

Input

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.3 A
• Frequency: 50 / 60 Hz

Output

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 2 to 120 Hz
