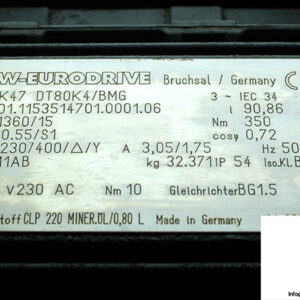

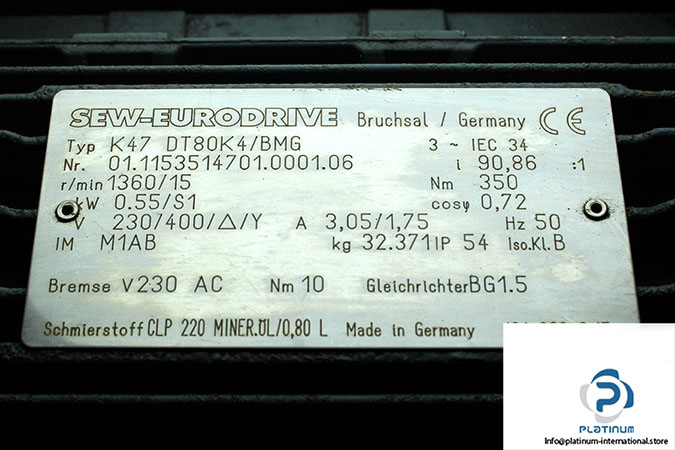

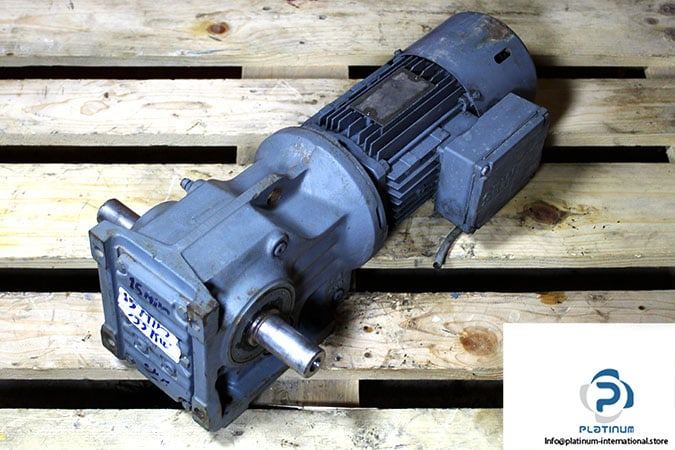

SEW K47 DT80K4/BMG Bevel-Helical Gearmotor

Manufacturer: Sew-Eurodrive
Type: Bevel Helical Gear Motors
Model: K47DT80K4/BMG
Serial Number: 01.1153514701.0001.06

Speed [r/min]: 1360 / 15
Total Ratio [i]: 90,86
Output Torque [Nm]: 350
Service Factor SEW-FB: 1,15
Mounting Position: M1AB
Output Shaft End [mm]: 30×60
Motor Power [kW]: 0.55
Motor Frequency [Hz]: 50
Cyclic Duration Factor: S1
Motor Voltage [V]: 230/400 Delta/Star
Nominal Current [A]: 3,05 / 1,75
Cos Phi: 0,72
Thermal Class/Enclosure [IP]: B / 54
Brake Voltage [V]/-Torque [Nm]: 230 AC / 10
Multi Range-Voltage Brake [V]: 230 AC
Brake Rectifier: BG1.5
Weight [kg]: 32,0
