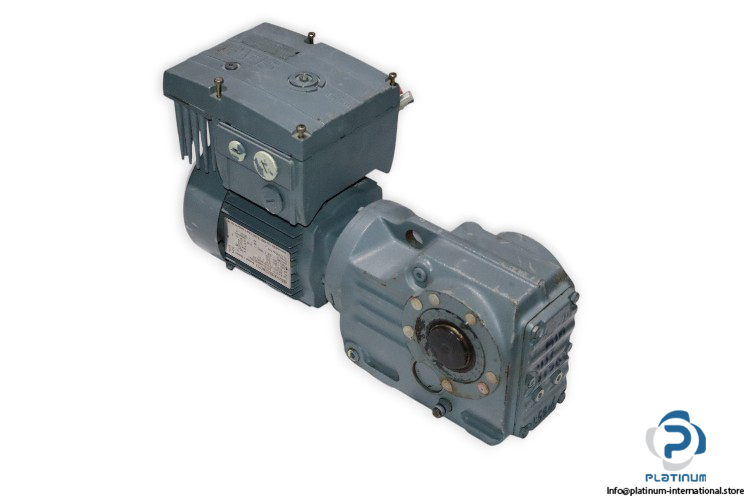

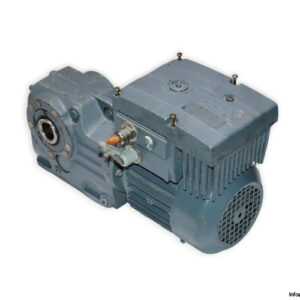

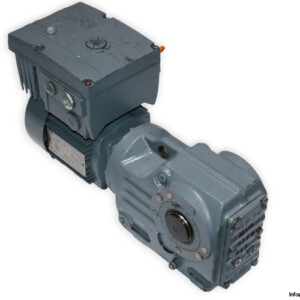

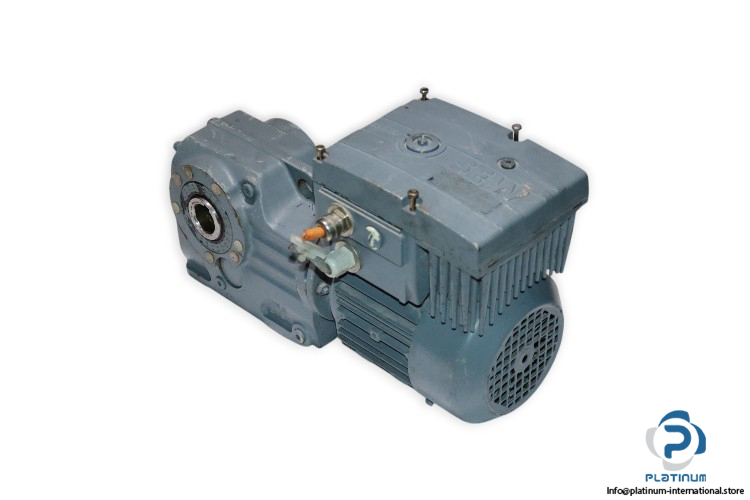

SEW KA37/T DT71D4/MM03/BW1 Helical- Bevel Gearmotor

SEW KA37/T DT71D4/MM03/BW1 HELICAL-BEVEL GEARMOTOR

The SEW KA37/T DT71D4/MM03/BW1 Helical-Bevel Gearmotor is designed to provide efficient power transmission with high torque output. Its compact design and advanced features ensure reliability in various industrial applications. This gearmotor includes the SEW MM03C-503-00 MOVIMOT Inverter Drive for seamless operation.

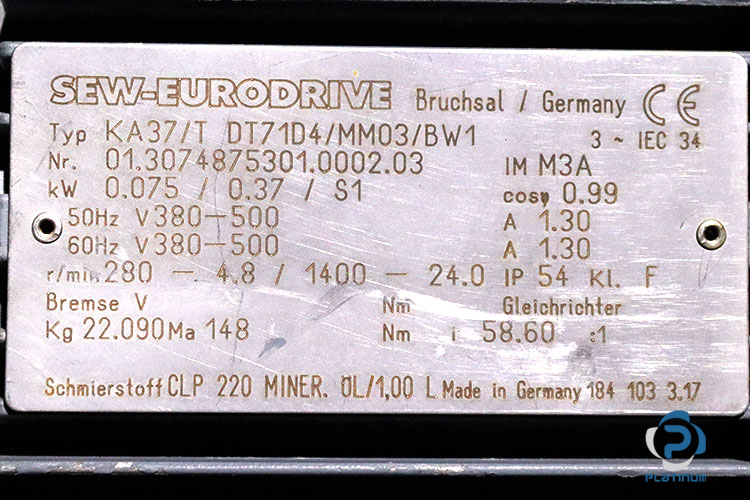

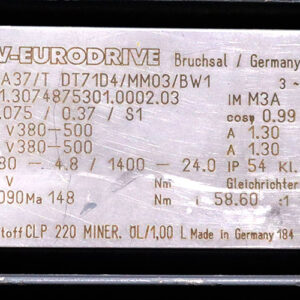

Manufacturer: SEW

Type: HELICAL-BEVEL GEARMOTOR

Model: KA37/T DT71D4/MM03/BW1

Part No: 01.3074875301.0002.03

Technical Specifications

• Gear Unit: KA37/T
• Input Speed [r/min]: 280 – 1400
• Output Speed [r/min]: 4.8 – 24.0
• Total Ratio: 58,60
• Mounting Position: M3A
• Output Torque [Nm]: 148
• Service Factor SEW-FB: 1.35
• Lubricant / Volume [l]: CLP 220 1.00
• Hollow Shaft: 30 mm
• Design: Hollow shaft
• Motor Power [kW]: 0.075 / 0.37
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor S1-S10: S1
• Multi Range-Voltage 50Hz [V]: 380-500
• MM Rated Main Current [A]: 1.30
• Multi Range-Voltage 60Hz [V]: 380-500
• MM Rated O/P Current [A]: 1.60
• Thermal Class [°C] / Enclosure [IP]: F / 54

Attached with:

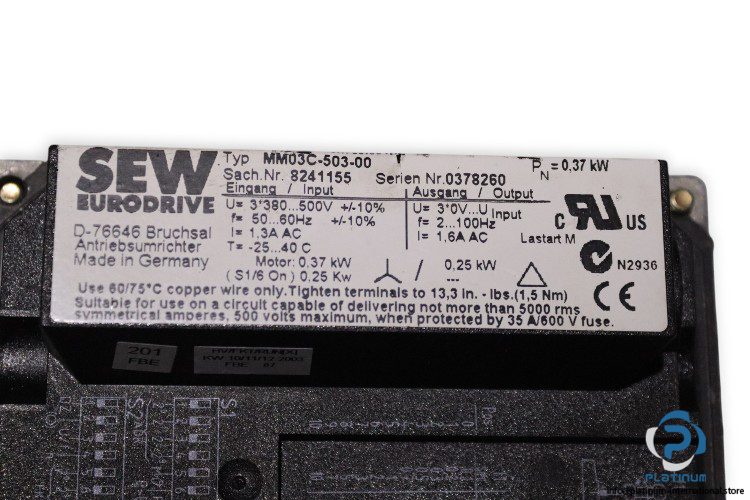

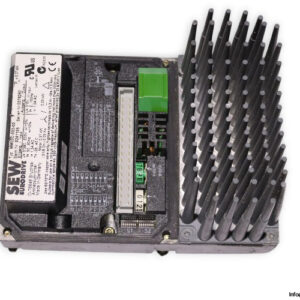

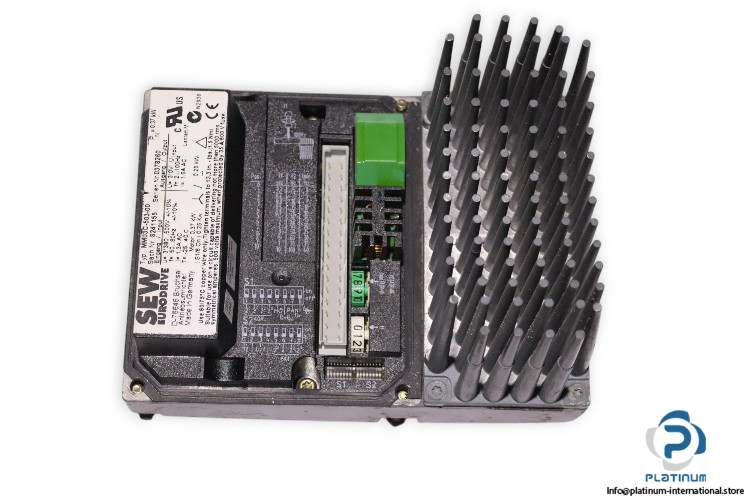

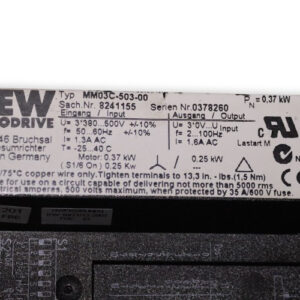

SEW MM03C-503-00 MOVIMOT INVERTER DRIVE

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.3 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 2 to 100 Hz
