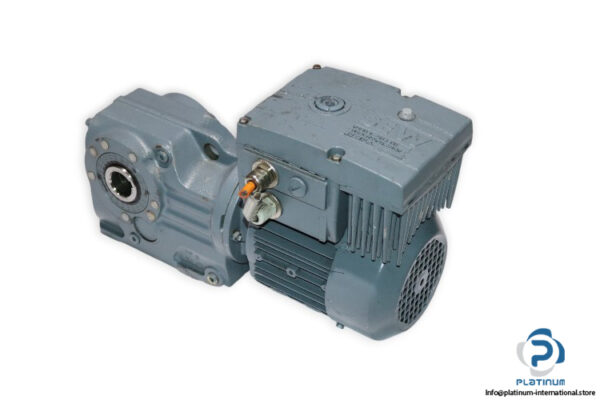

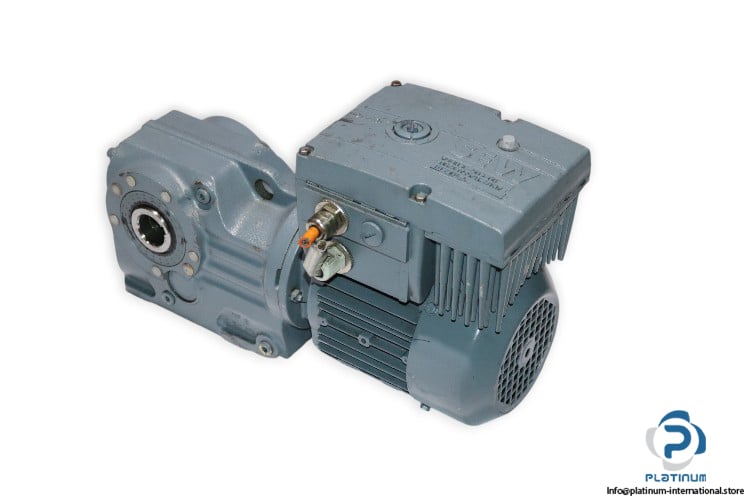

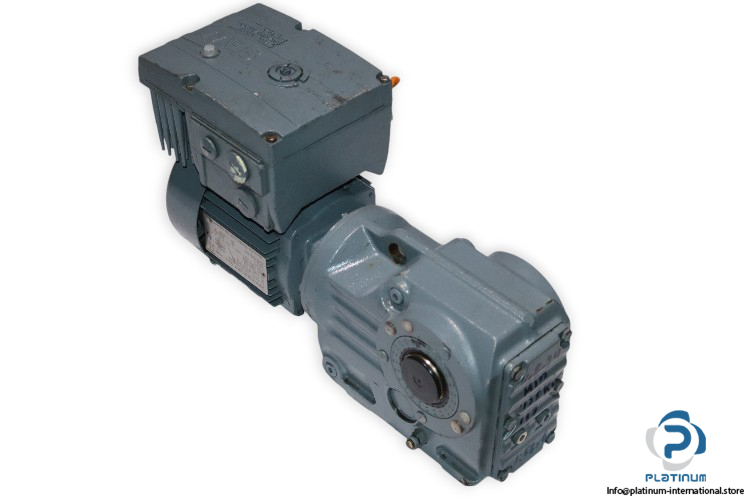

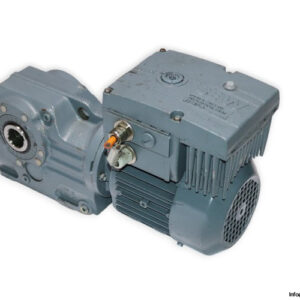

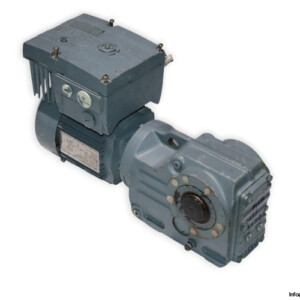

SEW KA37/T DT71D4/MM03/BW1 Helical- Bevel Gearmotor

SEW KA37/T DT71D4/MM03/BW1 HELICAL-BEVEL GEARMOTOR

The SEW KA37/T DT71D4/MM03/BW1 Helical-Bevel Gearmotor combines high efficiency and precision for industrial applications. Designed with a total ratio of 58.60 and a wide input speed range of 280 – 1400 r/min, this gearmotor offers reliable output performance with 148 Nm torque and a motor power of 0.075 / 0.37 kW. The included SEW MOVIMOT Inverter Drive ensures versatile speed control, making it suitable for various operational demands.

Manufacturer: SEW

Type: HELICAL-BEVEL GEARMOTOR

Model: KA37/T DT71D4/MM03/BW1

Part no: 01.3074875301.0001.03

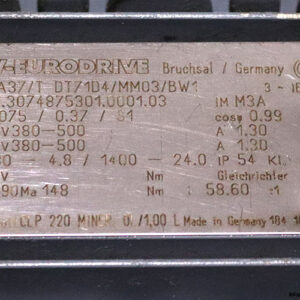

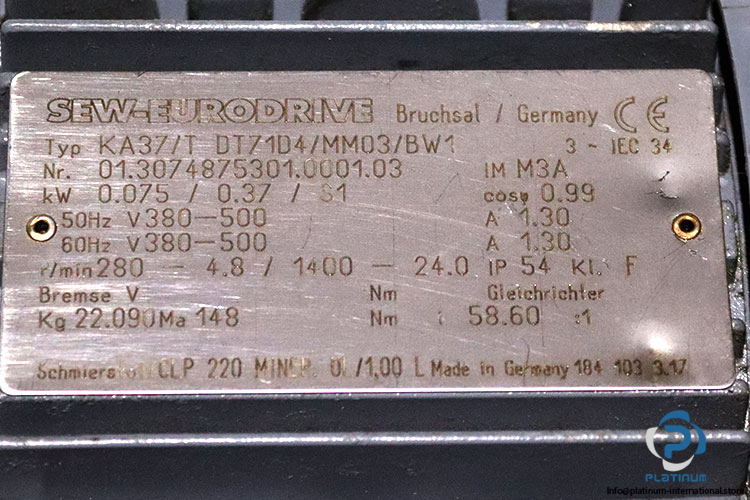

Technical Specifications

• Gear unit: KA37/T
• Input speed [r/min]: 280 – 1400
• Output speed [r/min]: 4.8 – 24.0
• Total ratio: 58,60
• Mounting position: M3A
• Output torque [Nm]: 148
• Service factor SEW-FB: 1.35
• Lubricant / volume [l]: CLP 220 1.00
• Hollow shaft: 30mm
• Design: Hollow shaft
• Motor power [kW]: 0.075 / 0.37
• Motor frequency [Hz]: 50
• Cyclic duration factor S1-S10: S1
• Multi range-voltage 50Hz [V]: 380-500
• MM rated main current [A]: 1.30
• Multi range-voltage 60Hz [V]: 380-500
• MM rated O/P current [A]: 1.60
• Thermal class [°C]/Enclosure [IP]: F / 54

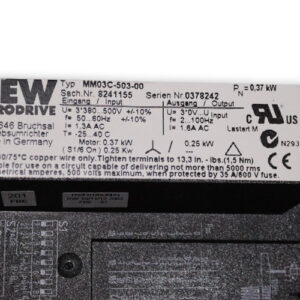

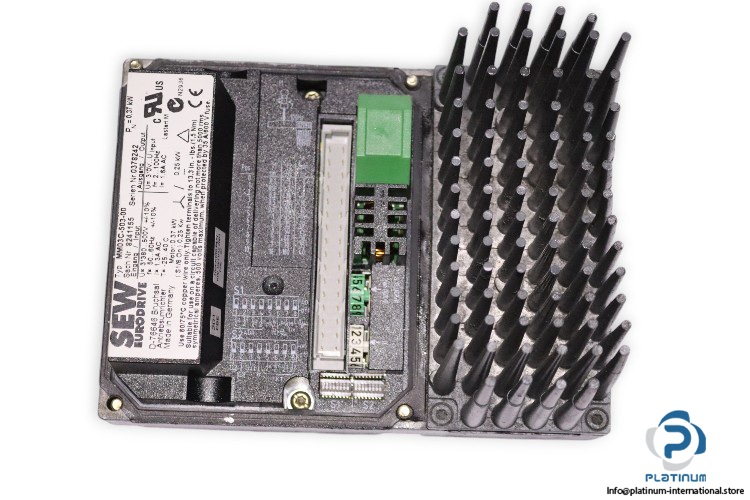

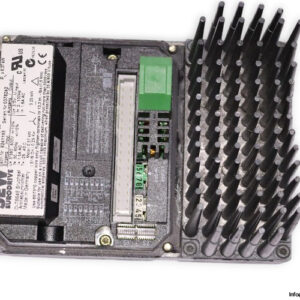

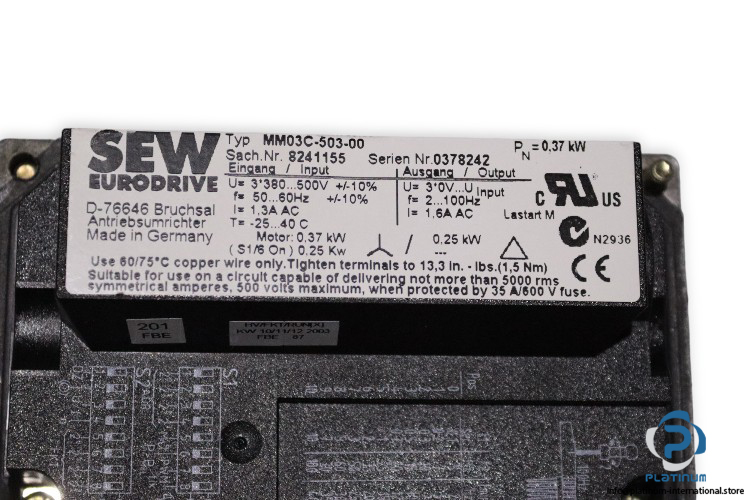

Attached with: SEW MM03C-503-00 MOVIMOT INVERTER DRIVE

• Input:
  • Supply Voltage: 3-Phase 380 to 500 V AC
  • Rated Current: 1.3 A
  • Frequency: 50 / 60 Hz
• Output:
  • Rated Voltage: 3-Phase 0 / 380 to 500 V AC
  • Rated Current: 1.6 A
  • Frequency: 2 to 100 Hz
