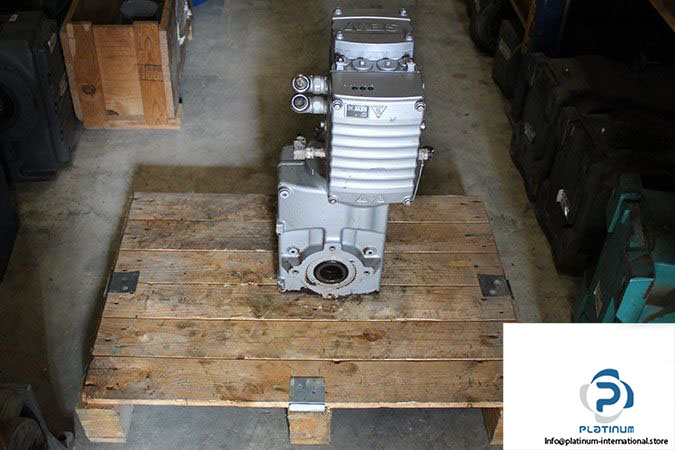

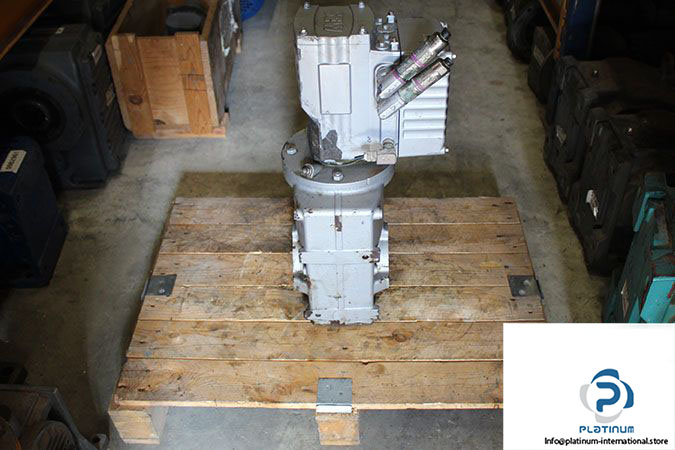

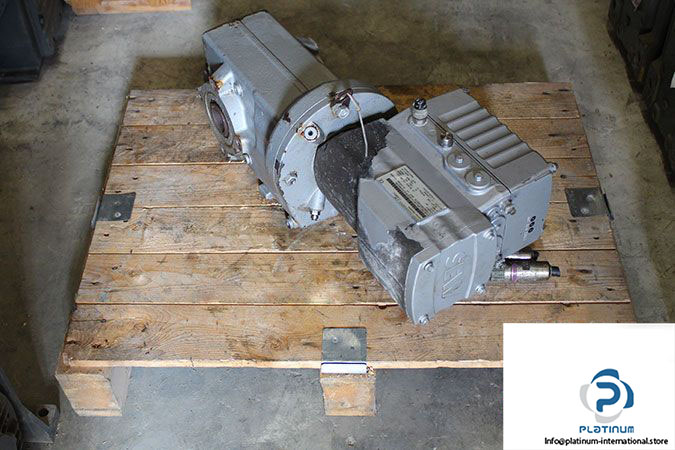

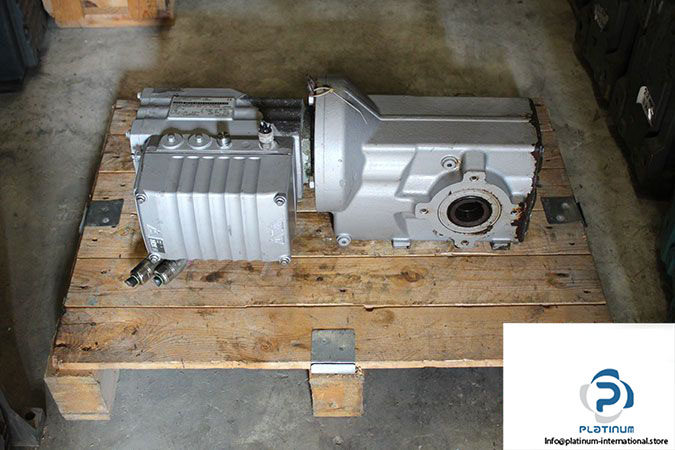

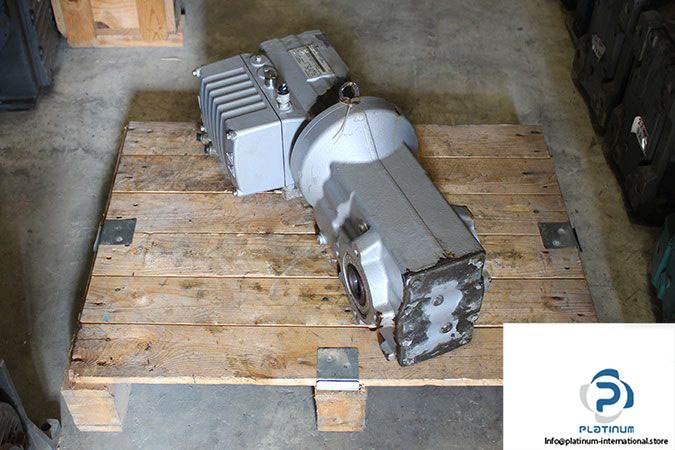

SEW KA49 DRC1-005-DSC-A-ECR/BY1C/IV/BW1/PE Helical-Bevel Gearmotor
Manufacturer: Sew-Eurodrive
Type: Helical Bevel Gear Motor
Model: KA49 DRC1-005-DSC-A-ECR/BY1C/IV/BW1/PE

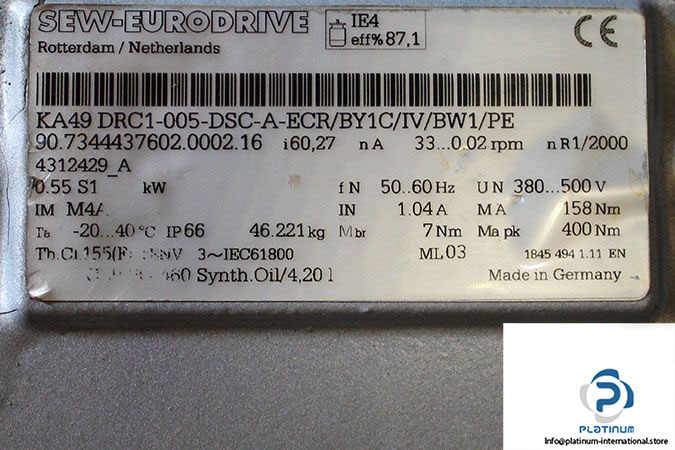

Serial Number: 90.7344437602.0001.16
Input Speed [r/min]: 2000 – 1
Output Speed [r/min]: 33 – 0.02
Total Ratio [i]: 60,27 / Infinite
Ma Max [Nm]: 500
Output Torque [Nm]: 158
Peak Torque [Nm]: 400
Mounting Position: M4A
Connection Box Position: 180° (L)
Lubricant / -Volume [l]: CLP PG 460 Synth.Oil / 4,20
Communication: DSC, Direct S-Bus Communication
Drive Package: Aseptic
Corrosion Protection: Yes
Surface Protection: OS2 to Technical Data Sheet 01802__94
Paint Coat: Top coat: Aluminum Similar to RAL9006 M24-S9701
Design: Hollow Shaft
Hollow Shaft [mm]: 40
Information: Notice! Modified Retaining Ring Recess!
Maximum Possible Insertion Depth for Customer Shaft = 154 mm
Control Range: Extended
Power [kW]: 0.55
Motor Torque [Nm]: 2,65
Maximum Motor Torque Mmax [Nm]: 6,62
Rated Supply Frequency [Hz]: 50-60 +/- 5%
Supply Voltage [V]: 3×380-500 -5% / +10%
Rated Supply Current [A]: 1.04
Cyclic Duration Factor: S1
Speed Ratio: 1/2000
cos phi: 0,99
Thermal Class [°C]/Enclosure [IP]: 155(F) / 66
International Efficiency Class: IE4
Efficiency [%]: 87,1
Functional Safety: STO – Safe Torque Off
Ambient Temperature Motor [°C]: -20…40
Connection Type: Industrial Plug Connector
Connection Configuration: In Position X+2+3
Brake: BY1C
Brake Torque [Nm]: 7
Internal Braking Resistor: BW1
Screw Plug Material: Stainless Steel
Weight [kg]: 46
