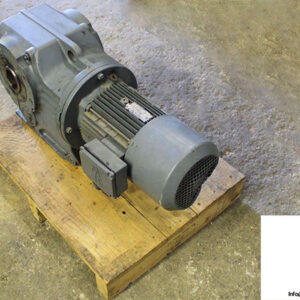

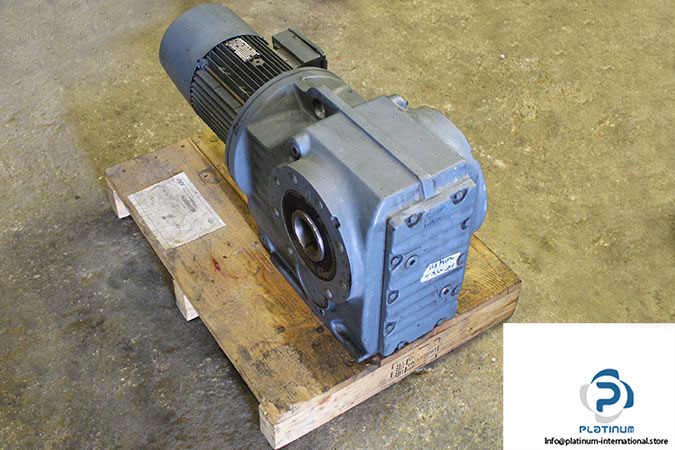

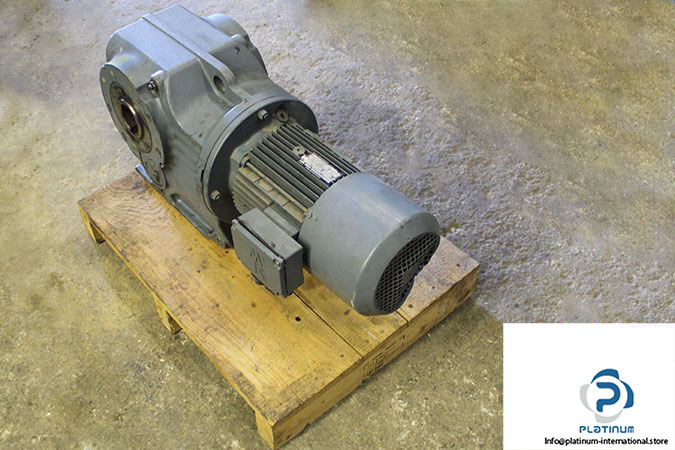

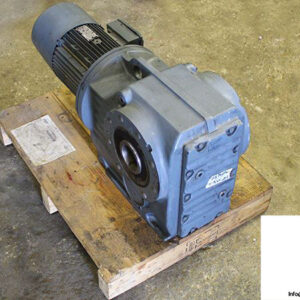

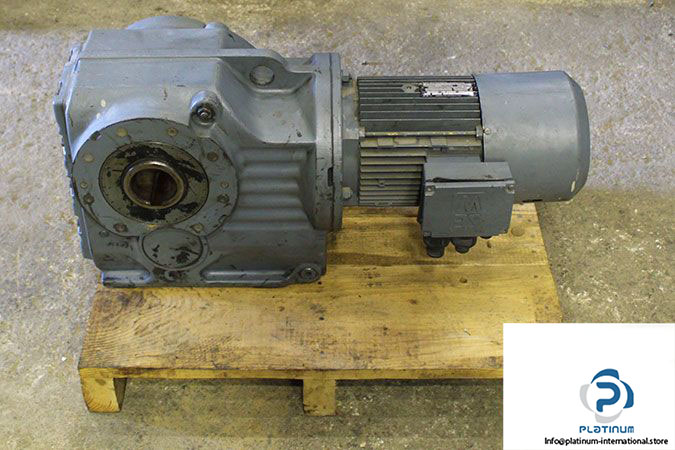

SEW KA97 DV112M4/BMG/HR/TF Helical-Bevel Gear Motor

Manufacturer: Sew Usocome / Sew Eurodrive

Type: Helical-bevel Gear Motor

Model: KA97 DV112M4/BMG/HR/TF

Consist of:

SEW DV112M4 ELECTRIC MOTOR

At 50 Hz

At Star Connection

• Rated Voltage: 380…415 V
• Rated Current: 7 A

At Delta Connection

• Rated Voltage: 220…240 V
• Rated Current: 2 A

Rated Power: 4 kW

Rated speed: 1420/14 min^-1

At 60 Hz

At Star Connection

• Rated Voltage: 415…460 V
• Rated Current: 9 A

At Delta Connection

• Rated Voltage: 240…266 V
• Rated Current: 8 A

Rated Power: 4 kW

Rated speed: 1720/16 min^-1

SEW KA97 GEARBOX

Ratio: 105.13

n_a1: 4.9 min^-1

n_a2: 29 min^-1

M_a1: 2460 Nm

M_a2: 1080 Nm

Pa2: 3.3 kW

SEW BMG8 ELECTRIC BRAKE

Rated Voltage: 380…460 V

Maximum Braking Torque: 55 Nm

Reduced Braking Torque: 9.5…45 Nm

Braking Work Until Service: 600*10⁶ J

Response Time: 30*10^-3 sec

Brake Application Time for Cut-Off in The Ac Circuit: 12*10^-3 sec

Brake Application Time for Cut-Off in The Dc and Ac Circuit: 60*10^-3 sec

Braking Power: 65 W

Transmission Ratio: 105.13

Shaft Diameter: 70 mm

Insulation Class: F

POWER FACTOR: 0.84

Protection Class: IP54

Gross Weight: 182 kg
