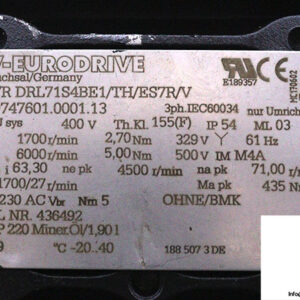

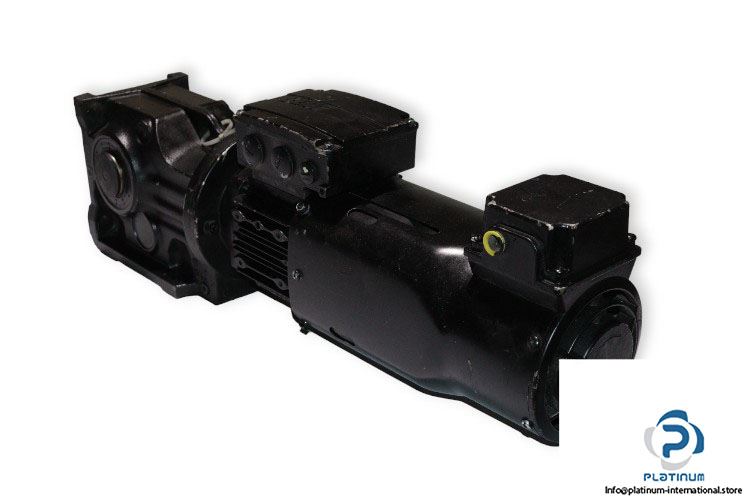

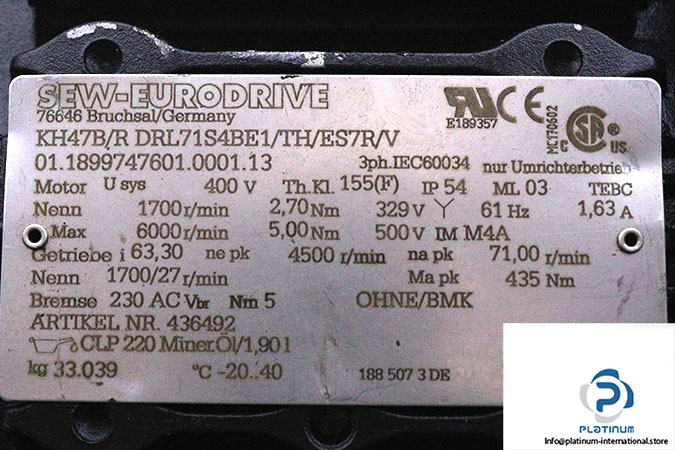

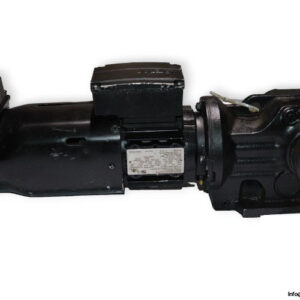

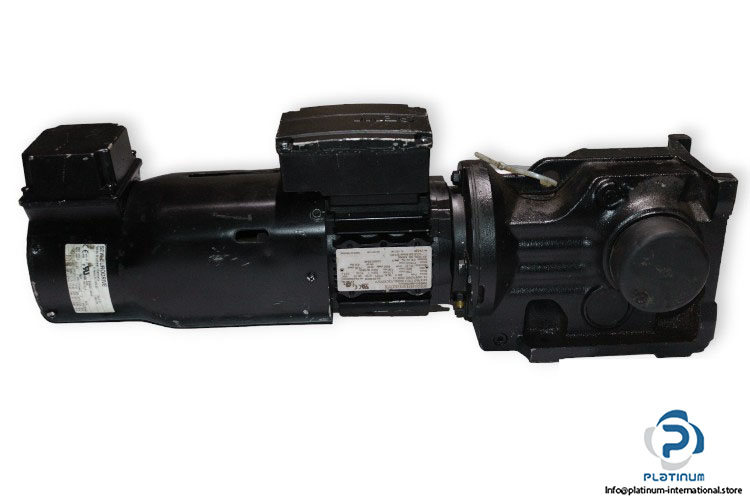

SEW KH47B/R DRL71S4BE1/TH/ES7R/V Helical Bevel Gearmotor

Manufacturer: Sew
Type: Helical Bevel Gearmotors
Model: KH47B/RDRL71S4BE1/TH/ES7R/V
Serial No.: 01.1899747601.0001.13

Speed [r/min]: 1700/27
Total Ratio [i]: 63,30
Mounting Position: M4A
Input Speed [rpm]: 4500
Output Speed [min^-1]: 71,00
Output Torque [Nm]: 435
Max. Motor Speed [rpm]: 6000
Max. Motor Torque [Nm]: 5,00
Motor Frequency [Hz]: 61,0
Nominal Torque [Nm]: 2,70
Cyclic Duration Factor: S1
Maximum Motor Voltage [V]: 500
System Voltage [V]: 400
Motor Voltage [V]: 329 Star
Nominal Current [A]: 1,63
Thermal cl.[°C]/Enclosure [IP]: 155(F) / 54
Ambient Temperature Min. [°C]: -20
Ambient Temperature Max. [°C]: 40
Brake Voltage [V]: 230 AC
Torque [Nm]: 5
ISO Code: CLP 220
Lubricant Type: Miner.Oil
Lubricant Volume [l]: 1,90

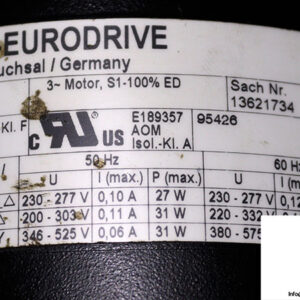

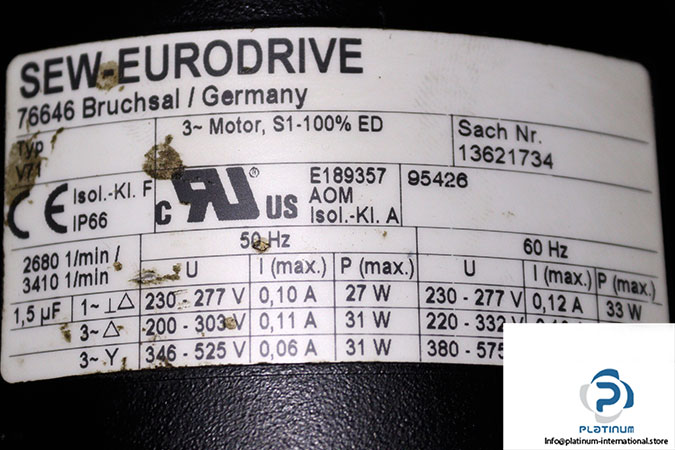

Attachment: SEW V71 Fan
Manufacturer: Sew
Type: V71
Model: Fans
Rated Voltage at 50Hz [V]: 230-277/200-303/346-525
Max. Current at 50Hz [A]: 0.1/0.11/0.06
Max. Power at 50Hz [W]: 27/31/31
Rated Voltage at 60Hz [V]: 230-277/200-332/380-575
Max. Current at 60Hz [A]: 0.12/0.10/0.06
Max. Power at 60Hz [W]: 33/29/29
Rated Speed [rpm]: 2680/3410
Frequency [Hz]: 50/60
Type Phase: 1 Phase Delta/ 3 Phase Delta/ 3 Phase Star
Insulation Class: F
Protection Class [IP]: 66
