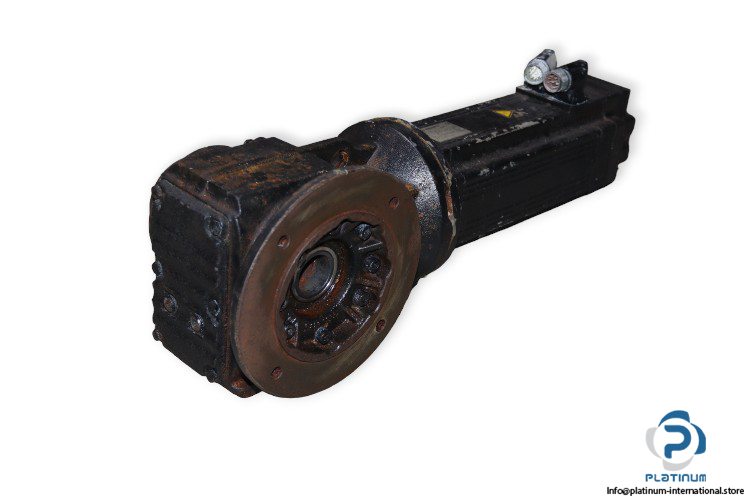

SEW KHF47 CMPZ71L/BY/KY/RH1M/SB1 Bevel-Helical Servo Gearmotor

SEW KHF47 CMPZ71L/BY/KY/RH1M/SB1 BEVEL-HELICAL SERVO GEARMOTOR

The SEW KHF47 CMPZ71L/BY/KY/RH1M/SB1 Bevel-Helical Servo Gearmotor is designed for high-performance applications, offering precision, durability, and efficiency. With a total ratio of 10.56, a rated voltage of 400 V, and robust torque capabilities, this gearmotor ensures reliable operation in demanding environments.

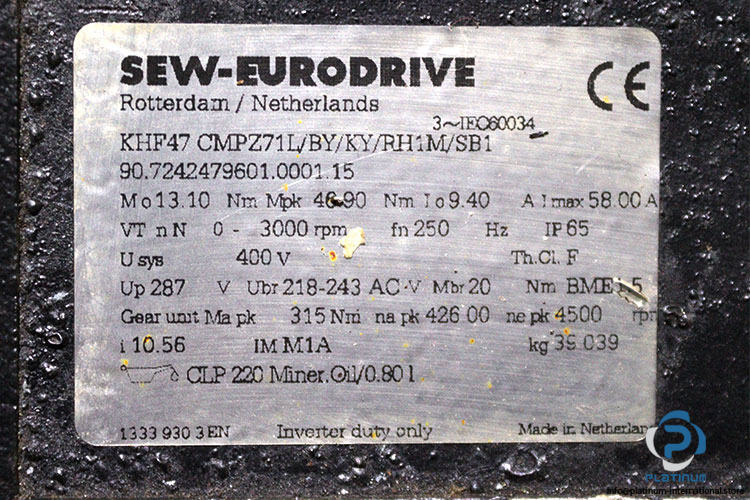

Manufacturer: SEW

Type: Bevel-Helical Servo Gearmotor

Model: KHF47 CMPZ71L/BY/KY/RH1M/SB1

Part No.: 90.7242479601.0001.15

Technical Specifications

• Total Ratio [i]: 10.56
• Mounting Position [IM]: M1A
• Rated Voltage: 400 V
• Input Speed: 3000 RPM
• Output Speed: 284 RPM
• Stall Torque: 13.10 Nm
• Peak Torque: 46.90 Nm
• Stall Current: 9.40 A
• Max Current: 58 A
• Max. Permitted Frequency: 250 Hz
• Thermal Class: F
• Lubricant: CLP 220 MINER OIL / 0.80 L
• Protection Class: IP65
• Attached with: KHF47 Bevel-Helical Gear
• Maximum Permitted Output Torque for Short-Time Duty [Ma pk]: 315 Nm
• Maximum Permitted Output Speed for Short-Time Duty [na pk]: 426 RPM
• Maximum Permitted Input Speed for Short-Time Duty [ne pk]: 4500 RPM
