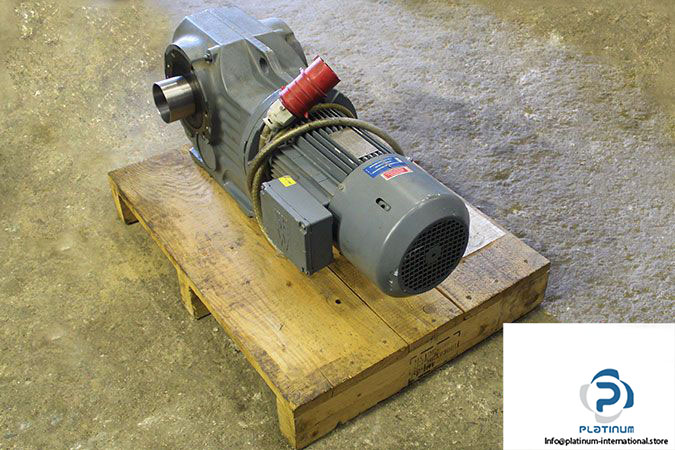

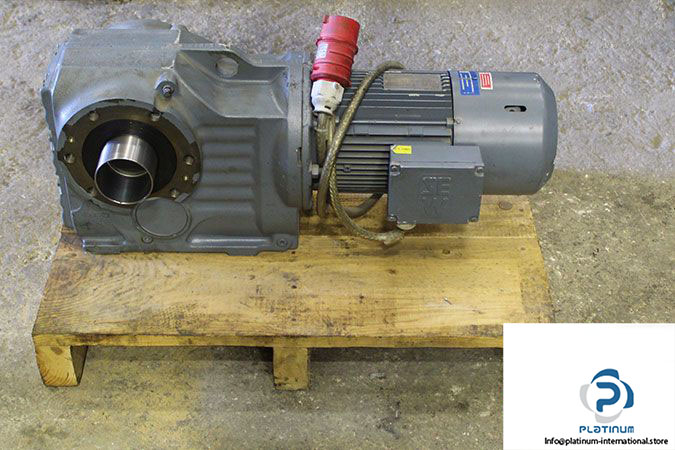

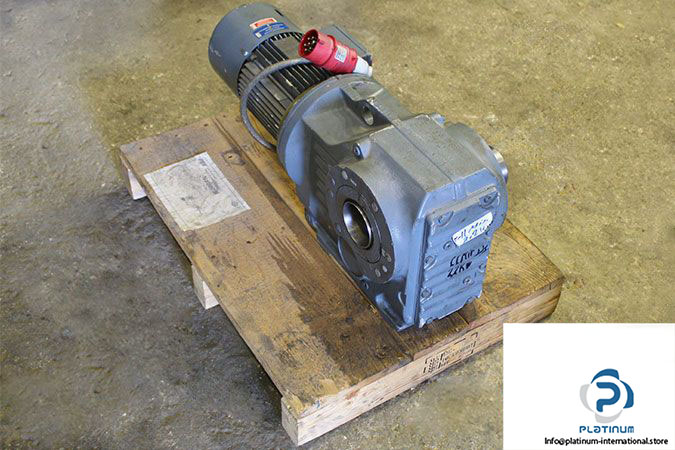

SEW KT87/T DV100M4/BMG/HR/TF Helical-Bevel Gear Motor

Manufacturer: Sew Eurodrive

Type: Helical-bevel Gear Motor

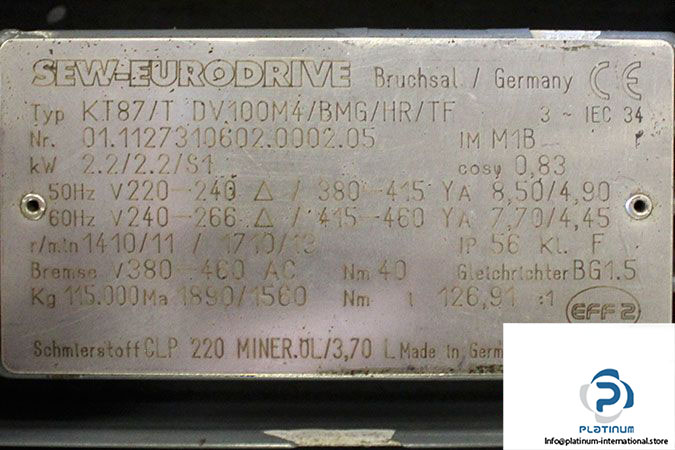

Model: KT87/T DV100M4/BMG/HR/TF

Consist of:

SEW DT90L4 ELECTRIC MOTOR

At 50 Hz

At Star Connection

• Rated Voltage: 380…415 V
• Rated Current: 9 A

At Delta Connection

• Rated Voltage: 220…240 V
• Rated Current: 5 A

Rated Power: 2.2 kW

Rated speed: 1410/11 min^-1

At 60 Hz

At Star Connection

• Rated Voltage: 415…460 V
• Rated Current: 45 A

At Delta Connection

• Rated Voltage: 240…266 V
• Rated Current: 7 A

Rated Power: 2.2 kW

Rated speed: 1710/13 min^-1

SEW BMG4 ELECTRIC BRAKE

Rated Voltage: 380…460 V

Maximum Braking Torque: 40 Nm

Reduced Braking Torque: 24…30 Nm

Braking Work Until Service: 260*10⁶ J

Brake Application Time for Cut-Off in The Ac Circuit: 15*10^-3 sec

Brake Application Time for Cut-Off in The Dc and Ac Circuit: 80*10^-3 sec

Braking Power: 50 W

Transmission Ratio: 126.91

Hollow Shaft Diameter: 80 mm

Insulation Class: F

Power Factor: 0.83

Protection Class: IP56

Gross Weight: 115.6 kg
