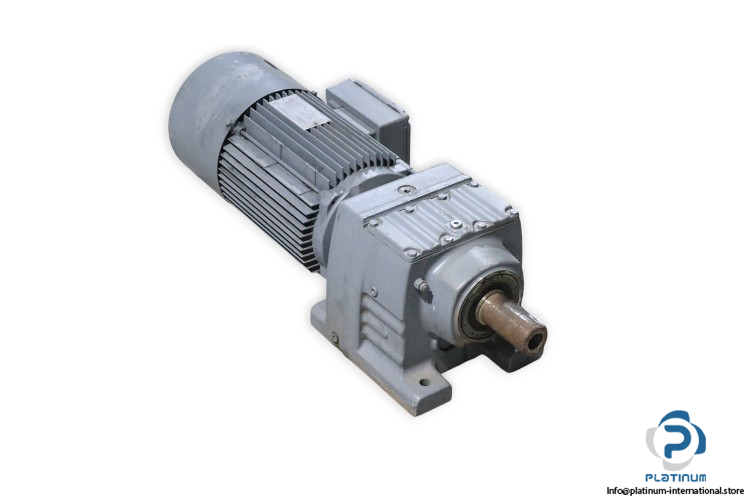

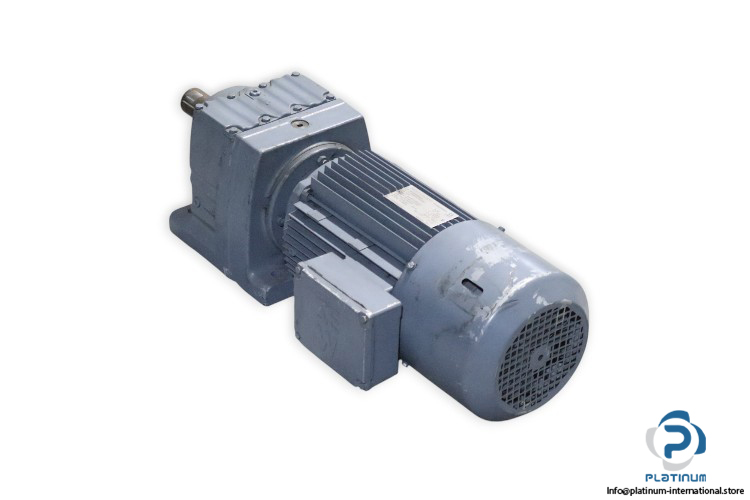

SEW R67 DV100L4/BMG/TF Helical Gearmotor
New
In stock1 unitReady to ship
HELICAL GEARMOTOR
SEW R67 DV100L4/BMG/TF helical gearmotor with 3 kW power, 12.70 gearbox ratio, IM M1 mounting, brake rectifier BGE 1.5, and IP54 protection.01.1299487101.0001X091.512.703kWBGEBrakeDV100L4/BMG/TFGearedGearmotorHelicalIMIndustrialIP54M1motorR67ratioRectifierSew
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SEW R67 DV100L4/BMG/TF Helical Gearmotor
The SEW R67 DV100L4/BMG/TF is a powerful helical gearmotor designed for industrial applications requiring high efficiency and durability. With optimized gearbox ratio, integrated brake, and robust IP54 protection, it ensures reliable performance under demanding operating conditions.

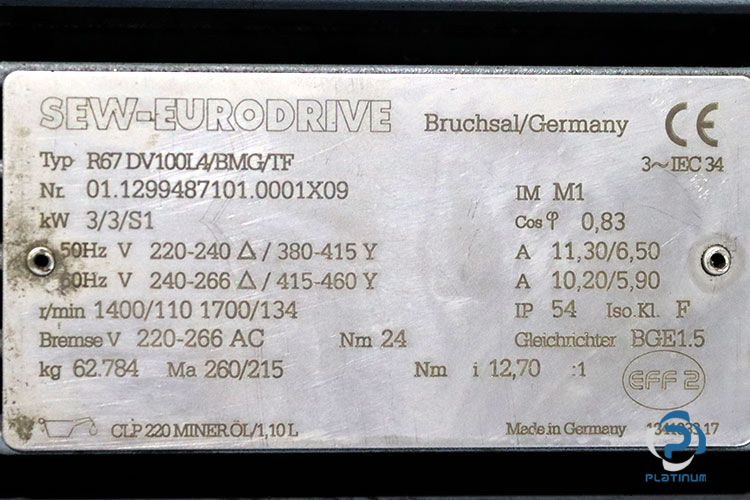

Manufacturer: SEW
Type: Helical Gearmotor
Model: R67 DV100L4/BMG/TF
Part No.: 01.1299487101.0001X09
Frequency / Connection:
Current (A):
Speed (r/min):
| Power (kW) | 3 kW (50 Hz and 60 Hz) |
| 50 Hz | 220 - 240 V (Δ) / 380 - 415 V (Y) |
| 60 Hz | 240 - 266 V (Δ) / 415 - 460 V (Y) |
| 50 Hz | 11.30 / 6.50 A |
| 60 Hz | 10.20 / 5.90 A |
| 50 Hz | 1400 / 110 rpm |
| 60 Hz | 1700 / 134 rpm |
| Cos φ (Power Factor) | 0.83 |
| Brake Voltage / Torque | 220 “ 266 V / 24 Nm |
| Protection Class | IP54 |
| Insulation Class | F |
| Mounting | IM M1 |
| Gearbox Ratio (i) | 12.70 |
| Rectifier Type | BGE 1.5 (brake rectifier) |
| Lubricant | CLP 220 Mineral Oil, 1.10 L |
