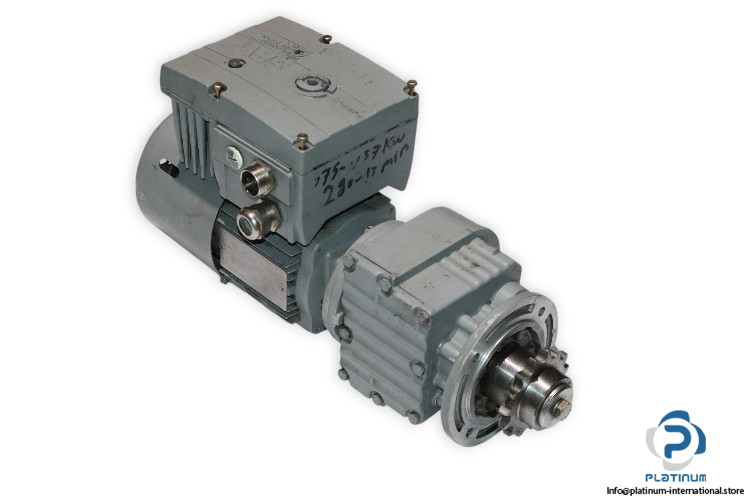

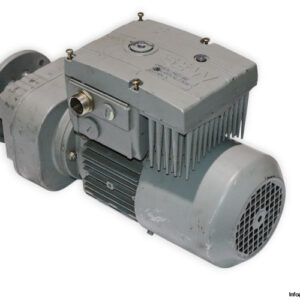

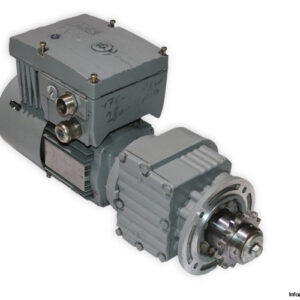

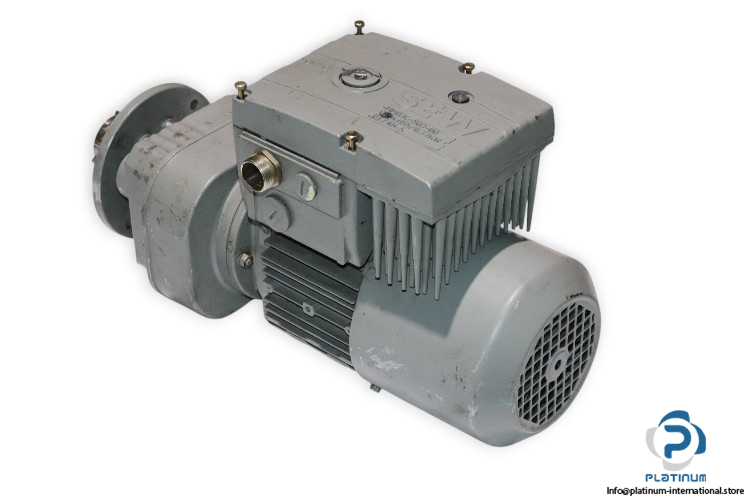

SEW RF27 DT71D4/BMG/MM03 HELICAL-GEARMOTOR
The SEW RF27 DT71D4/BMG/MM03 Helical-Geared Motor is designed for efficient power transmission in industrial applications. It offers a total ratio of 22.32, with input speeds from 280 to 1400 r/min and output speeds from 13.0 to 63.0 r/min, providing precision and reliability across a range of tasks. Equipped with the SEW MOVIMOT inverter drive, this motor ensures smooth operation with a 56 Nm output torque and a service factor of 2.30.
Manufacturer: SEW
Type: Helical-gearmotor

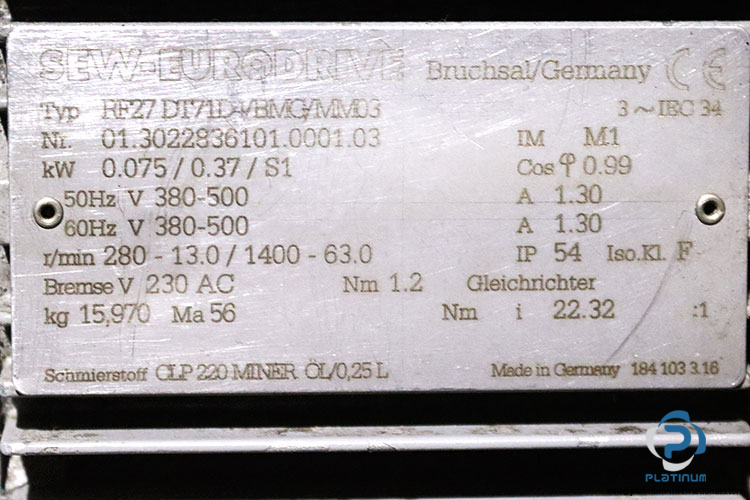

Model: RF27 DT71D4/BMG/MM03
Part No: 01.3022836101.0001.03
Technical Specifications
- Gear Unit: RF27
- Input Speed [r/min]: 280 – 1400
- Output Speed [r/min]: 13.0 – 63.0
- Total Ratio: 22.32
- Output Torque [Nm]: 56
- Service Factor SEW-FB: 2.30
- Mounting Position: M1
- Lubricant / Volume [l]: CLP 220 0.25
- Output Shaft End: 25x50mm lg.
- Flange: 140 mm
- Motor Power [kW]: 0.075 / 0.37
- Motor Frequency [Hz]: 50
- Cyclic Duration Factor S1-S10: S1
- Multi Range-Voltage 50Hz [V]: 380-500
- Multi Range-Voltage 60Hz [V]: 380-500
- MM Rated Main Current [A]: 1.30
- MM Rated O/P Current [A]: 1.60
- Thermal Class [°C] / Enclosure [IP]: (F) / 54
- Brake Voltage [V] / Torque [Nm]: 230 AC / 1.2
- Multi Range-Voltage Brake [V]: 230 AC

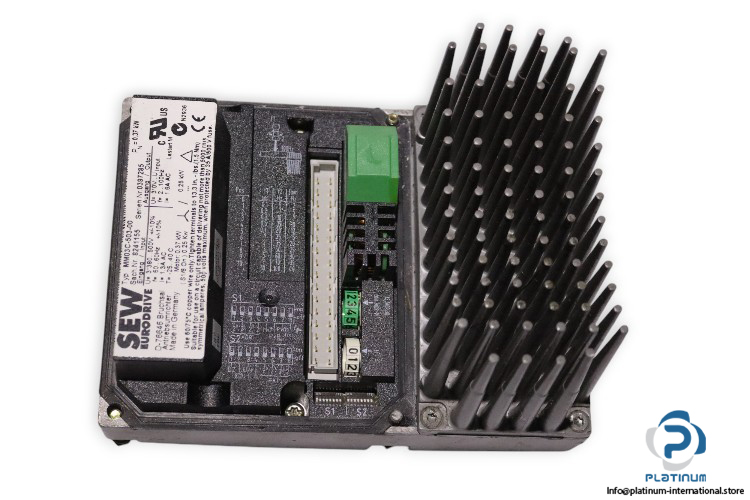

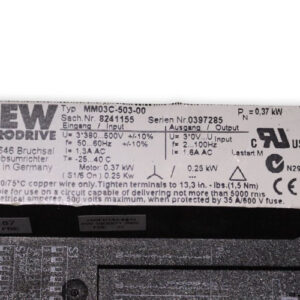

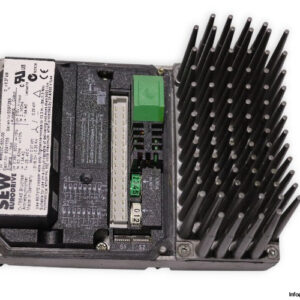

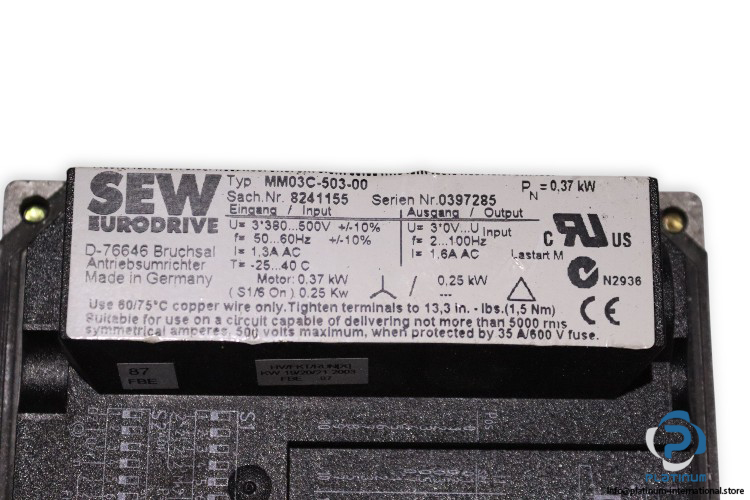

- Attached With: SEW MM03C-503-00 MOVIMOT INVERTER DRIVE
Input Specifications
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.3 A
- Frequency: 50 / 60 Hz
Output Specifications
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 1.6 A
- Frequency: 2 to 100 Hz
