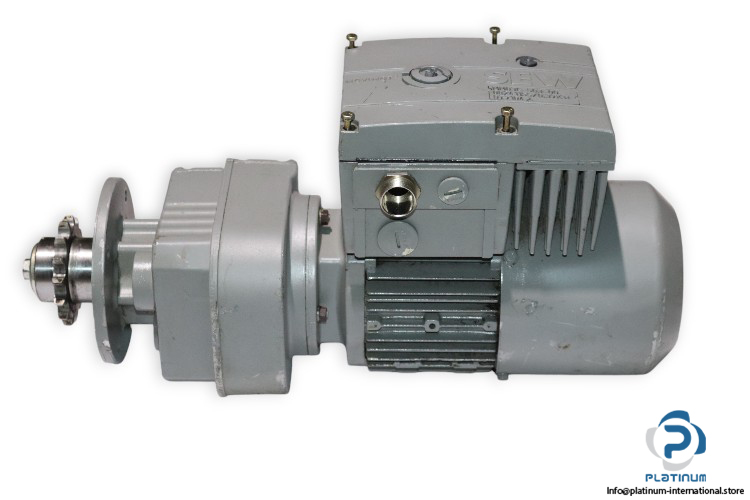

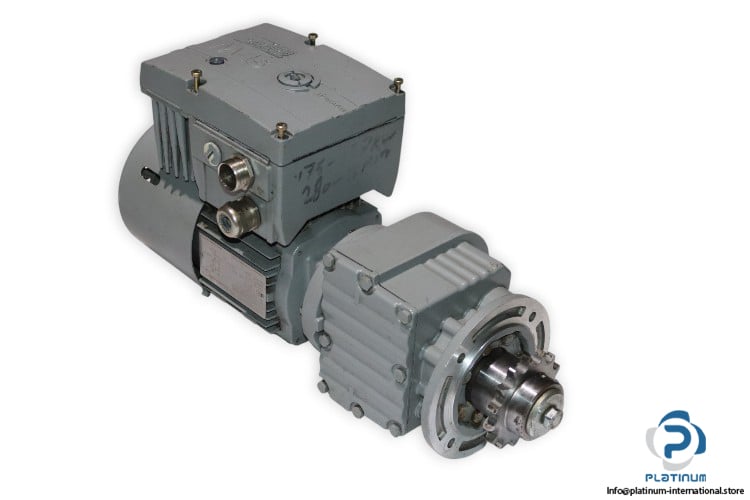

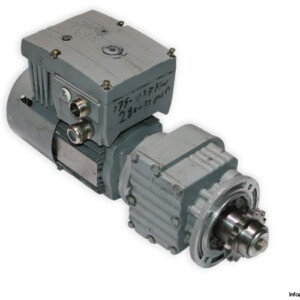

SEW RF27 DT71D4_BMG_MM03 Helical Gear Motor

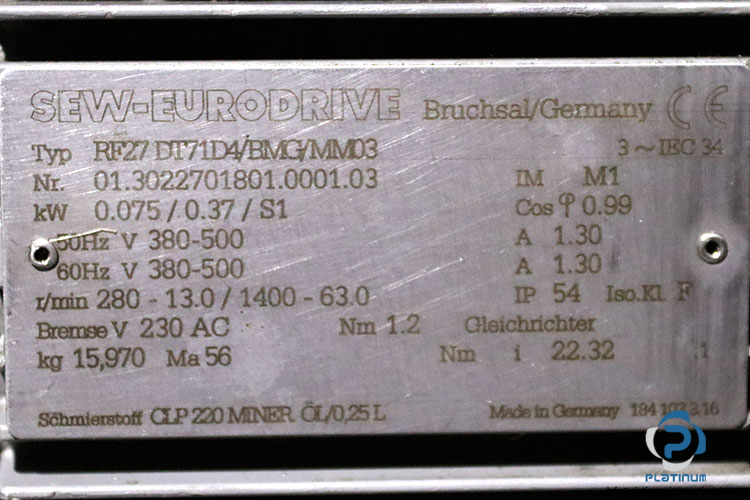

Model: RF27 DT71D4/BMG/MM03
Manufacturer: Sew-Eurodrive
Type: Helical Gear Motor
Model: RF27 DT71D4/BMG/MM03
Part Number: 01.3022701801.0001.03
Inverter Type: MM03C-503-00
Gear Unit: RF27
Input Speed (r/min): 280-1400
Output Speed (r/min): 13-63
Total Ratio (i): 22,32
Output Torque (Nm): 56
Service Factor SEW-FB: 2,3
Mounting Position: M1
Lubricant / -Volume (l): CLP 220 0,25
Motor Power (kW): 0.075 / 0,37
Motor Frequency (Hz): 50
Cyclic Duration Factor: S1
Motor Voltage 50Hz (V): 380-500
Motor Voltage 60Hz (V): 380-500
MM Rated Main Current (A): 1,3
MM Rated OP Current (A): 1,6
Thermal class/Enclosure (IP): F/54
International efficiency class: IEC34-1
Ambient temperature motor (°C): -25 BIS +40
Acc. feat. brake/brake release: BMG
Brake voltage [V]/-torque (Nm): 230 AC / 1,2
Brake rectifier: without

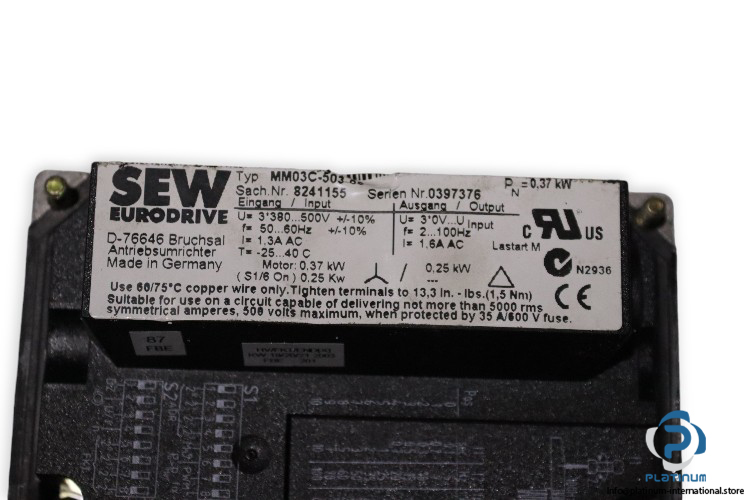

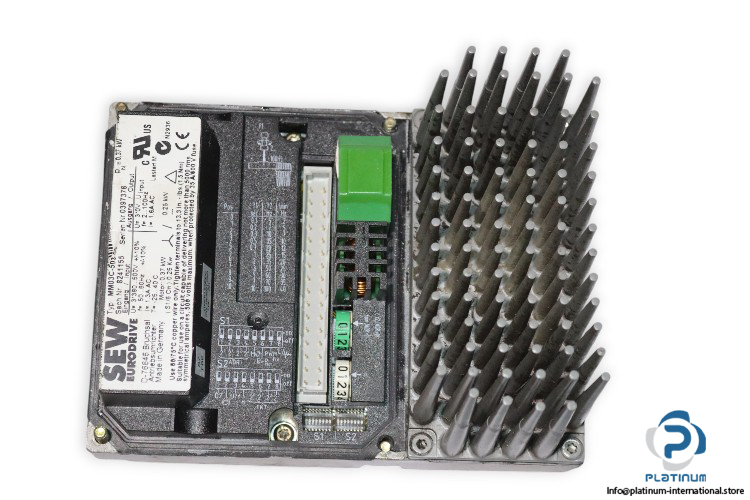

Inverter Type: MM03C-503-00
System: FREQUENCY INVERTER
Motor Power (Kw): 0,37
Rated Voltage Input (V): 3X380-500 +/-10%
Rated Current Input (A): 1,3
Frequency Input (Hz): 50-60
Ambient Temperature Inverter (°C): -25 – +40
Rated Voltage Output (V): 3×0 – U input
Rated Current Output (A): 1,6
Frequency Output (Hz): 2-100
