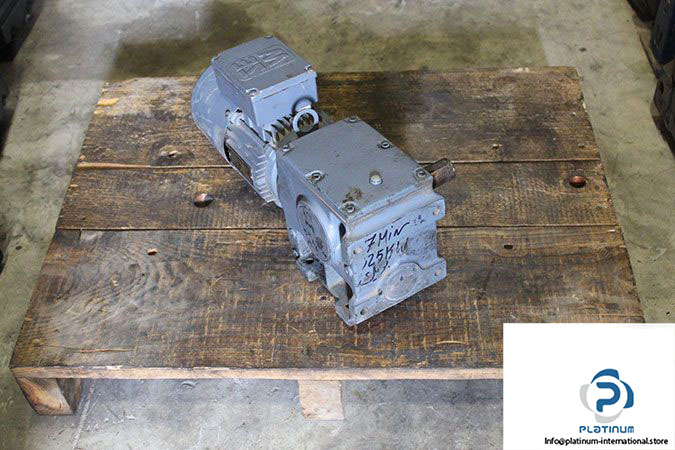

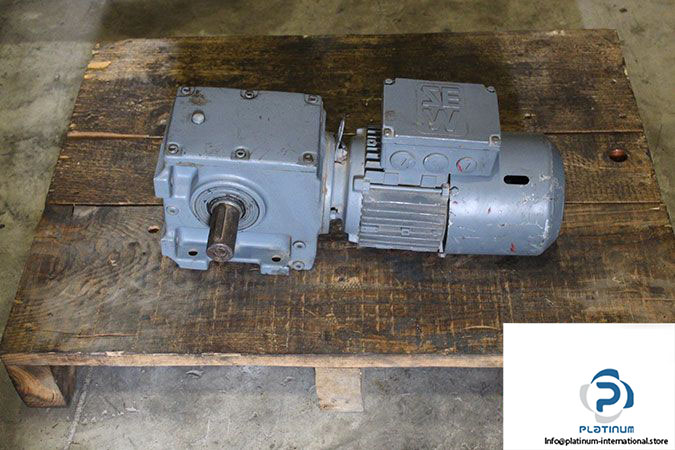

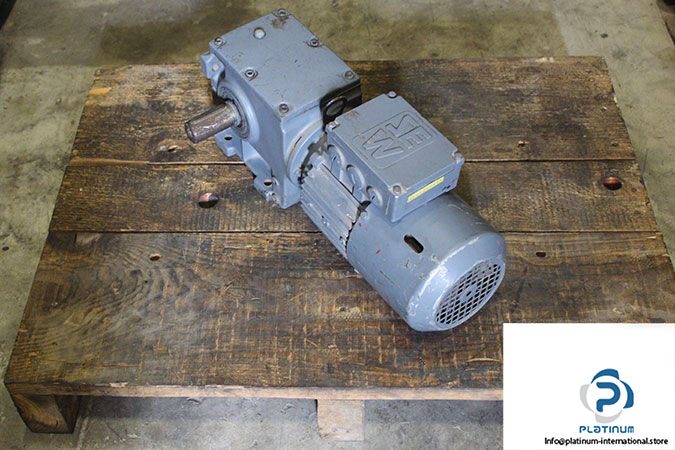

SEW S52 DT/10-4BM Helical Worm Gearmotor

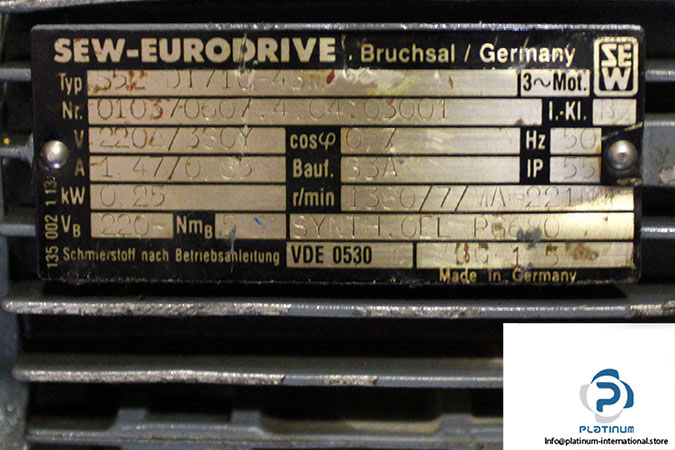

Manufacturer: Sew-Eurodrive

Type: Helical Worm Gearmotor

Model: S52DT/10-4BM

Sew S52 Gear

Gear Type (S): Helical Worm Gear Unit, Foot-Mounted

Gear Box Size: 52

Ratio: 197.14

Rated Torque: 221 Nm

Shaft Diameter: 30 mm

Gear Unit Output Speed: 7 r/min

Lubrication: SYNTH.OIL PG680

Oil Quantity: 1.5 L

Sew DT/10-4BM AC Motor

Motor Size: 10

No. of Pole: 4

Nominal Voltage (Delta): 220 V

Nominal Voltage (Star): 380 V

Rated Current (Delta): 1.47 A

Rated Current (Star): 0.85 A

Rated Power: 0.25 Kw

Frequency: 50 Hz

Motor Speed: 1380 r/min

Power Factor: 0.70 %

Insulation Class: B

Mounting Position: B3A

Degree of Protection: IP55

Brake Voltage: 220 V

Brake Torque: 5 Nm

Double-Disc, Spring-Loaded Brake

Gross Weight: 24 kg
