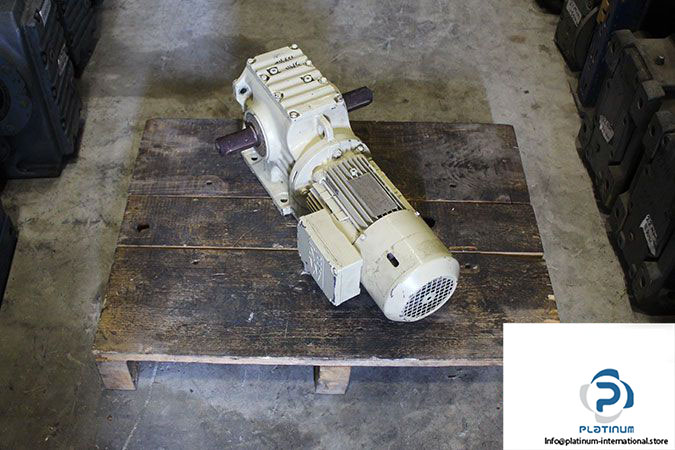

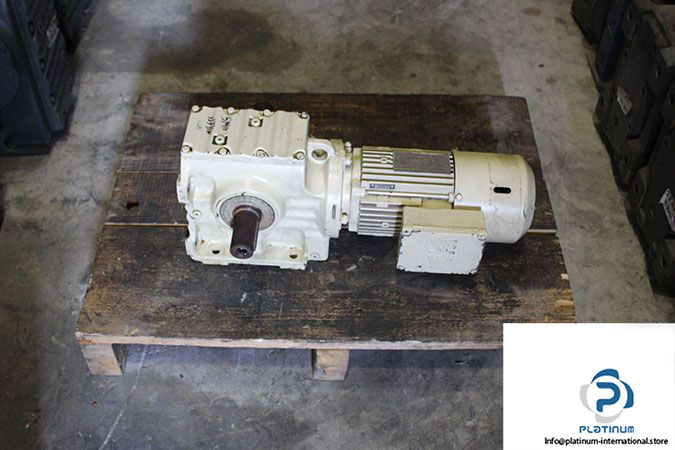

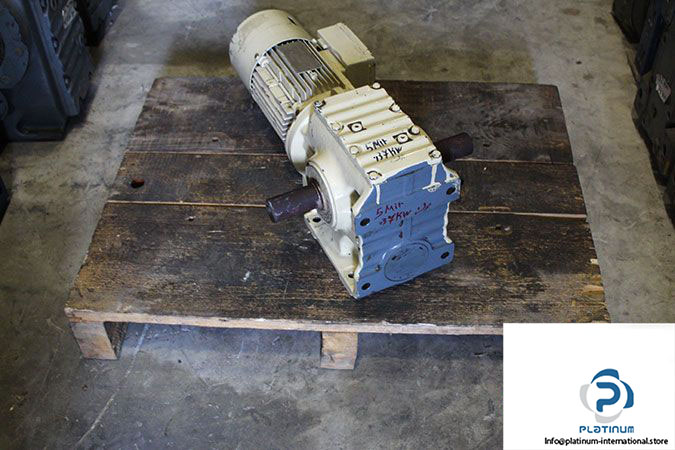

SEW S67 DT80K6/BMG Helical-Worm Gearmotor

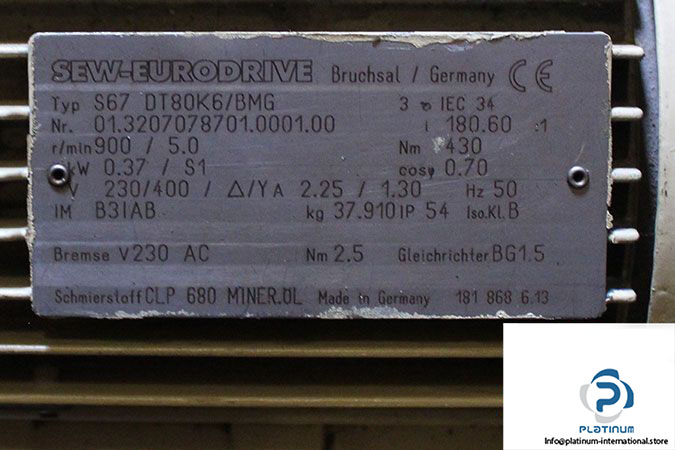

Manufacturer: Sew-Eurodrive
Type: Helical Worm Gear Motor
Model: S67DT80K6/BMG
Serial Number: 01.3207078701.0001.00
Speed [r/min]: 900 / 5.0
Total Ratio [i]: 180.60
Output Torque [Nm]: 430
Service Factor SEW-FB: 1.3 / 0.00
Mounting Position: M4A
Lubricant Volume [I]: 3.2
Output Shaft End: 35×70 mm
Design: Foot-Mounted Version
Motor Power [kW]: 0.37
Motor Frequency [Hz]: 50
Motor Size: 80
Number of Pole: 6
Cyclic Duration Factor: S1
Motor Voltage [V] / Conn. Type: 230/400 Delta/Star
Rated Current [A]: 2.25 / 1.3
Power Factor: 0,70
Thermal Class: B
Enclosure [IP]: 54
Electrical Regulation: IEC34-1
Ambient Temperature Motor [°C]: -25 BIS +40
Acc. Feat. Brake/Brake Release: BMG
Brake Voltage [V]: 230 AC
Torque [Nm]: 2.5
Multi Range-Voltage Brake [V]: 230 AC
Brake Rectifier: BG1.5
