SEW SA47/T DT80N4/BMG/MM11 Helical-Worm Gearmotor
Used
In stock1 unitReady to ship
SEW Helical-Worm Gearmotor SA47/T DT80N4/BMG/MM11 “ 24-240 r/min output speed, 36/40 Nm torque, IP54, 380-500V, includes SEW MOVIMOT Inverter Drive for precise speed control.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

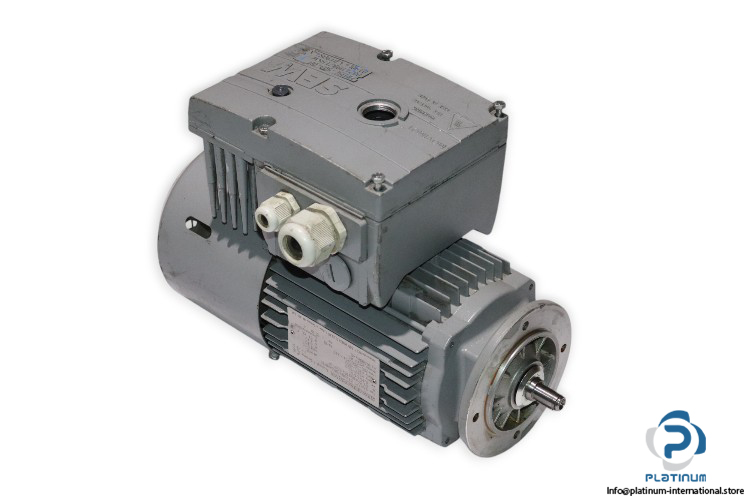

SEW Helical-Worm Gearmotor SA47/T DT80N4/BMG/MM11 with MOVIMOT Inverter Drive
The SEW Helical-Worm Gearmotor SA47/T DT80N4/BMG/MM11 is an efficient and reliable motor solution designed for industrial power transmission. With a robust gear unit and precise speed control, this gearmotor is ideal for heavy-duty applications. It comes with the SEW MM15C-503-00 MOVIMOT Inverter Drive for enhanced performance and energy efficiency.
Key Features and Specifications:

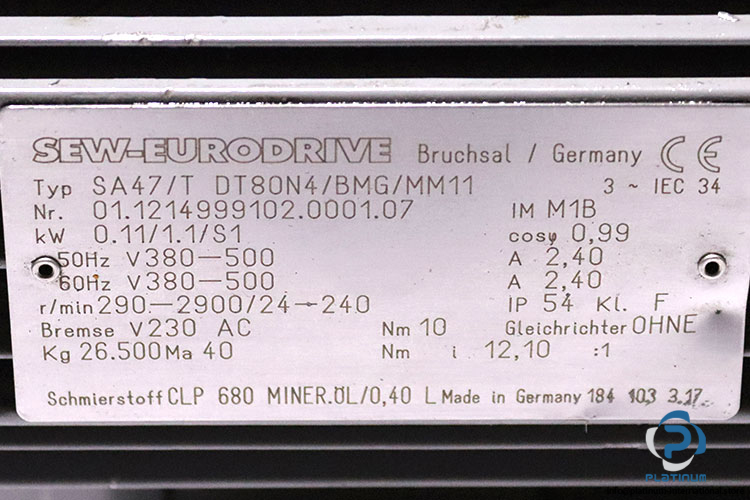

Gearmotor Specifications:
- Manufacturer: SEW
- Type: Helical-Worm Gearmotor
- Model: SA47/T DT80N4/BMG/MM11
- Part No.: 01.1214999102.0001.07
- Gear Unit: SA47/T
- Speed 50Hz [r/min]: 290 – 2900
- Output Speed [r/min]: 24 – 240
- Total Ratio: 12.10
- Output Torque [Nm]: 36 / 40
- Service Factor SEW-FB: 3.60 / 2.10
- Mounting Position: M1B
- Lubricant Type / Volume: CLP 680 Mineral Oil / 0.40L
- Hollow Shaft Diameter: 25 mm
- Design: Hollow Shaft
- Motor Power [kW]: 0.11 / 1.1
- Motor Frequency [Hz]: 100
- Cyclic Duration Factor: S1
- Multi-Range Voltage (50Hz): 380-500V
- Multi-Range Voltage (60Hz): 380-500V
- MM Rated Main Current [A]: 2.40
- MM Rated Output Current [A]: 3.20
- Thermal Class / Enclosure: (F) / IP54
- Brake Voltage / Torque: 230V AC / 10 Nm

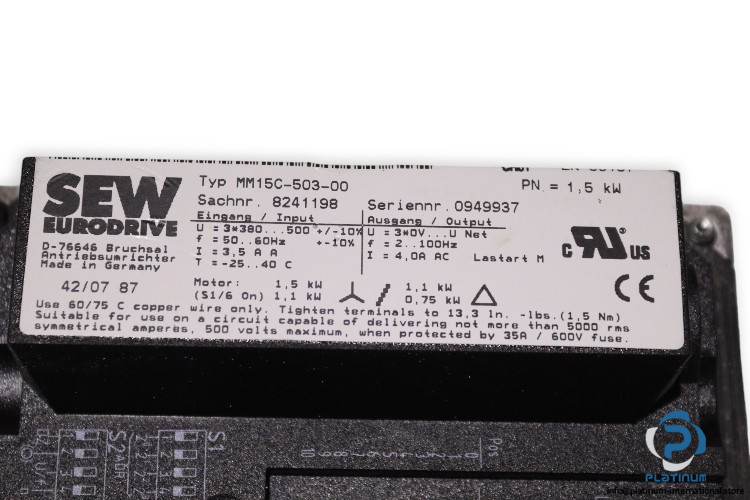

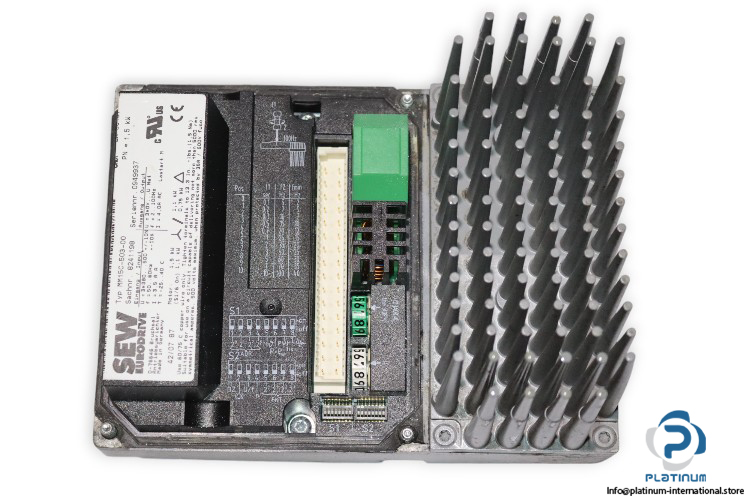

MOVIMOT Inverter Drive (SEW MM15C-503-00) Specifications:
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 3.5 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 4 A
- Frequency: 2 to 100 Hz
The SEW SA47/T DT80N4/BMG/MM11 is an excellent choice for industrial power transmission, providing efficient torque output, durability, and precise speed control when paired with the SEW MOVIMOT Inverter Drive.
