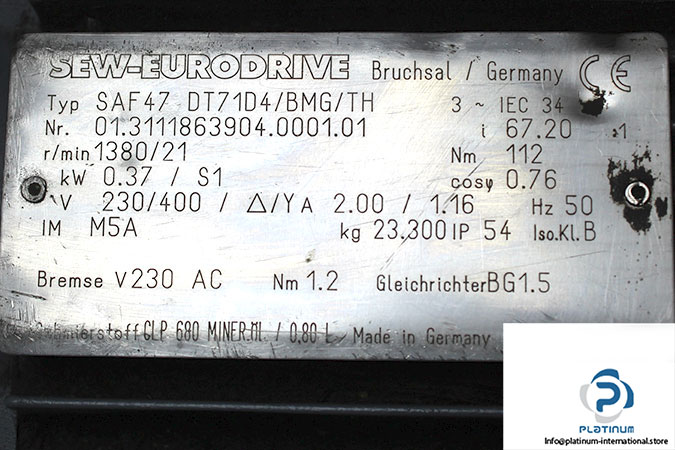

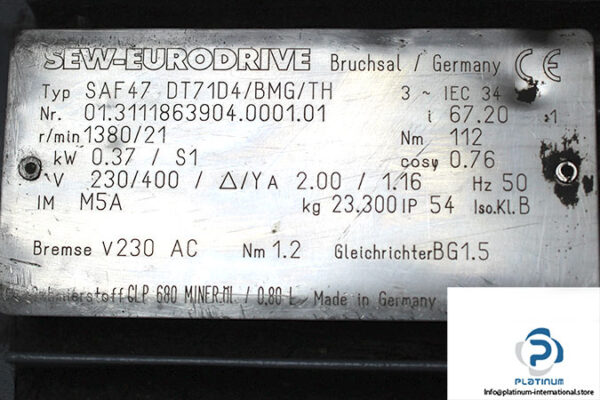

SEW SAF47 DT71D4/BMG/TH Gear Motor
Manufacturer: SEW
Type: Gear Motor
Model: SAF47DT71D4/BMG/TH
Part No.: 01.3111863904.0001.01
Motor Speed [r/min]: 1380/21.0
Ratio [i]: 67.2
Motor Power [kW]: 0.37
Motor Frequency [Hz]: 50
Cyclic Duration factor: S1
Motor Voltage [V]: 230/400 Delta/Star
Nominal Current [A]: 2.00/1.16
Cos Phi: 0,76
Rated Torque [Nm]: 112
Thermal Class/Enclosure [IP]: B/54
Brake: BG1.5
Brake Voltage [V]: 230
Brake Torque [Nm]: 1.2
Weight [kg]: 23,4
