SEW SF37 DT71D4/MM05/BW1 Helical-Worm Gearmotor
with MOVIMOT Inverter Drive “ 47/56 Nm torque, 290-2900 rpm, 0.55 kW motor, IP54, industrial-grade efficiency.

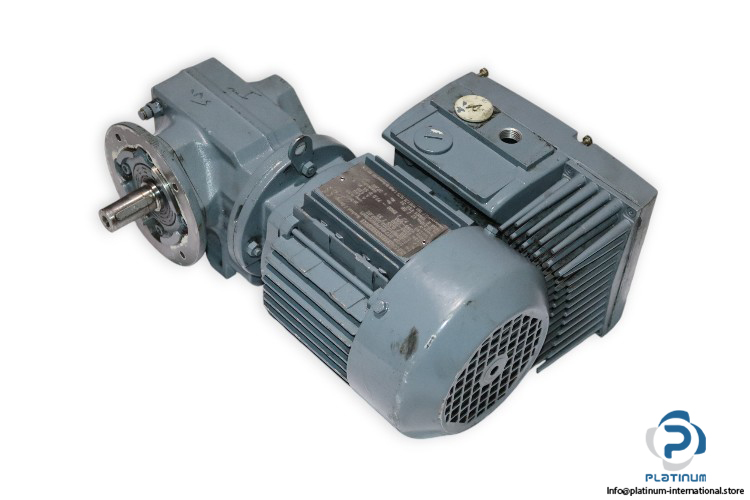

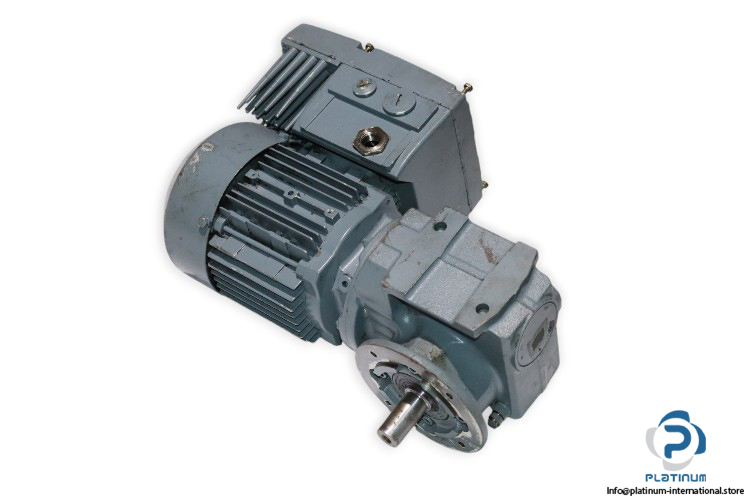

SEW Helical-Worm Gearmotor SF37 DT71D4/MM05/BW1 with MOVIMOT Inverter Drive
The SEW SF37 DT71D4/MM05/BW1 is a high-performance helical-worm gearmotor designed for industrial applications requiring efficient torque transmission and variable speed control. Engineered for durability, this gearmotor is equipped with a flange-mounted design, optimized lubricant volume, and an integrated SEW MM05B-503-00 MOVIMOT Inverter Drive for enhanced performance and flexibility.

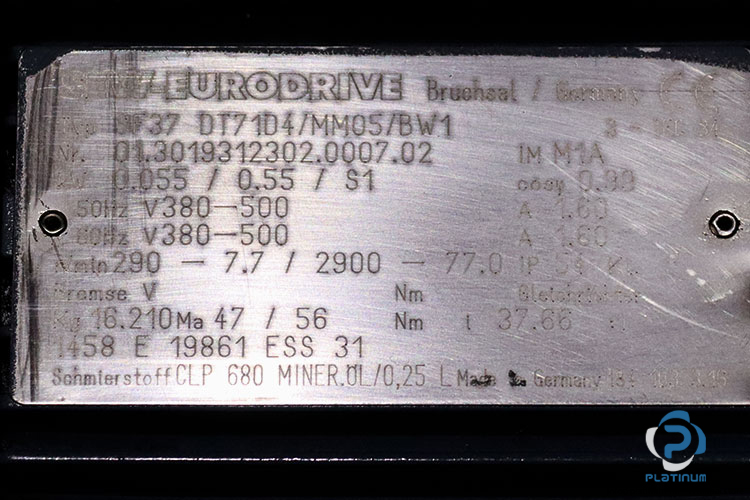

Gearmotor Specifications:
- Manufacturer: SEW
- Type: Helical-Worm Gearmotor
- Model: SF37 DT71D4/MM05/BW1
- Part No.: 01.3019312302.0007.02
- Gear Unit: SF37
- Speed 50Hz [r/min]: 290 – 2900
- Output Speed [r/min]: 7.7 – 77.0
- Total Ratio: 37.66
- Output Torque [Nm]: 47 / 56
- Service Factor SEW-FB: 1.95 / 1.20
- Mounting Position: M1A
- Lubricant Volume [l]: 0.25
- Output Shaft End: 20x40mm lg.
- Design: Flange-mounted
- Flange Size: 160 mm
- Motor Power [kW]: 0.055 / 0.55
- Motor Frequency [Hz]: 100
- Cyclic Duration Factor: S1
- Multi Range Voltage 50Hz [V]: 380-500
- Multi Range Voltage 60Hz [V]: 380-500
- MM Rated Main Current [A]: 1.60
- MM Rated Output Current [A]: 2.00
- Thermal Class [°C] / Enclosure [IP]: (F) / IP54

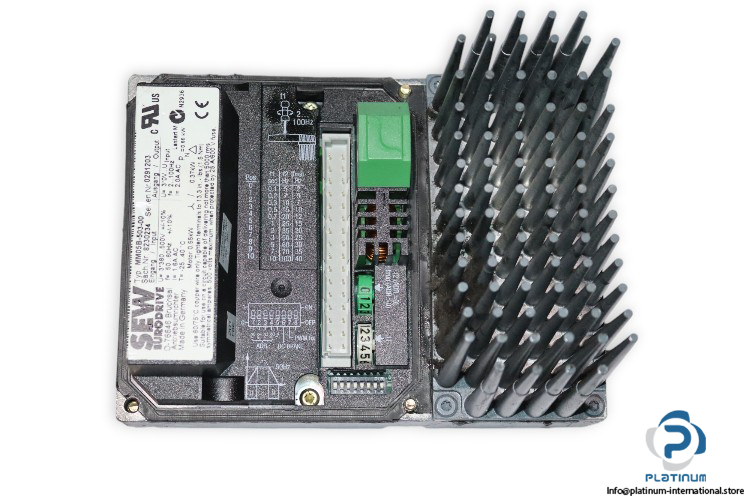

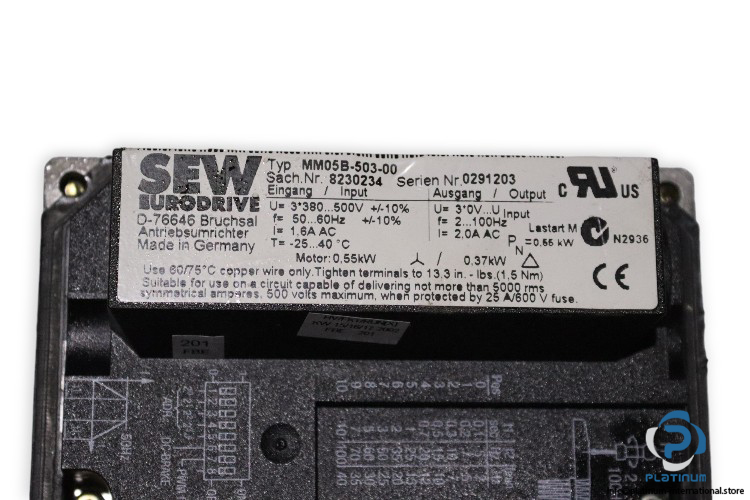

MOVIMOT Inverter Drive (SEW MM05B-503-00) Specifications:
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.6 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 2 A
- Frequency Range: 2 to 100 Hz
The SEW SF37 DT71D4/MM05/BW1 Helical-Worm Gearmotor with the integrated MOVIMOT Inverter Drive offers exceptional control, efficiency, and performance in industrial applications, making it an ideal choice for machinery that requires precise speed and torque management.
