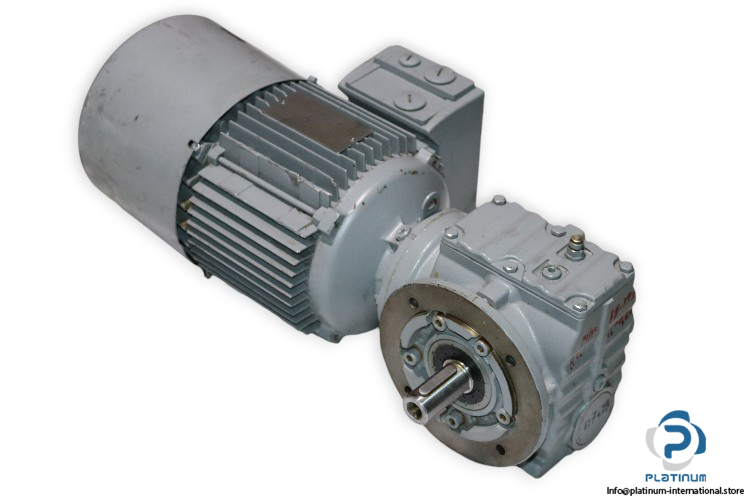

SEW SF47 DT90S4_BMG_MM11 Helical Worm Gear Motor

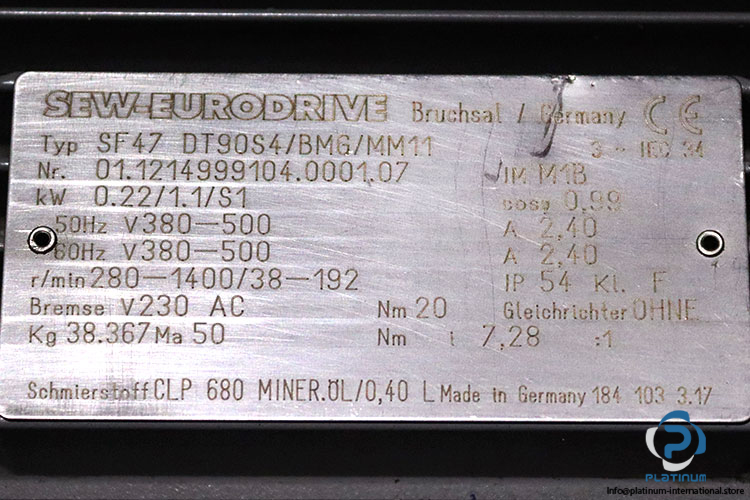

Model: SF47 DT90S4/BMG/MM11
Manufacturer: Sew-Eurodrive
Type: Helical Worm Gear Motor
Model: SF47 DT90S4/BMG/MM11
Part Number: 01.1214999104.0001.07
Inverter Type: MM11C-503-00
Gear Unit: SF47
Input Speed (r/min): 280-1400
Output Speed (r/min): 38-192
Total Ratio (i): 7,28
Output Torque (Nm): 47/50
Service Factor SEW-FB: 2,5/2,1
Mounting Position: M1B
Lubricant / -Volume (l): CLP 680 Miner.Oil / 0,40
Motor Power (kW): 0.22 / 1.1
Motor Frequency (Hz): 50
Cyclic Duration Factor: S1
Motor Voltage 50Hz (V): 380-500
Motor Voltage 60Hz (V): 380-500
MM Rated Main Current (A): 2,4
MM Rated OP Current (A): 3,2
Thermal class/Enclosure (IP): F/54
International efficiency class: IEC34-1
Acc. feat. brake/brake release: BMG/ without
Brake voltage [V]/-torque (Nm): 230 AC / 20
Brake rectifier: without

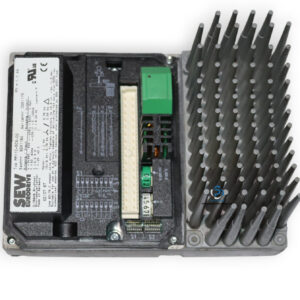

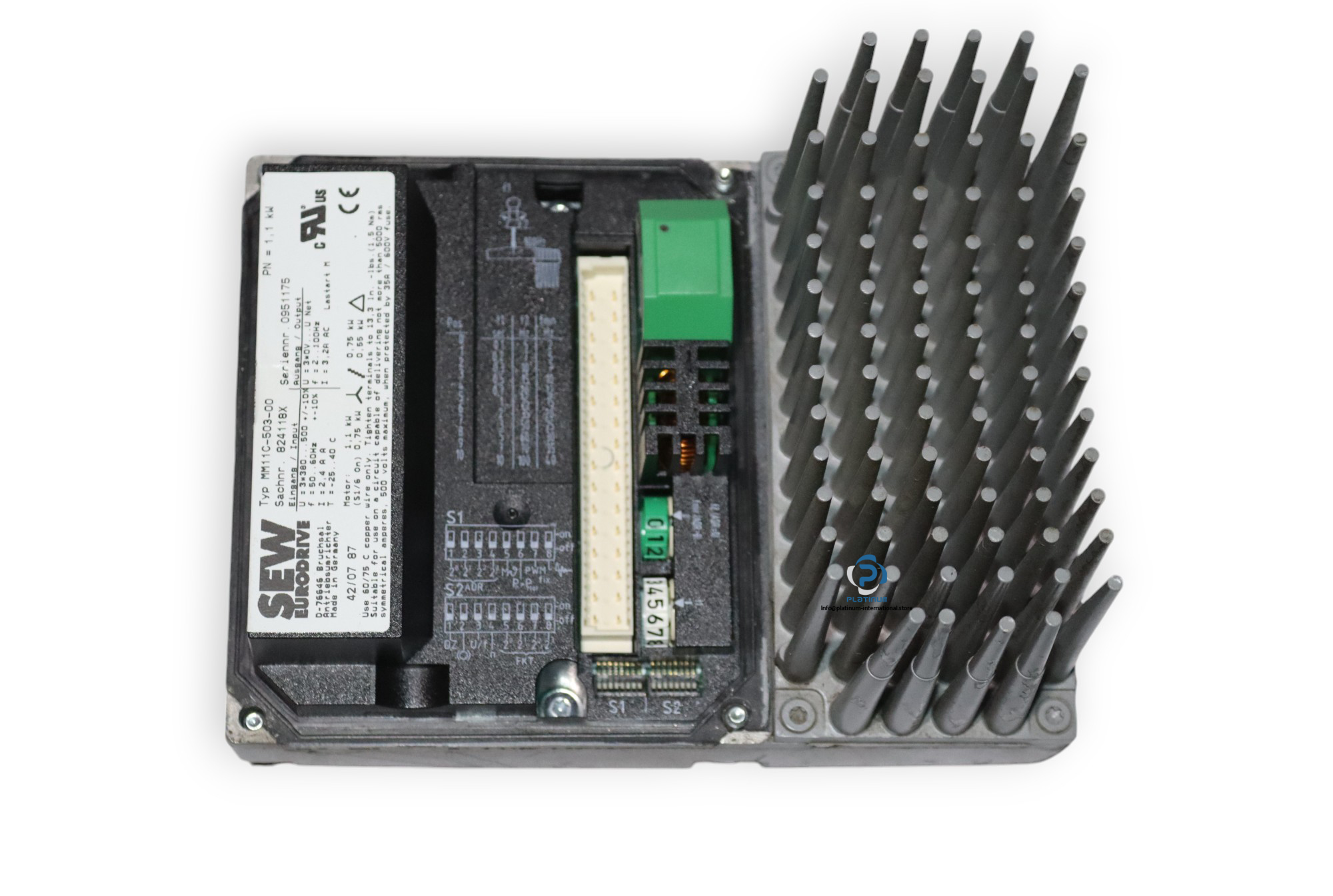

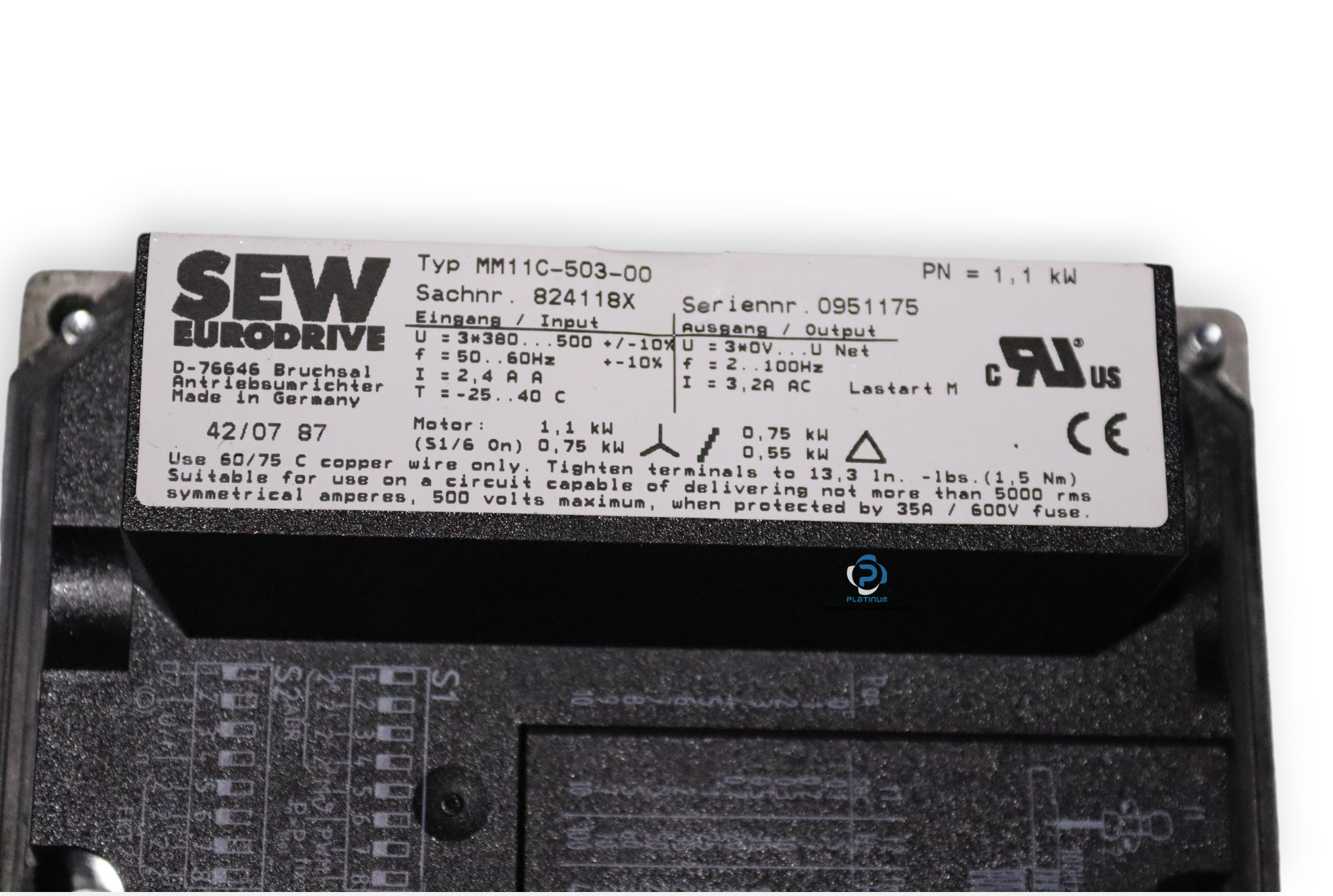

Inverter Type: MM11C-503-00
System: FREQUENCY INVERTER
Motor Power (Kw): 1,1
Rated Voltage Input (V): 3X380-500 +/-10%
Rated Current Input (A): 2,4
Frequency Input (Hz): 50-60
Ambient Temperature Inverter (°C): -25 – +40
Rated Voltage Output (V): 3×0 – U input
Rated Current Output (A): 3,2
Frequency Output (Hz): 2-100
