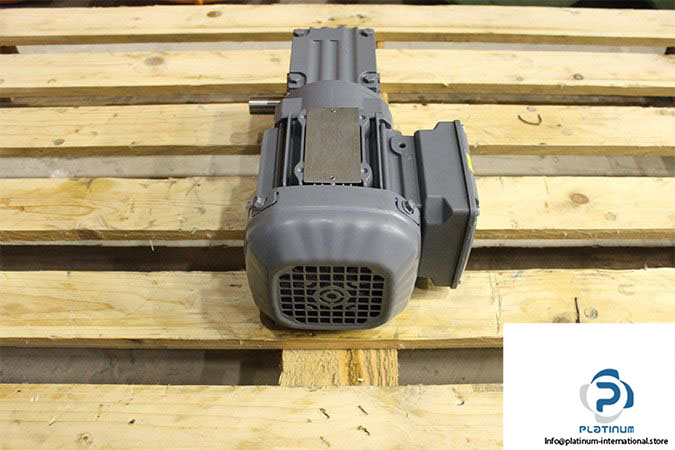

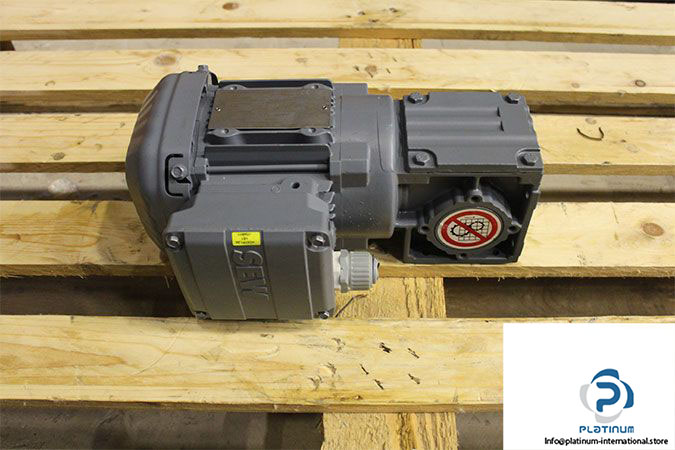

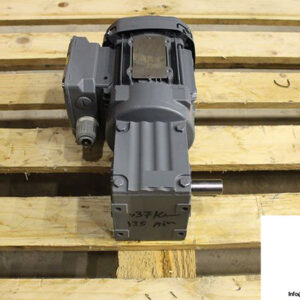

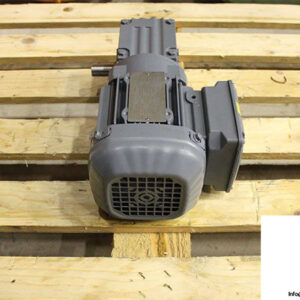

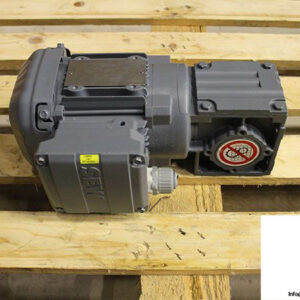

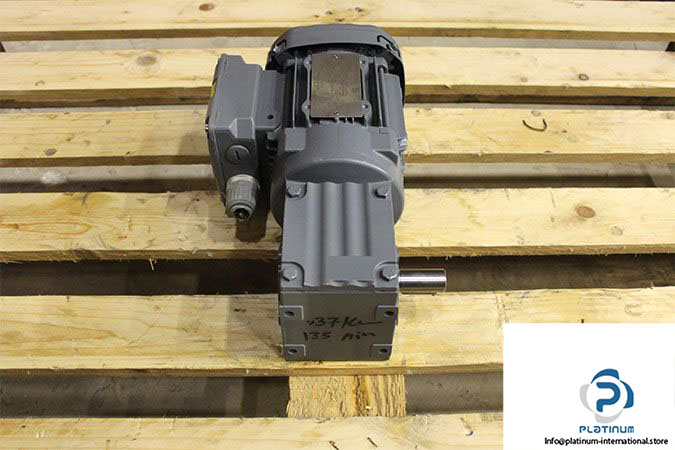

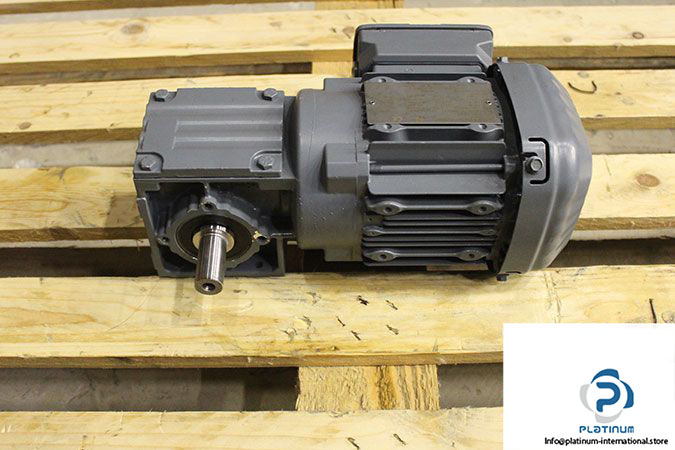

SEW W20 DRS71S4/Z Spiroplan Gearmotor

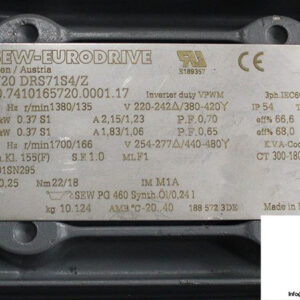

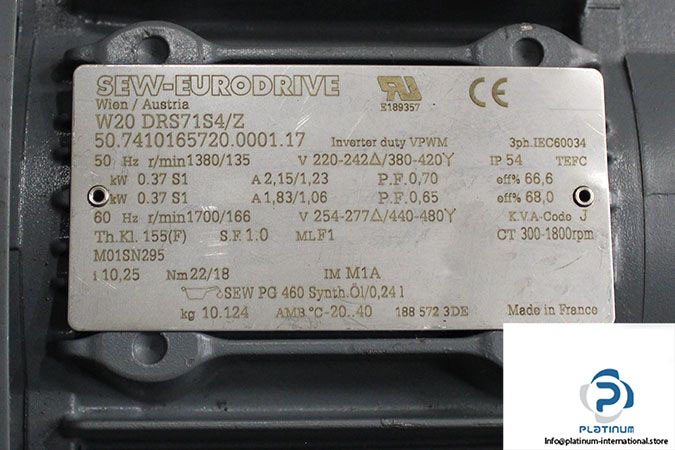

Manufacturer: Sew-Eurodrive
Type: Spiroplan Gear Motor
Model: W20DRS71S4/Z
Serial Number: 50.7410165720.0001.17
Speed 50Hz [r/min]: 1380 / 135
Speed 60Hz [r/min]: 1700 / 166
Total Ratio [i]: 10,25 / Finite
No. Of Teeth Nom./Denominator: 41/4
Output Torque 50Hz [Nm]: 22
Output Torque 60Hz [Nm]: 18
Service Factor SEW-FB: 1,15 / 1,40
Mounting Position: M1A
Lubricant / -Volume [L]: SEW PG 460 Synth.Oil / 0,24
Output Shaft End: 20×40 mm
Design: Foot-Mounted Version
Motor Power [kW]: 0.37
Cyclic Duration Factor: S1
Multi Range-Voltage 50Hz [V]: 220-242 Delta / 380-420 Star
Rated Current [A]: 2.15 / 1.23
Multi Range-Voltage 60Hz [V]: 254-277 Delta / 440-480 Star
Rated Current [A]: 1.83 / 1,06
Cos Phi: 0,70 / 0,65
Thermal Cl.[°C]/Enclosure [IP]: 155(F) / 54
Service Factor Motor: 1.0
International Efficiency Class: IE3
Efficiency 50Hz at 50/75/100% Pn [%]: 59,1 / 65,3 / 66,6
Efficiency 60Hz at 50/75/100% Pn [%]: 66,5 / 67,7 / 68,0
Design Specification: Europe (CE)/USA (UR)
Ventilation: Z = high-inertia flywheel fan
Terminal Box: Terminal Box Lower Part Made of Aluminum with Tapped Hole 1xM25, 1xM16
CT Speed Range: 300-1800RPM
Weight [kg]: 10.0
