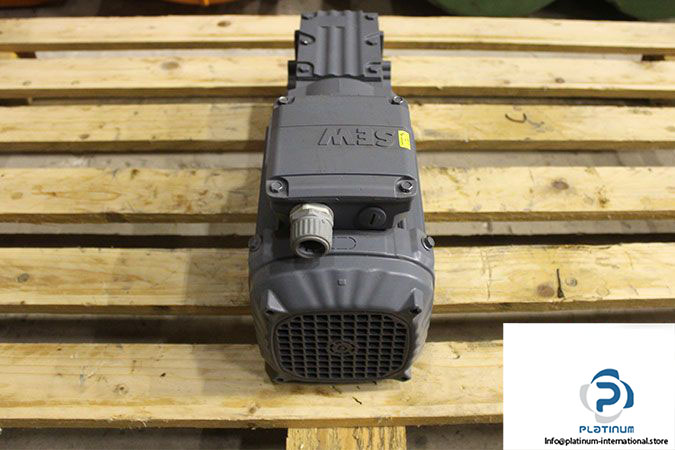

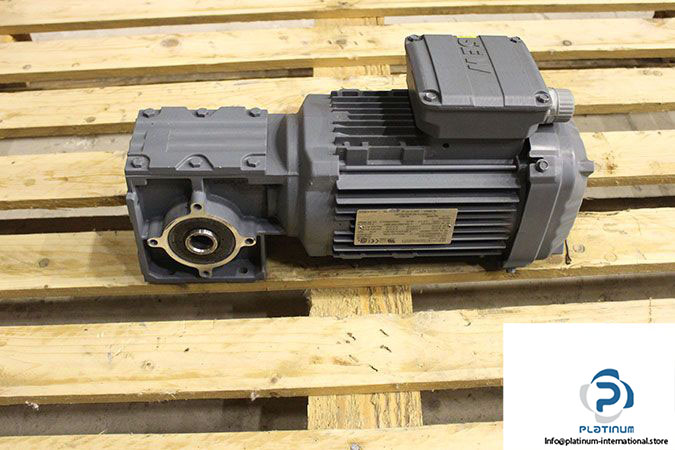

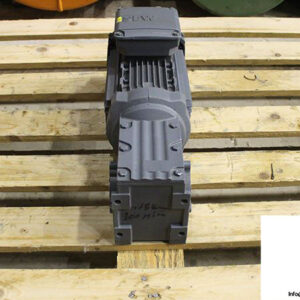

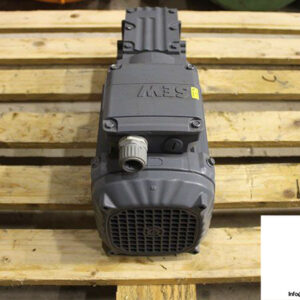

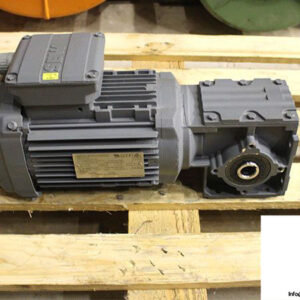

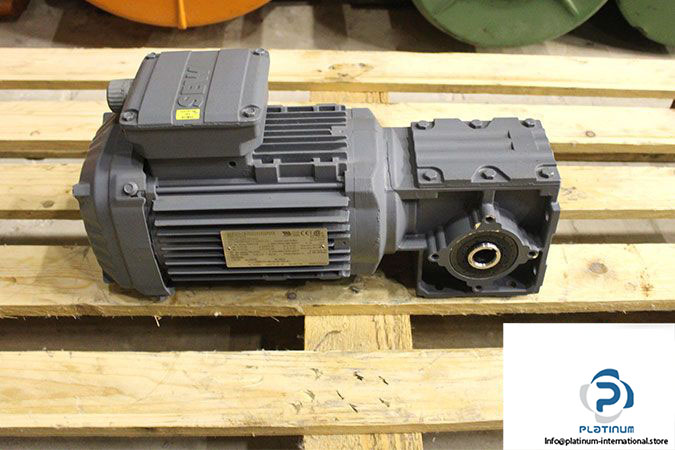

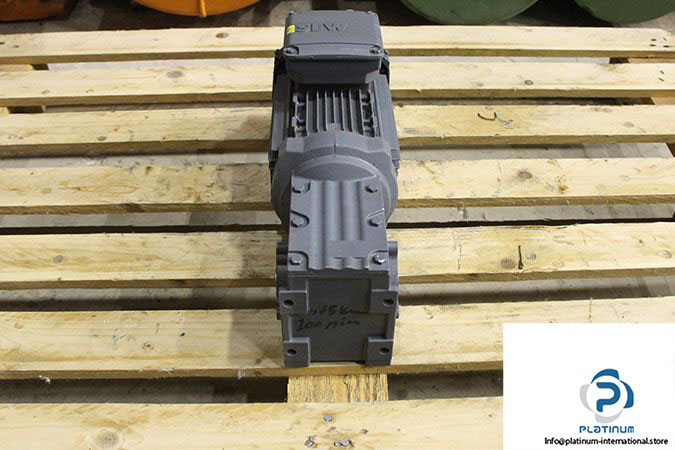

SEW W30 DRN80M4 Spiroplan Gearmotor
Manufacturer: Sew-Eurodrive
Type: Spiroplan Gear Motors
Model: W30DRN80M4

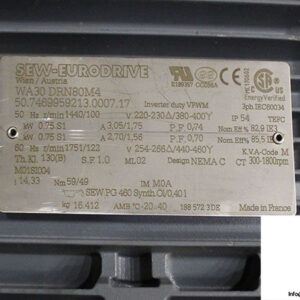

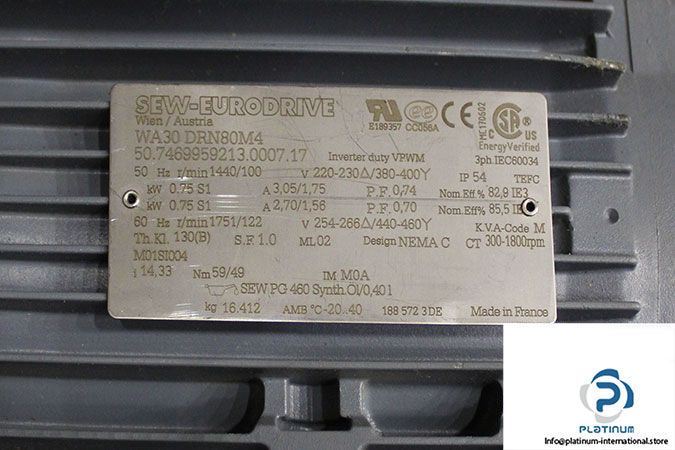

Serial Number: 50.7469959213.0007.17
Speed 50Hz [r/min]: 1440 / 100
Speed 60Hz [r/min]: 1751 / 122
Total Ratio [i]: 14.33 / Finite
Output Torque 50Hz [Nm]: 59
Output Torque 60Hz [Nm]: 49
Service Factor SEW-FB: 1.00 / 1,25
Mounting Position: M0A, Universal Mounting Posit
Lubricant / -Volume [L]: SEW PG 460 Synth.Oil / 0,40
Gear Unit: WA30
Hollow Shaft: 20mm
Design: Hollow Shaft
Motor: DRN80M4
Motor Power [kW]: 0.75
Cyclic Duration Factor: S1
Multi Range-Voltage 50Hz [V]: 220-230 Delta / 380-400 Star
Rated Current [A]: 3.05 / 1.75
Multi Range-Voltage 60Hz [V]: 254-266 Delta / 440-460 Star
Rated Current [A]: 2,70 / 1,56
Cos Phi: 0,74 / 0,70
Thermal Cl.[°C]/Enclosure [IP]: 130(B) / 54
Service Factor Motor: 1.0
International Efficiency Class: IE3
Efficiency 50Hz at 50/75/100% Pn [%]: 80,7 / 82,9 / 82,9
Efficiency 60Hz at 50/75/100% Pn [%]: 82,0 / 84,9 / 85,5
Design Specification: Europe (CE)/USA (UR) /Canada (CSA)
Terminal Box: Terminal Box Lower Part Made of Aluminum with Tapped Hole 1xM25, 1xM16
CT Speed Range: 300-1800RPM
Weight [kg]: 16.3
