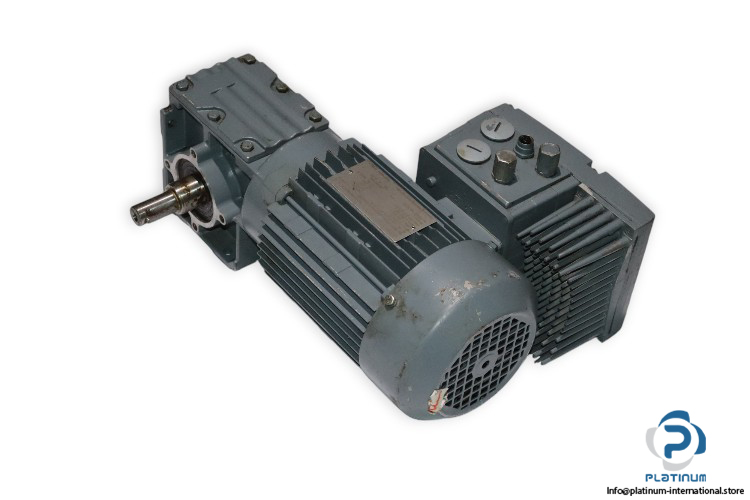

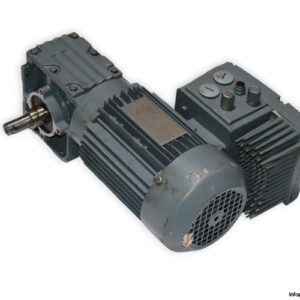

SEW WF30 DT80K4/MM05/BW1/RC1A/AZSK Spiroplan Gearmotor
Used
In stock1 unitReady to ship
SEW SPIROPLAN Gearmotor WF30 DT80K4/MM05/BW1/RC1A/AZSK with MOVIMOT MM05C-503-30 Inverter Drive “ 0.11/0.55 kW, 380-500V AC, IP54, precision motor control.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

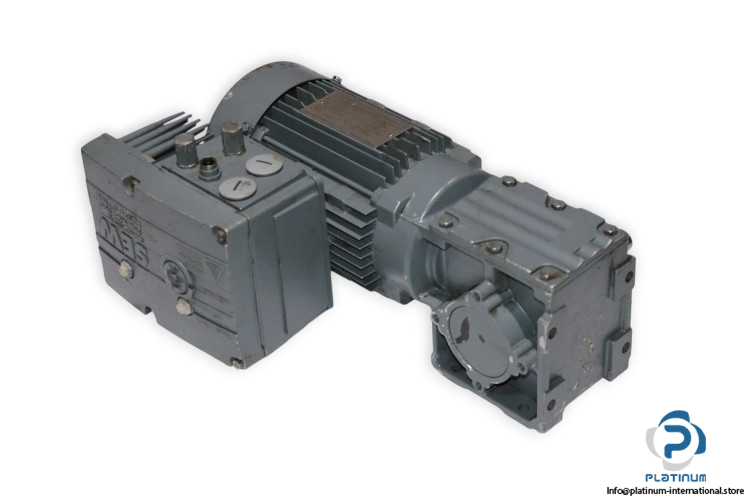

SEW SPIROPLAN Gearmotor WF30 DT80K4/MM05/BW1/RC1A/AZSK with MOVIMOT Inverter Drive
The SEW SPIROPLAN Gearmotor WF30 DT80K4/MM05/BW1/RC1A/AZSK is a high-efficiency gearmotor designed for precision motion control applications. Featuring a compact design, high torque transmission, and reliable performance, this gearmotor is ideal for industrial automation and material handling systems.

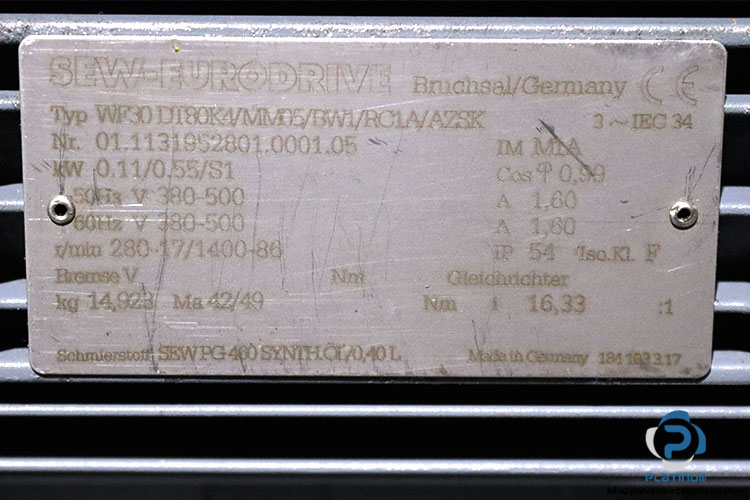

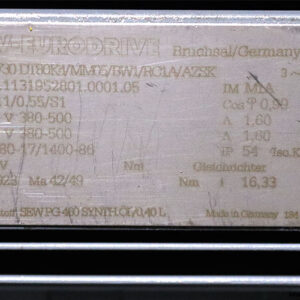

Gearmotor Specifications:
- Manufacturer: SEW
- Type: SPIROPLAN Gearmotor
- Model: WF30 DT80K4/MM05/BW1/RC1A/AZSK
- Part No.: 01.1131952801.0001.05
- Gear Unit: WF30
- Speed [r/min]: 280 to 17 / 1400 to 86
- Total Ratio: 16.33
- Mounting Position: M1A
- Power Factor (Cos φ): 0.99
- Motor Power: 0.11 / 0.55 kW
- Cyclic Duration Factor: S1
- Multi-Range Voltage (50Hz): 380 to 500 V
- Multi-Range Voltage (60Hz): 380 to 500 V
- Rated Main Current (MM): 1.60 A
- Rated Output Current (MM): 1.60 A
- Thermal Class / Enclosure: (F) / IP54

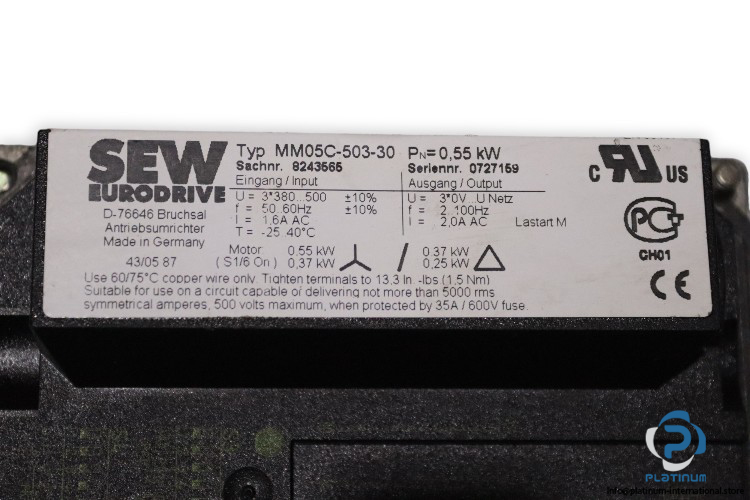

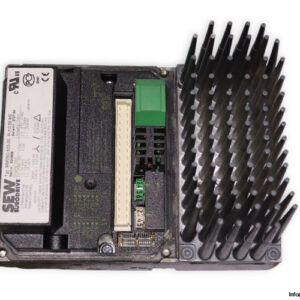

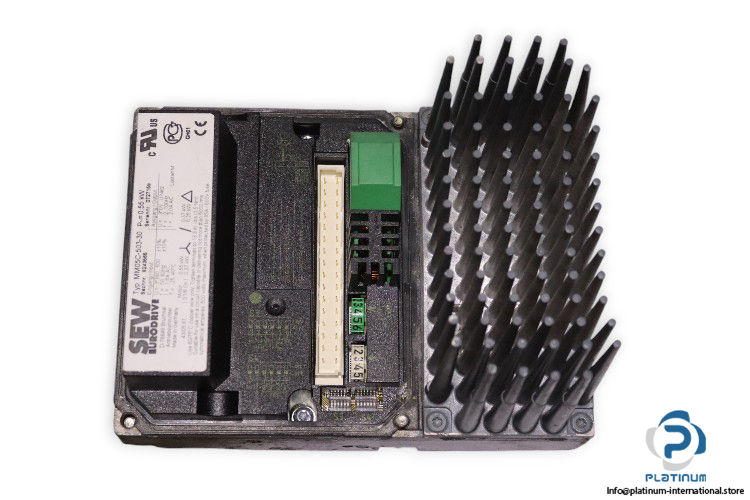

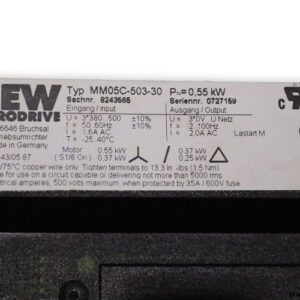

Attached SEW MM05C-503-30 MOVIMOT Inverter Drive Specifications:
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.6 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 2 A
- Frequency Range: 2 to 100 Hz
The SEW WF30 Gearmotor with MOVIMOT Inverter Drive is engineered for seamless integration into automation systems, ensuring high efficiency, smooth operation, and precision motor control.
