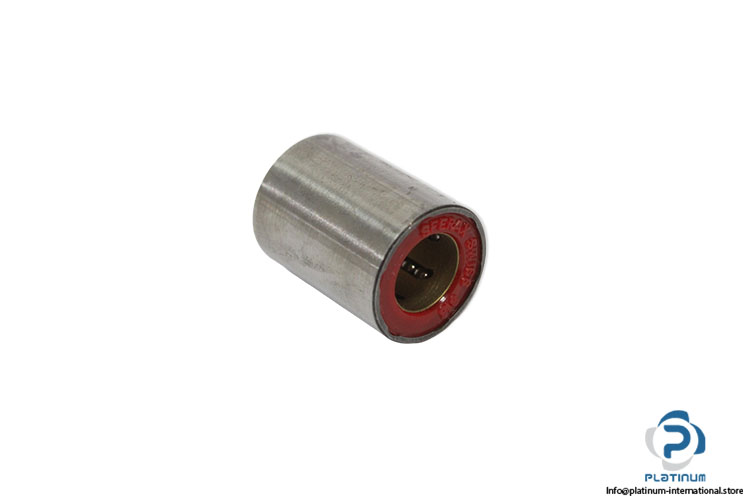

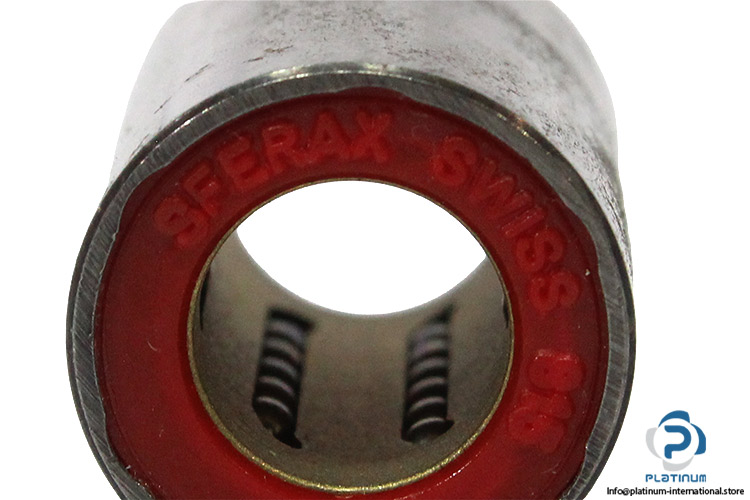

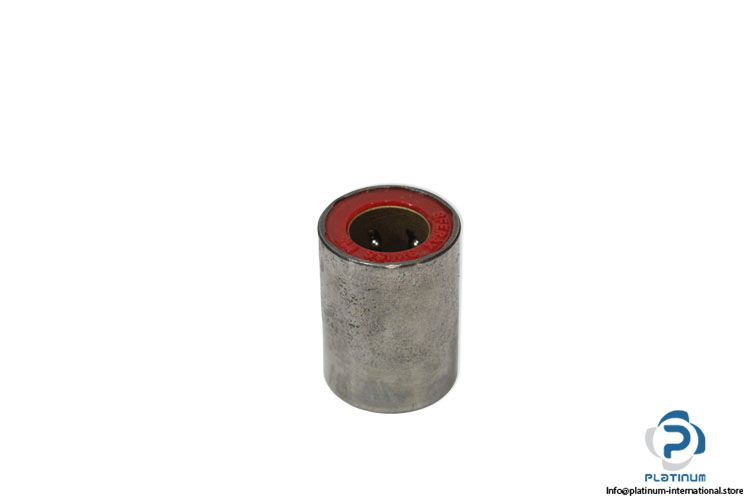

Sferax 815 Linear Ball Bearing
New
In stock3 unitsReady to ship
Linear Ball Bearing SFERAX 815 precision linear ball bearing with an 8 mm inner diameter, 15 mm outer diameter, 20 mm length, and four ball tracks. Designed for smooth and accurate linear motion in industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Under roller diameter d | 8 mm |
| Outer diameter D | 15 mm |
| Length | 20 mm |
| Tolerance Inner diameter | 0/+20 µm |
| Tolerance outer diameter | 0/-12 µm |
| Tolerance length | 0/-350 µm |
| Max. eccentricity | 15 µm |
| Recommended tolerance on the shaft | h6 |
| Dynamic load capacity | 297 N |
| Static load capacity | 420 N |
| Dynamic factor Y | 0.00303 |
| Diameter balls b | 2.000 mm |
| Cage material | DIN MS60Pb (17660) |
| Housing material | DIN 100Cr6 (1.3505) |
| Number of ball tracks | 4 |
| Operating temperature | -30 / +200°C |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1099910 |
| Weight | 0,01 |
