Sick DS60-P41311 MID Range Distance Sensor

Manufacturer: SICK

Type: MID RANGE DISTANCE SENSOR

Model: DS60-P41311

Part No.: 1016689

Supply voltage: 18 … 30 V DC

Power consumption (without load): ≤ 3 W

Output current: ≤ 100 mA

Ripple: ≤  5 V_pp

Measuring range: 80 mm … 6,000 mm, 90 % remission

80 mm … 5,000 mm, 18 % remission

80 mm … 2,600 mm, 6 % remission

Switching frequency: 10 Hz

Response time: 50 ms

Light source, type: Laser, Infrared

Light spot size:  12 mm x 12 mm (at 6 m)

Average laser service life: 50,000 h

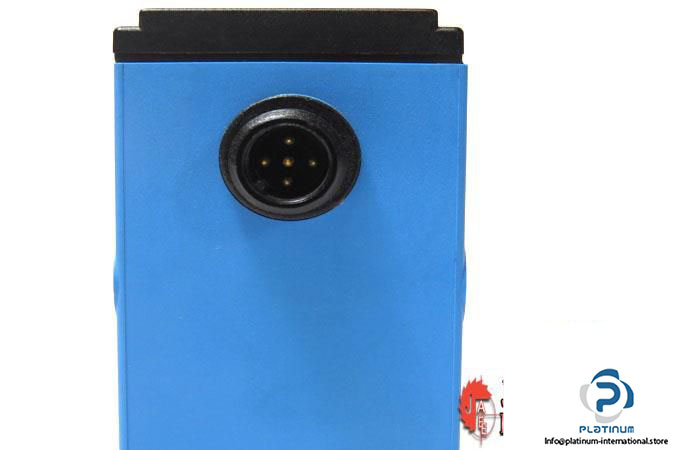

Connection type: Male connector, M12, 5-pin

Additional function: Invertable switching output

Weight: 202 g

Ambient operating temperature:  -25… +55 °C

Enclosure rating: IP67

Condition: New
