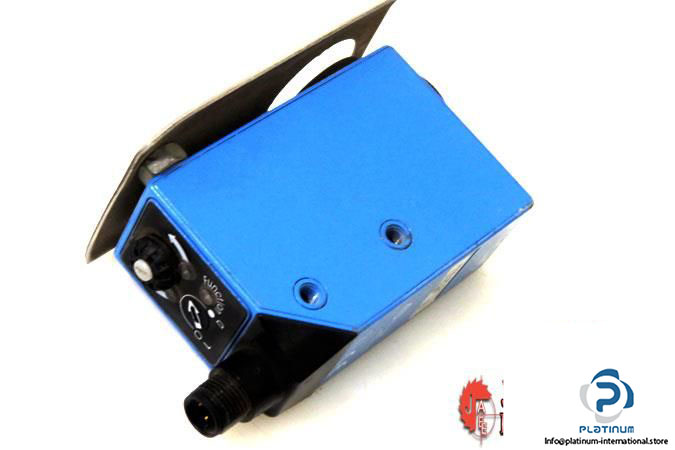

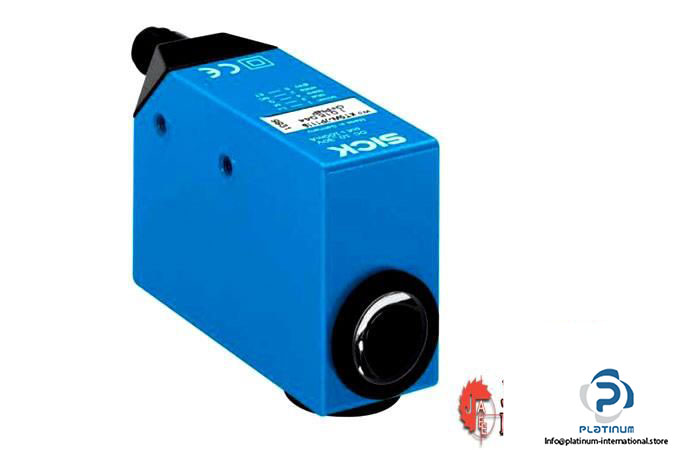

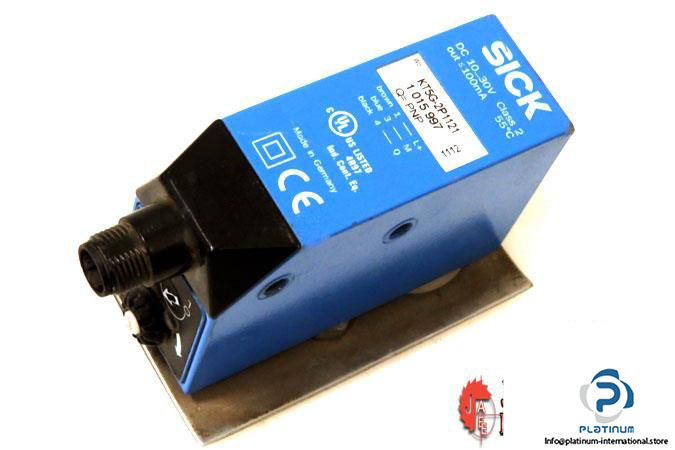

Sick KT5G-2P1121 Contrast Sensor
Manufacturer: SICK
Type: Contrast Sensor
Model: KT5G-2P1121
Part No.: 1015997
Sensing distance: 10 mm
Supply voltage: 10 … 30 V DC
Ripple: 5 Vpp
Switching frequency: 10 kHz
Response time: 50 µs
Output type: PNP
Output current Imax.: 100 mA
Connection type: Male connector M12, 4-pin
Dimensions (W x H x D): 30.4 mm x 53 mm x 80 mm
Max. Operation Temperature: 55°C
