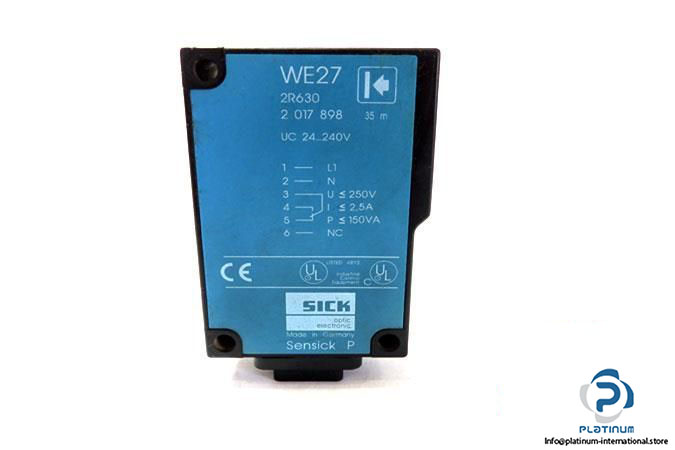

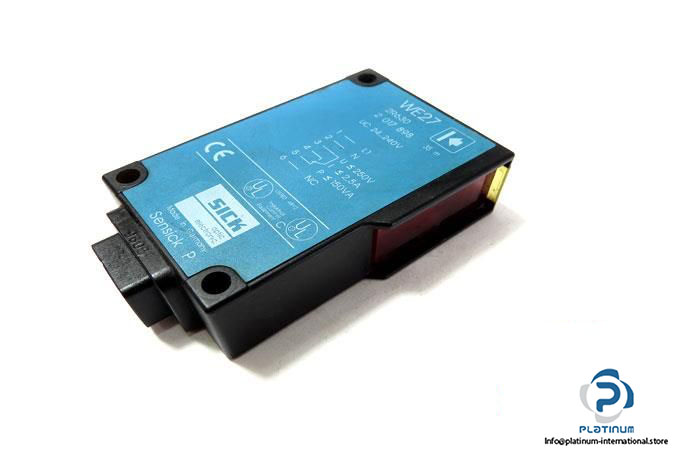

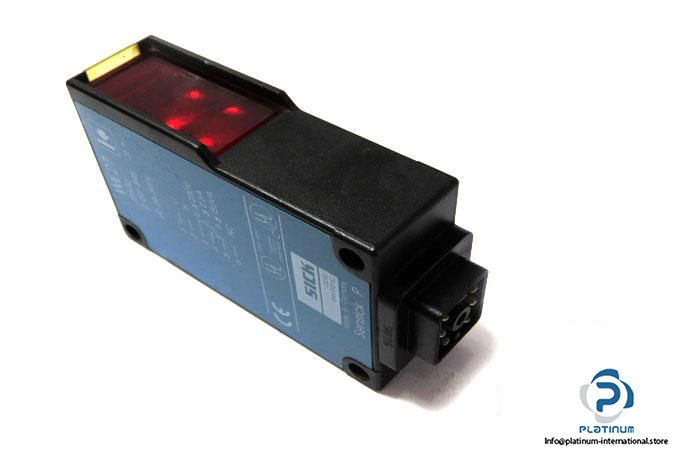

Sick WE27-2R630 Through-Beam Photoelectric Sensor

Manufacturer: SICK

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR

Part No.: 2017898

Receiver Model: WE27-2R630

Configured with sender model: WS27-2U630

Supply voltage: 24…240 V AC/DC

Current consumption, receiver (without load) : 2 VA

Scanning range max.: 0 … 35 m

Delay range: 0.5 … 10 s

Response time: ≤ 6 ms

Switching frequency: 10/s

Switching output: Provide suitable spark suppression for inductive and capacitive loads, isolated

Switching mode: Light/dark switching

Angle of dispersion: Approx. 3°

Light source: LED, red light

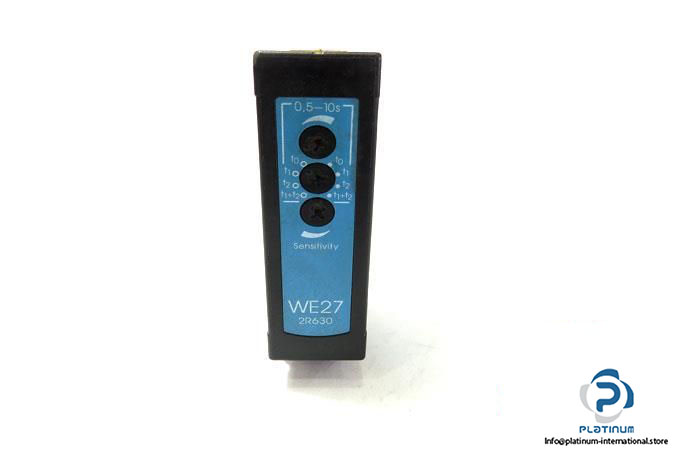

Adjustment: Potentiometer

Weight: approx. 100g

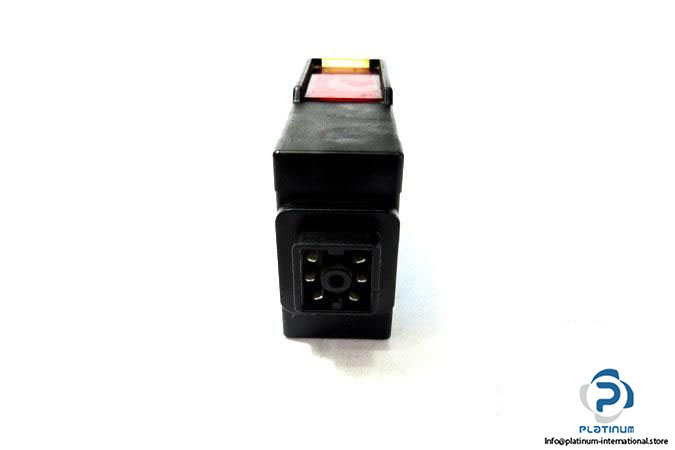

Connection type Connector Q6, 6-pin

Enclosure rating: IP65

Ambient operating temperature: –40 … +60 °C

Dimensions (W X H X D): 24.6 X 80 X 53.5 mm

Condition: Used
