Sick WL 140-2P330 Photoelectric Sensor
New
In stock2 unitsReady to ship

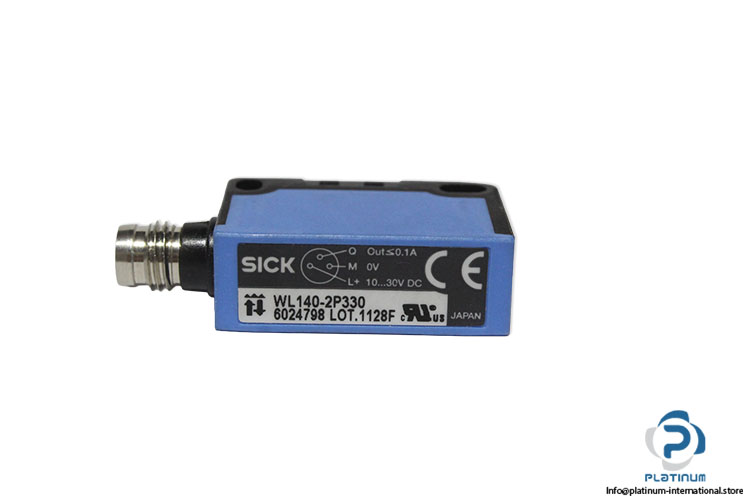

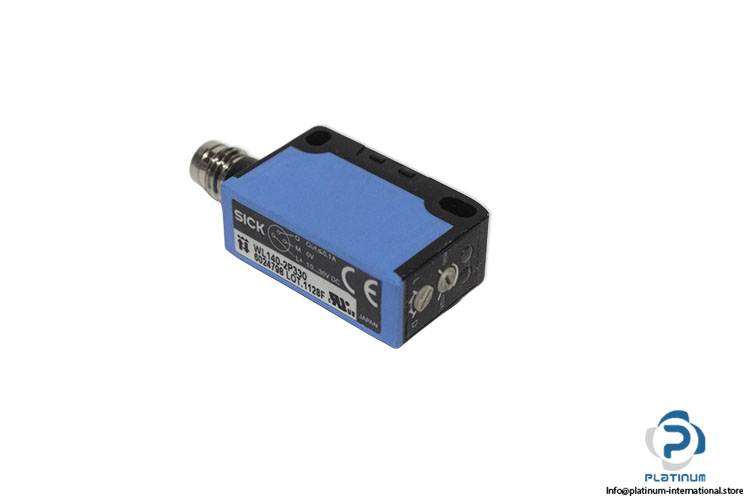

Photoelectric Sensor The SICK WL140-2P330 is a compact retro-reflective photoelectric sensor with PNP output, visible red LED light, and IP67 protection for reliable industrial object detection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 6 024 798 |
| Ref No | 1128F 14137, 1128F |
| Functional principle | Photoelectric retro-reflective sensor Dimensions (W x H x D): 11 mm x 31 mm x 20 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0.01 m ... 6.5 m |
| Sensing range | 0.01 m ... 5 m |
| Type of light | Visible red light |
| Light source | LED |
| Wave length | 680 nm |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA |
| Switching output | PNP |
| Switching mode | Light/dark switching |

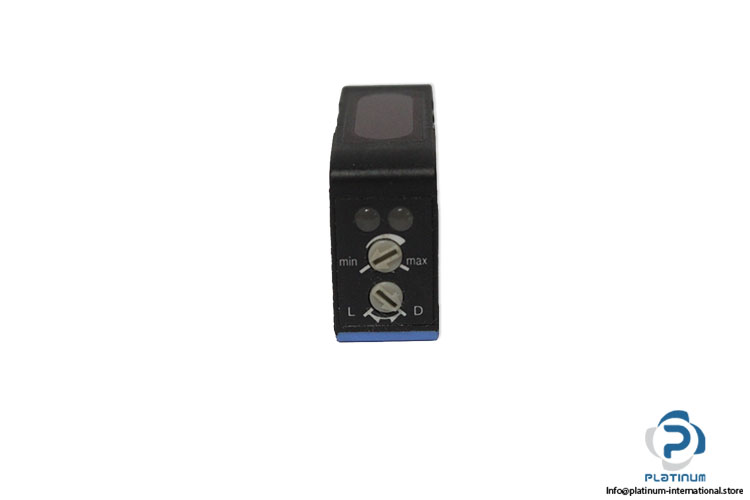

| Switching mode selector | Selectable via light/dark rotary switch |
| Response time | 0.5 ms |

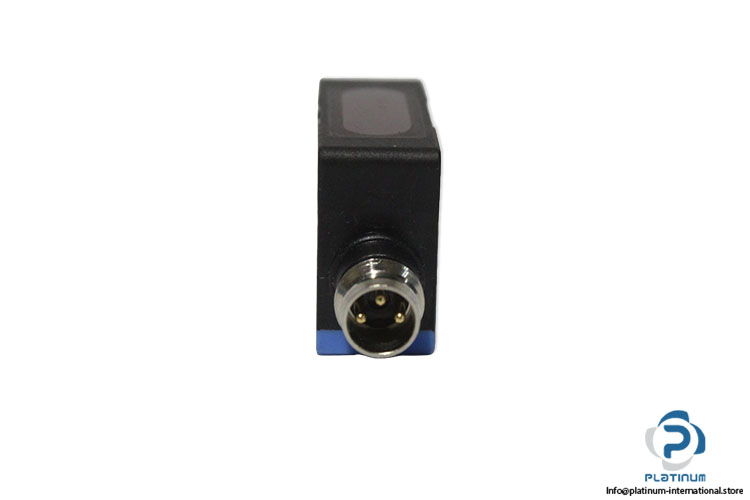

| Connection type Connector | M8, 3-pin |
| Housing material | Plastic, PBT |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100978 |
| Weight | 0,05 |
