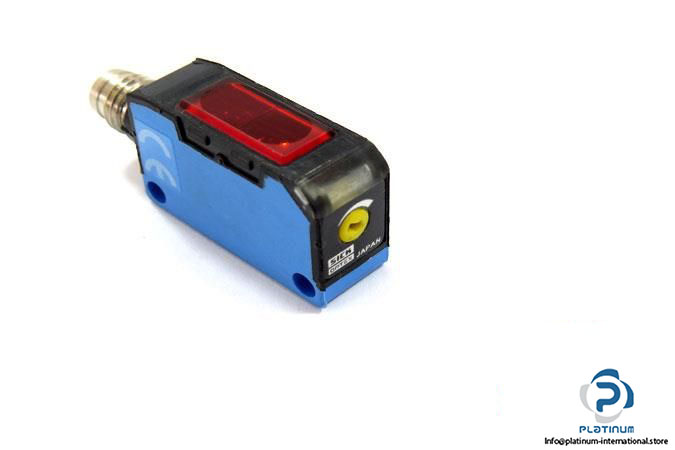

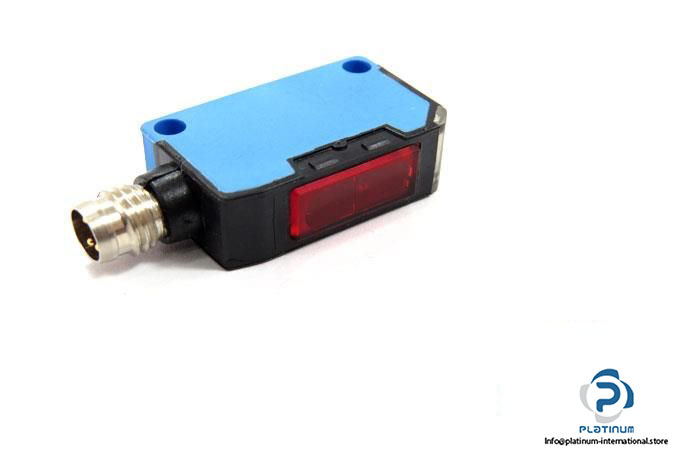

Sick WL150-P430 Photoelectric Retro-Reflective Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC RETRO-REFLECTIVE SENSOR, DUAL LENS

Model: WL150-P430

Part No.: 6011038

Sensing range: 0.01 m … 2 m

Sensing range (PL80A): 0 m … 2.4 m

Response time: ≤ 0.5 ms

Time delay before availability: ≤ 100 ms

Supply voltage: 10 … 30 V DC

Power consumption (without load): 20 mA

Continuous current I_max: ≤ 100 mA

Switching output: PNP

Switching frequency: 1000 Hz

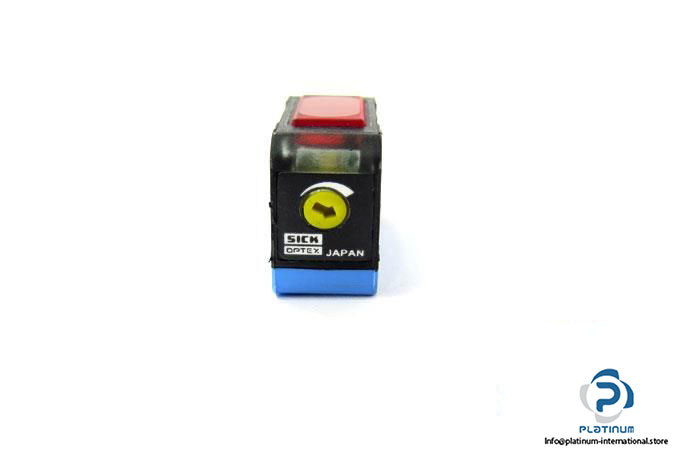

Adjustment: Potentiometer, 270°

Light source: LED

Angle of dispersion: 6°

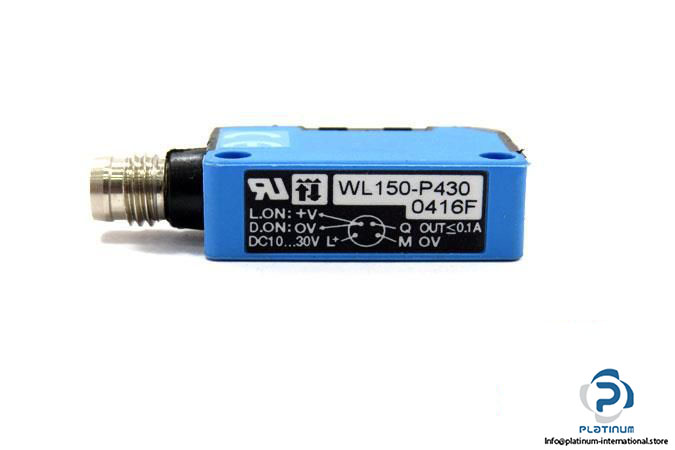

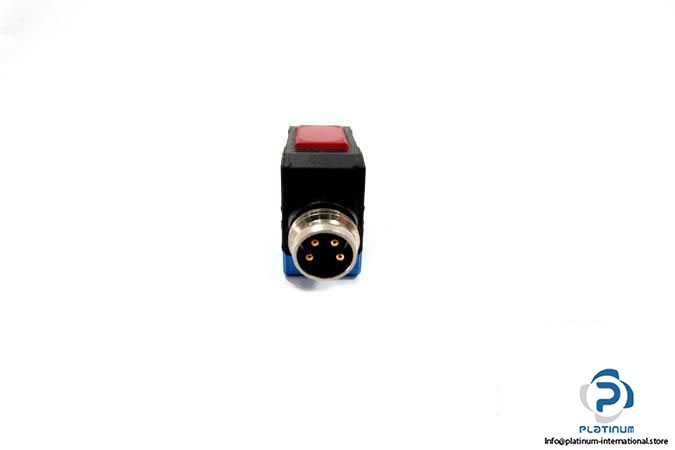

Connection type: M8 Male connector, 4 pin

Protection Class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 55°C

Material: Plastic, ABS

Weight: 7 g

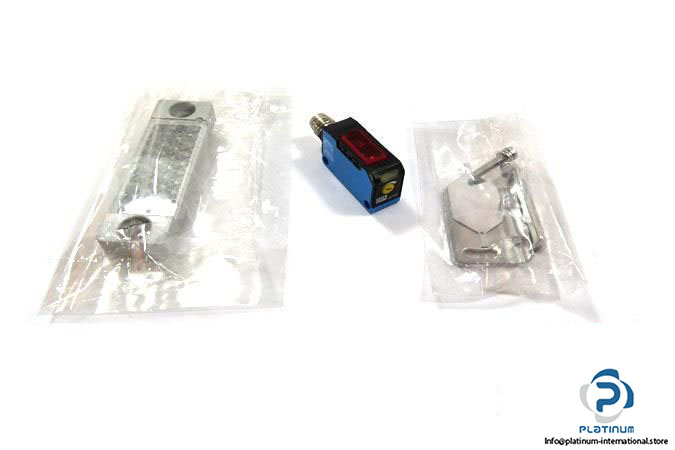

Items included: Reflector PL20A, Mounting brackets BEF-W150-A

Condition: New
