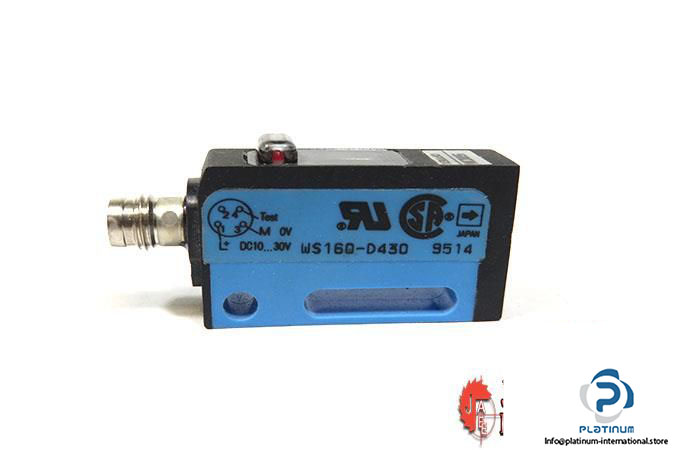

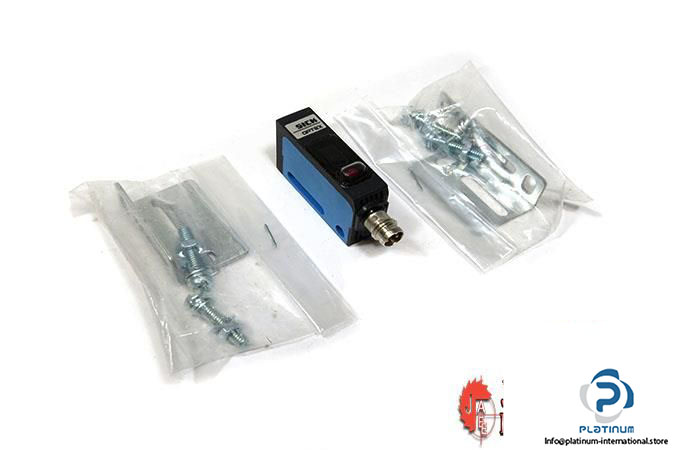

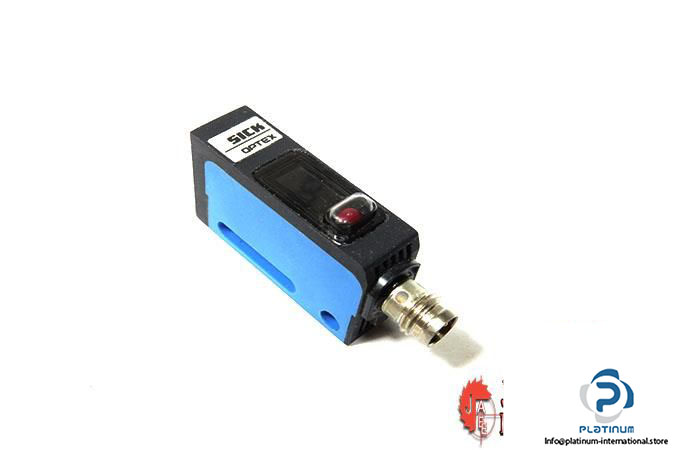

Sick WS160-D430 Through-Beam Photoelectric Sensor

Manufacturer: SICK

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR

Model: WS160-D430

Configured with: WE160-P430

Supply Voltage: 10 … 30 V DC

Scanning range max.: 0 … 8.5 m

Operating range: 0 … 7 m

Operating range with filter: 0 … 1m

Angle of dispersion: approx. 3.3

Light source, Type: LED, Visible red light

Light spot diameter: approx. 400 mm at 7 m

Ripple: ± 10%

Current consumption: sender ≤ 20 mA

Switching outputs: PNP

Output current: max. 100 mA

Response time/max. switching freq: ≤ 1.5 ms / 300/s

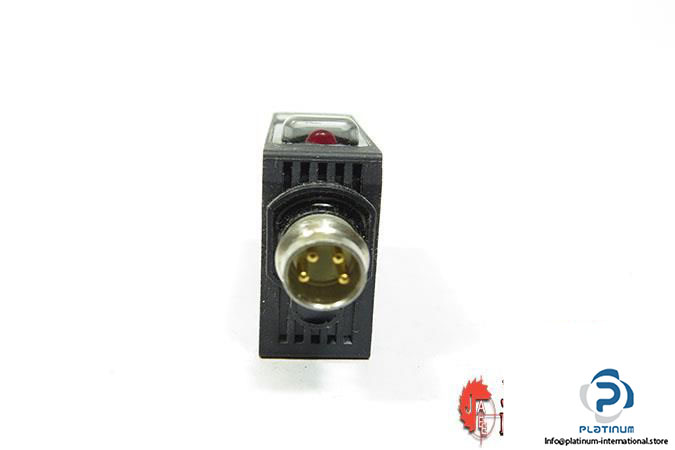

Connection type: Plug, 4-pin, M8

Ambient Operating temperature: – 25 °C . . . + 55 °C

Enclosure rating: IP 67

Weight: approx. 20 g
