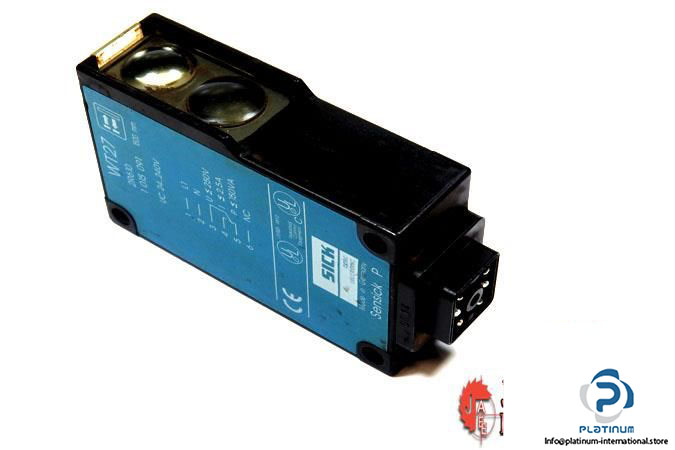

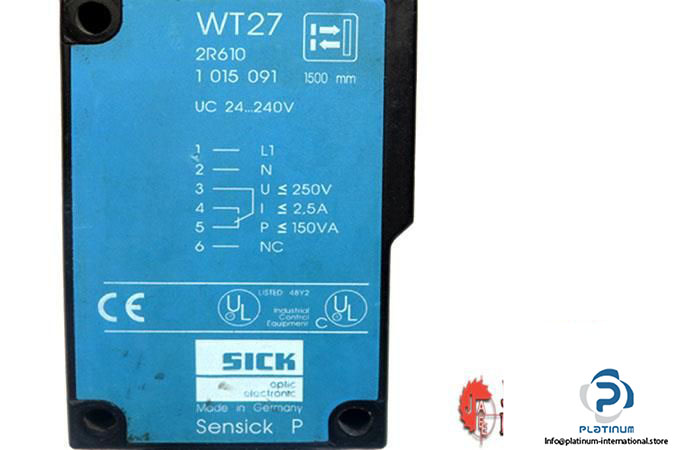

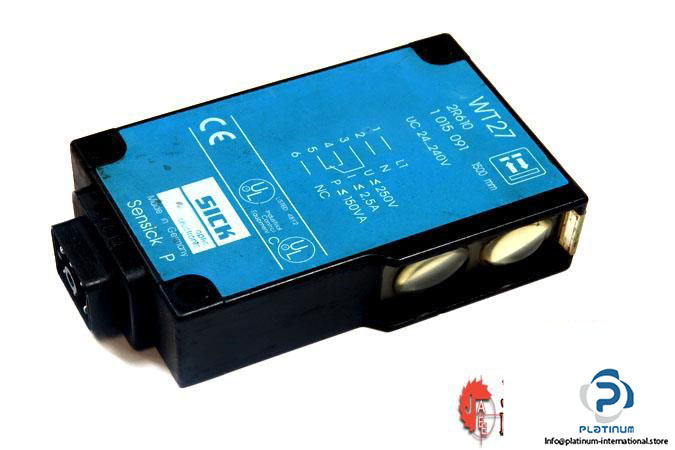

Sick WT27-2R610 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR, BACKGROUND SUPPRESSION

Model: WT27-2R610

Part No.: 1015091

Supply voltage: 24 V AC/DC … 240 V AC/DC

Power consumption: < 2 VA
Switching current (switching voltage): 4 A (240 V AC)

0.2 A (120 V DC)

4 A (24 V DC)

Switching output: Relay

Output function: Change over contacts

Switching frequency: 10 Hz

Switching mode: Light/dark switching

Sensing range max.: 100 … 1,500 mm

Response time (with resistive load): < 6 ms
Light spot size (distance): Ø 25 mm (800 mm)

Light source, type: LED, Infrared light

Adjustment: Potentiometer

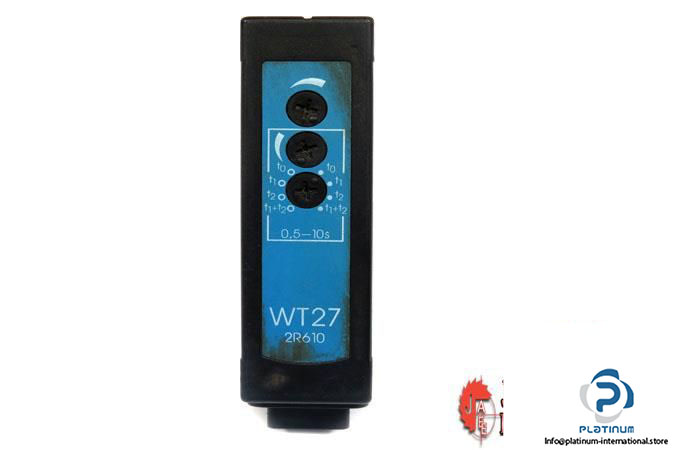

Delay time: Adjustable via time delay selector switch, 0.5 s, 10 s

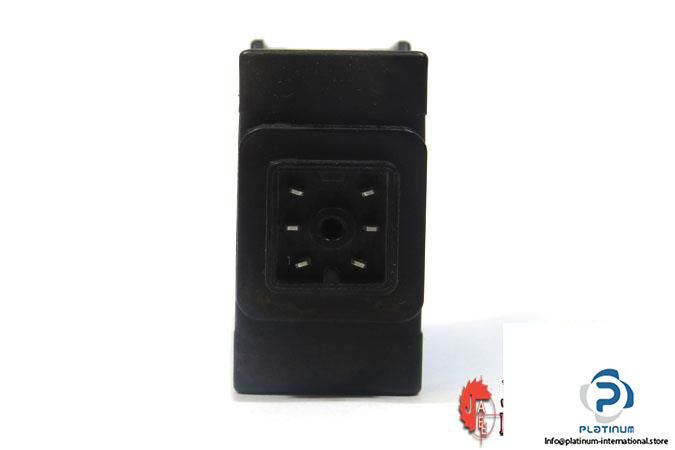

Connection type: Connector Q6, 6-pin, AC/UC-coding

Ambient operating temperature: -40 … +60 °C

Enclosure rating: IP65
